Dewenwils HOSL08A - Connecting the Cable to the Transformer; Placing Your Fixtures and Routing the Cable

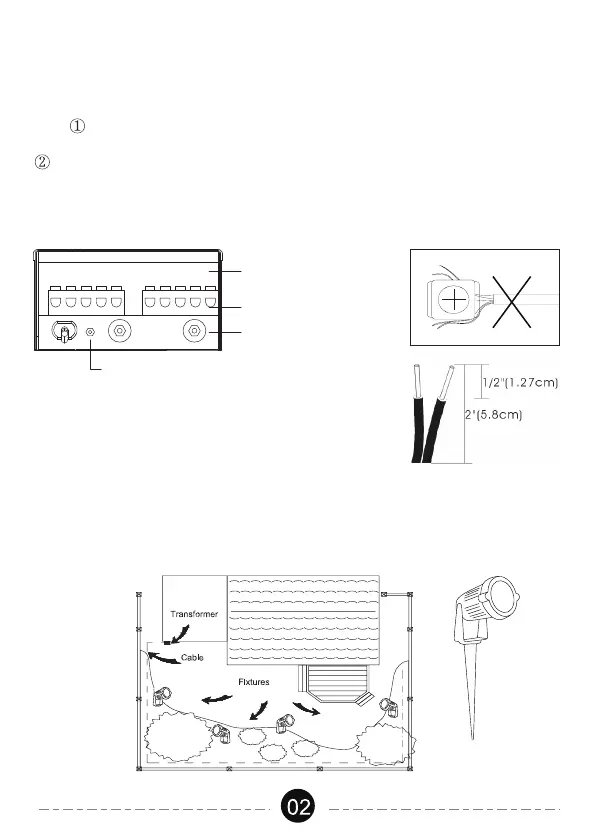

Lay the transformer on a flat, stable surface and use screwdriver to connect
the stripped ends of the cable under the terminal clamping plate.
Tips: Wire under each terminal pressure plate and tighten screw securely.
Make sure wire insulation clears pressure plate.
As the following image shows, there are 3 group wiring ports(COM/12V/
14V for each group), you can choose any group of them to connect your cable.
For each group, there are 2 terminal output ends- 12V/14V, select the
appropriate terminal according to your lamp voltage.
2. Connecting the cable to the Transformer
Lay your fixtures (not included) to your desired location. Be sure they do not
exceed the 600-watt rating of the transformer.Each Zone does not exceed
300w. Coil the rest of the cable after the last fixture. Transformer Cable
Fixtures.
3. Placing Your Fixtures and Routing the cable
Note: Gently pull on the landscape
cable to verify if the connection is strong.
300VA Max
COM 12V 13V 14V 15V
300VA Max
COM 12V 13V 14V 15V
Total bulb’s watt age doesn’t
exceed max wattage
Tighten screws s ecurely
Connected Ground
RESET SWITCH-Press to reset
transformer if light go out
