Dexin NDS3536S - Principle Chart; Appearance and Description

-16
Dexin Digital Technology Corp. Ltd Page 3 / 26
NDS3536S Encoder Modulator ISDB-T User Manual
Stream output
1 ASI output as mirror of one of RF output carriers(Optional)
16 MPTS output over UDP and RTP/RTSP as mirror of 16 ISDB-T carriers
1*1000M Base-T Ethernet interface, GE port
System function
Network management (WEB)
Chinese and English language
Ethernet software upgrade
Miscellaneous
Dimension (W×L×H)
482mm×328mm×44mm
Environment
0~45℃(work)；-20~80℃（Storage）
Power requirements
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

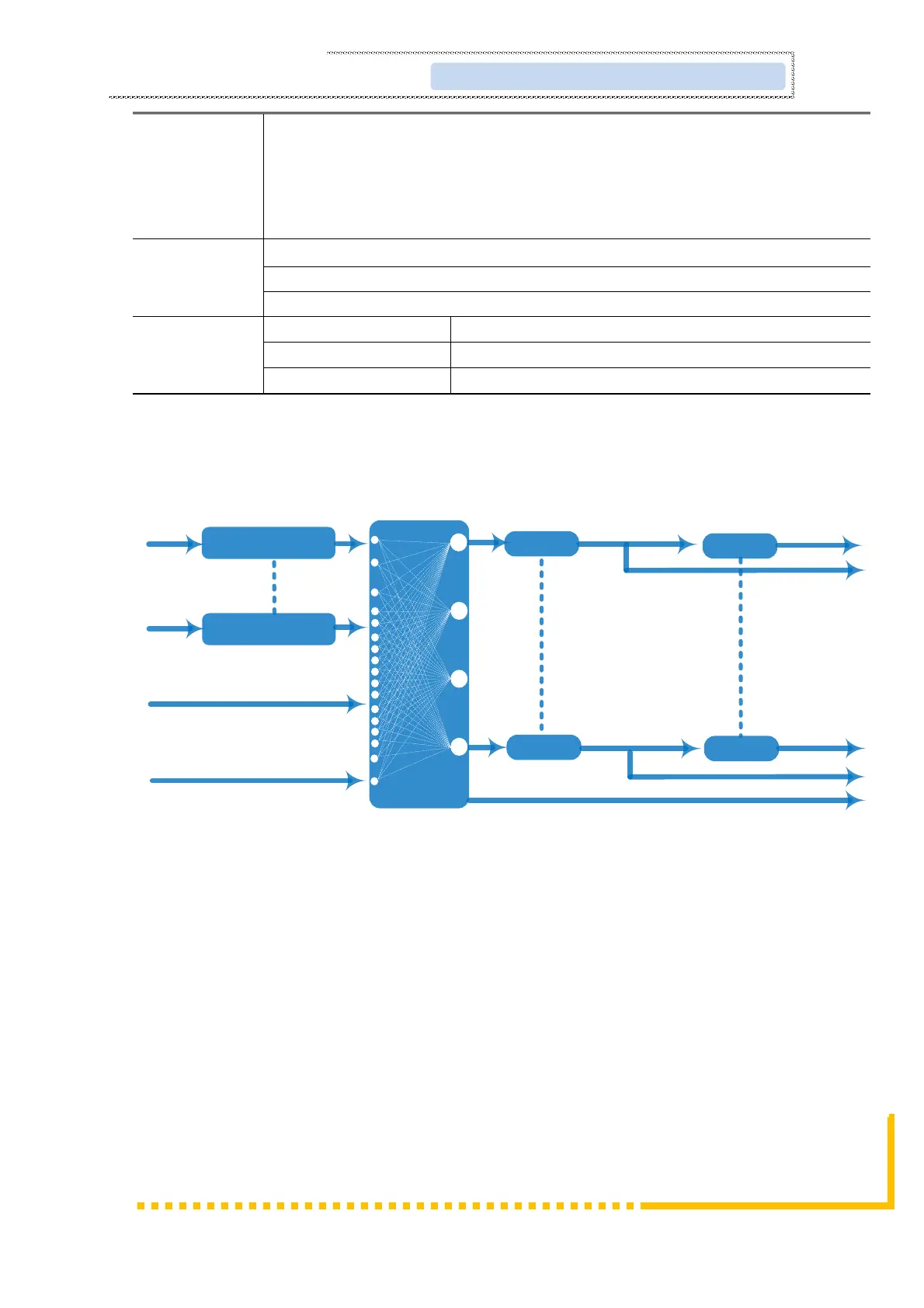

1.4 Principle Chart
Encoding
Encoding
HDMI #1
HDMI #N
MUX 1#
MOD 1#
IP 1
Carrier 1
MUX 16#
1 ASI input
IP1-128
MOD 16#
IP 16
Carrier 16
1 ASI out as mirror of one of RF carrier outputs（optional）
1.5 Appearance and Description
Front and Rear Panel Illustration
