Chapter 1 Product Overview
1.1 Outline
NDS3306I 6 in 1 ISDB-T modulator is the latest generational Mux-modulating device
developed by DEXIN. It has 6 multiplexing channels and 6 (ISDB-Tb) modulating
channels, and supports maximum 192 IP input through the 3 GE ports and 6
non-adjacent carriers (50MHz~960MHz) output through the RF output interface. The
device is also characterized with high integrated level, high performance and low cost.
This is very adaptable to newly generation DTV broadcasting system.
1.2 Key Features
 3 GE ports (max 192 IP in):
Data1 & Data2 bi-directional ports, max 192 IP in, 6 IP out
Data port (located on front panel), max 128 IP in
 Max 840Mbps for each GE input
 Supports accurate PCR adjusting
 Supports CA filtering, PID remapping and PSI/SI editing
 Supports up to 180 PIDS remapping per channel
 Support 6 IP output through Data1 & Data2 over UDP/RTP/RTSP
 6 non-adjacent carriers output, compliant to ISDB-Tb (ARIB STD-B31)
 Support Web-based Network management

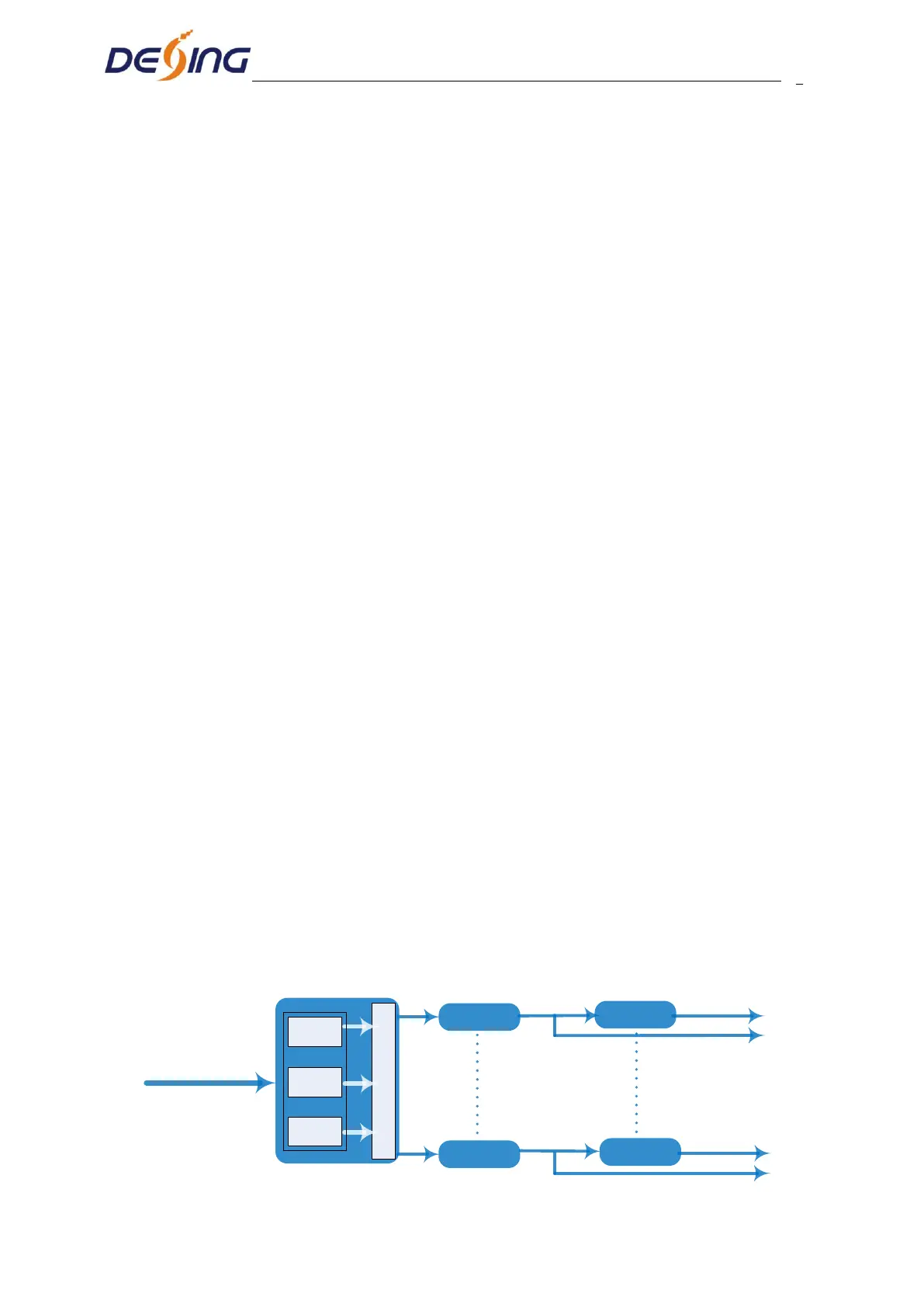

1.3 Inner Structure
MUX 1#
192 IP
MPTS or SPTS
ISDB 1#
IP 1
Carrier 1
MUX 6#
ISDB 6#
Carrier 6
IP 6
Data1
Data2
Data
(front panel)
