Dexing NDS3306I - Specifications

NDS3306I 6 in 1 ISDB-T Modulator User Manual
2

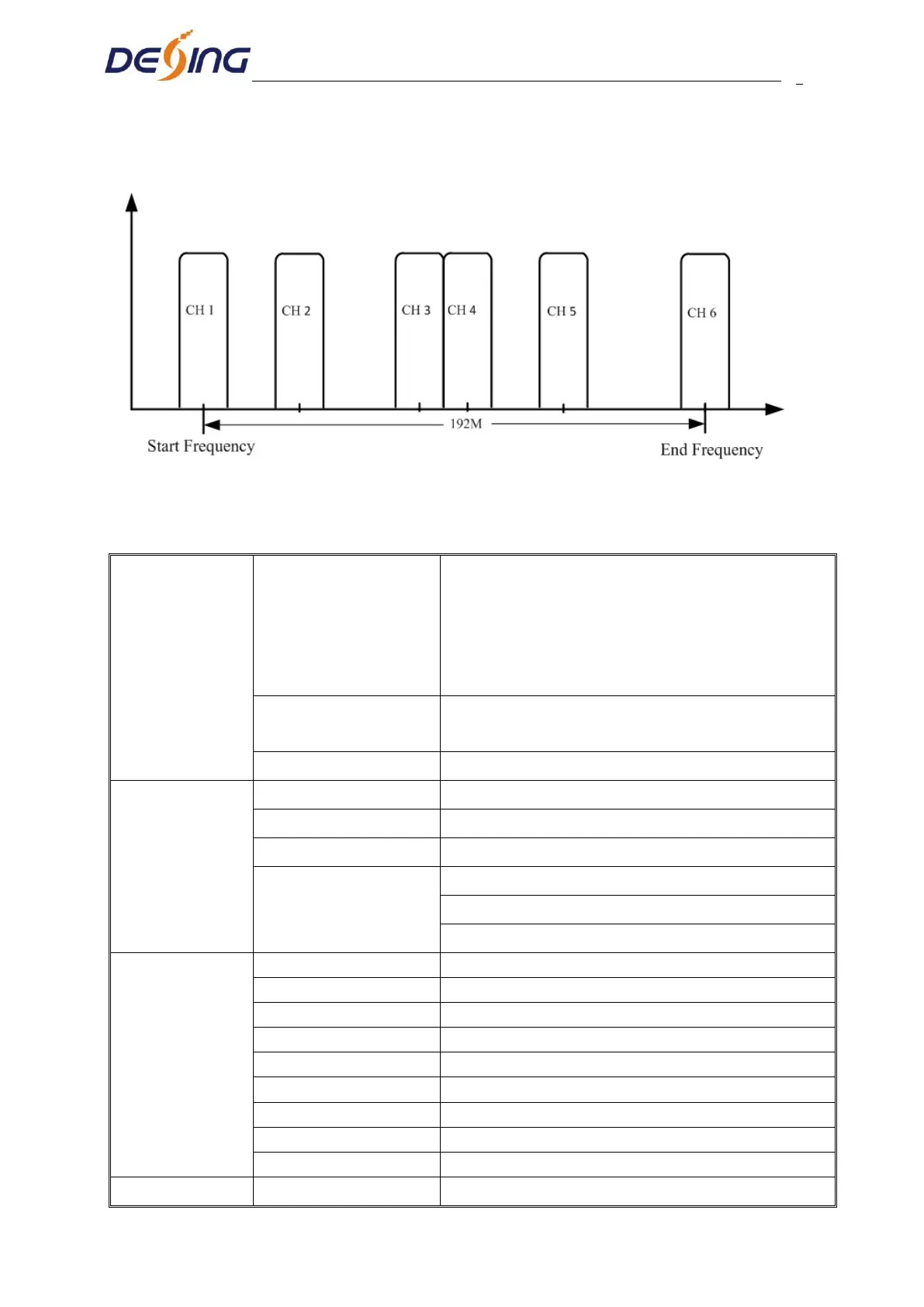

1.4 Carrier Setting Illustration
1.5 Specifications
Input
Input
Max 192 IP input through 3 (front-panel Data
port, Data 1 and Data 2) 100/1000M Ethernet Port
(SFP interface optional). Each Data1 or Data 2
port can input max 192 IP, while front-panel Data
port can input max 128 IP
Transport Protocol
TS over UDP/RTP, unicast and multicast, IGMP
V2/V3
Transmission Rate
Max 840Mbps for each GE input
Mux
Input Channel
192
Output Channel
6
Max PIDs
180 per channel
Functions
PID remapping (auto/manually optional)
PCR accurate adjusting
PSI/SI table automatically generating
Modulation
Parameters
Standard
ARIB STD-B31
Bandwidth
6M
Constellation
QPSK, 16QAM, 64QAM
Guard Interval
1/32, 1/16, 1/8, 1/4
Transmission Mode
2K, 4K, 8K
Code rate
1/2, 2/3, 3/4, 5/6, 7/8
MER
≥40dB
RF frequency
50~960MHz, 1KHz step
RF output level
-20dBm~+10dBm(87~117dbµV), 0.1dB stepping
RF Output
Interface
1 F typed output port for 6 carriers, 75Ω
