18
Dryer Installation
All commercial dryer installations must conform with local codes or, in the absence of local codes, with
the latest edition of the National Fuel Gas Code ANSI Z223.1A. Canadian installations must comply with
current Standard CAN/CGA-B149 (.1 or .2) Installation Code for Gas Burning Appliances or Equipment,
and local codes if applicable. Australian installations must meet installation requirements and pipe sizing
requirements of AS/NZA 5601. The appliance, when installed, must be electrically grounded in accordance
with the latest edition of the National Electrical Code, ANSI/NFPA70, or, when installed in Canada, with
Standard CSA C22.1 Canadian Electrical Code Part 1.
To connect the dryer to the supply piping, use a listed connector in compliance with the Standard for Con-
nectors for Gas Appliances, ANSI Z21.24 • CSA 6.10.
Installation Clearances:
This unit may be installed at the following alcove clearances. (millimeters)
1. Left side- 0”
2. Right side- 0” *
3. Back- 18” (457) (Certied for 1” (25) clearance; however, 18” (457) clearance is neces-
sary behind the belt guard to allow servicing and maintenance.)
4. Front- 48” (1220) (to allow use of dryer)
5. Top- Refer to gure labelled “Vertical Clearance Dimensions”.
Certication allows 0” clearance at the top 1” (25) back from the front. However, a
1/4” (6)clearance is required to allow opening the upper service door. A 10” (254)
clearance is required from the top at all other points.
6. Floor- This unit may be installed upon a combustible oor.
*Units may be installed in direct contact with an adjacent dryer, provide
ing allowance is made for opening upper and lower service doors. Do-
not obstruct the ow of combustion and ventilation air. Maintain
minimum of 1” (25) clearance between duct and combustible material.

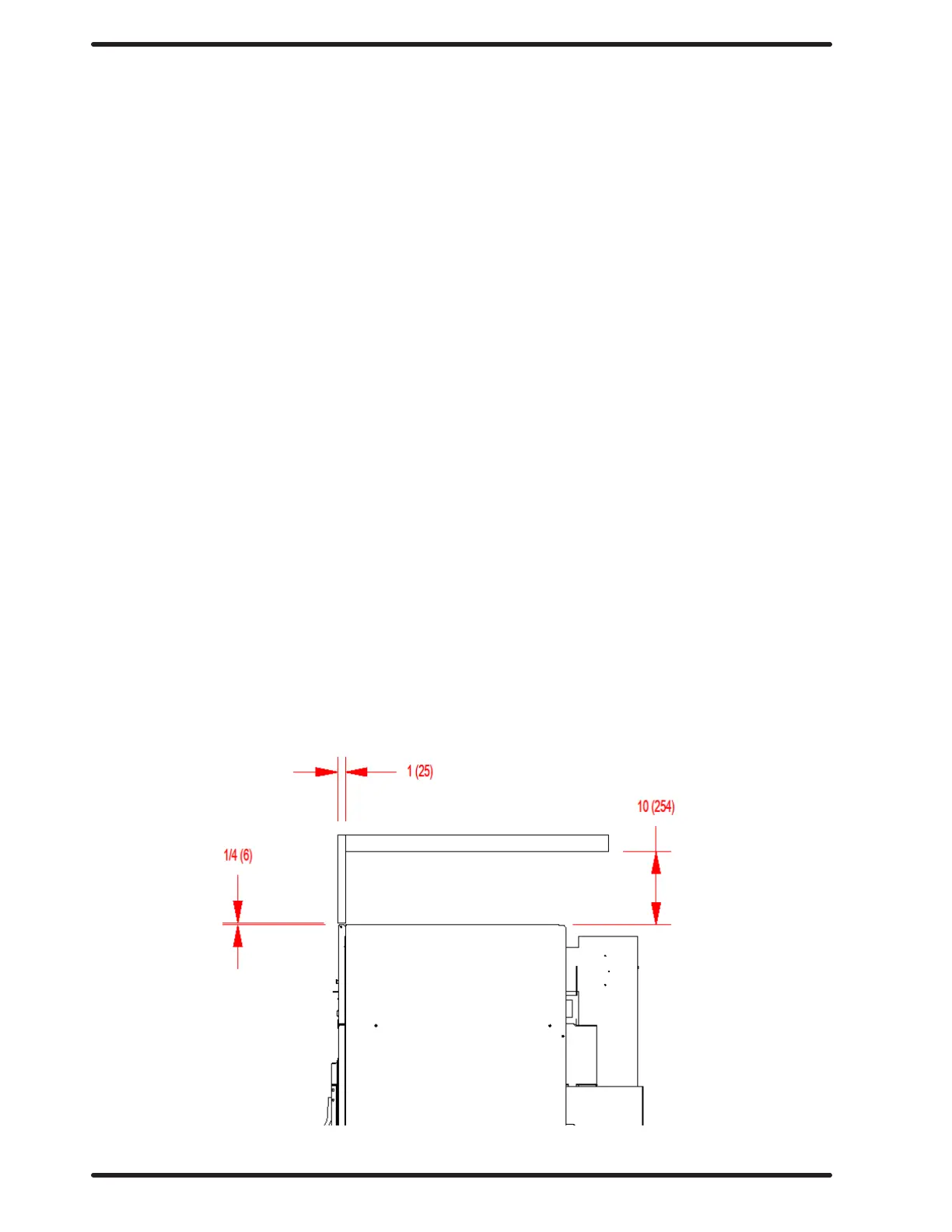

VERTICAL CLEARANCE DIMENSIONS - ALL (30/50/80)
Part # 8533-112-001 7/21
