4

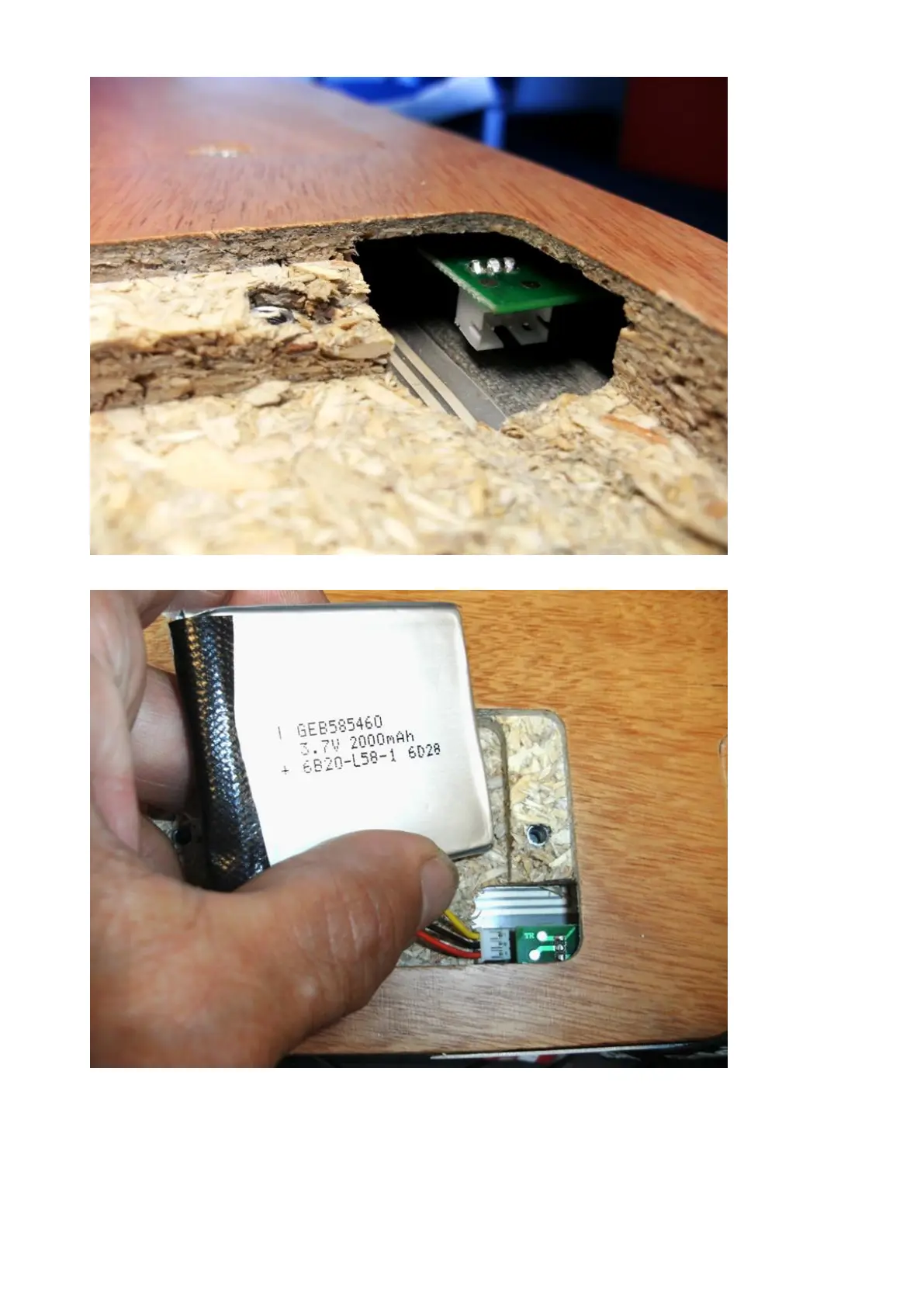

Note that the connector is on the back side of the printed circuit board, you may not see it immediately
Push the connector with the metal parts facing you in the corresponding connector on the back side of the
printed circuit board
