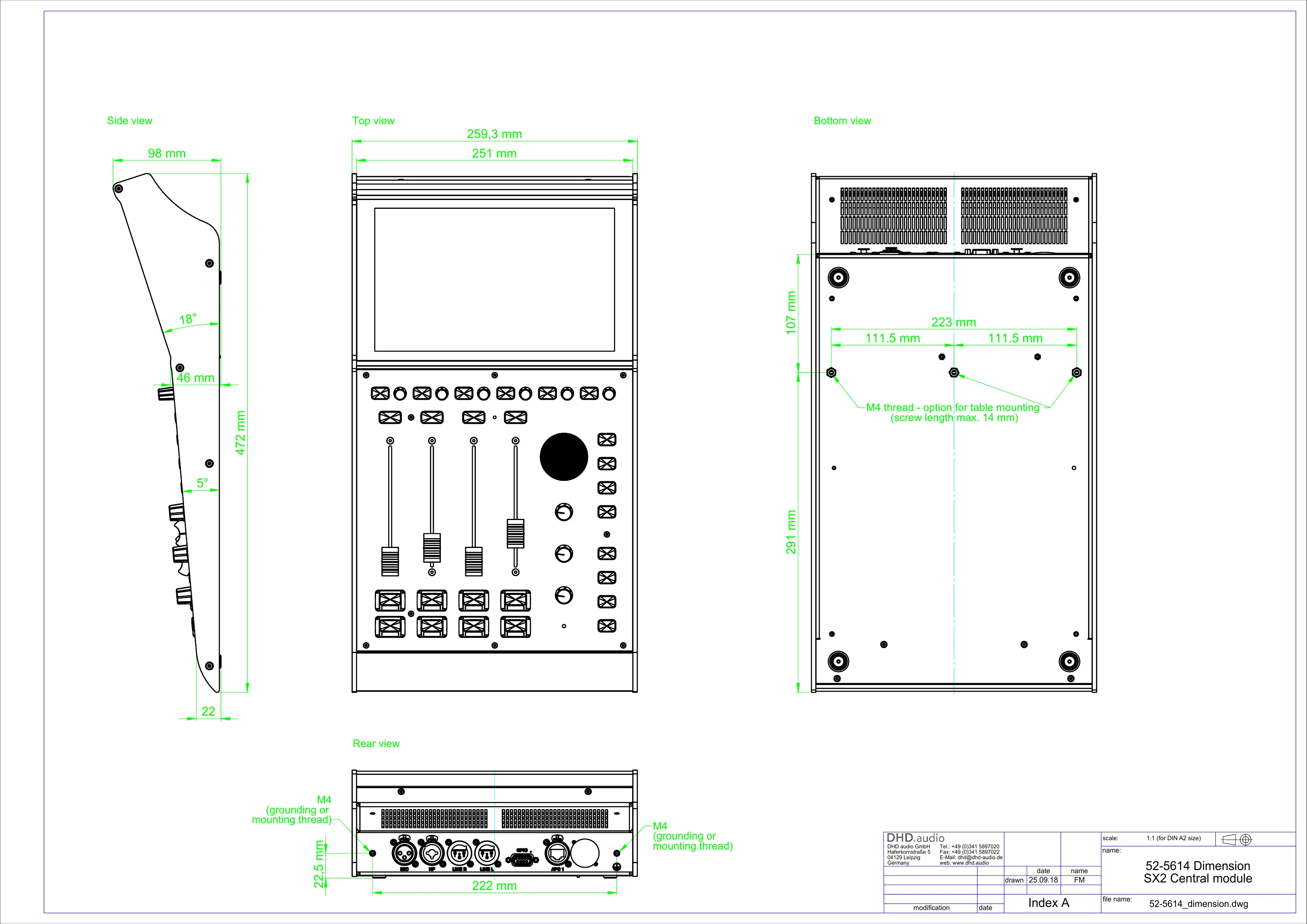

DHD.audio SX2 - SX2 Central Module Dimensions

259,3 mm
251 mm
472 mm
22
98 mm
46 mm
5°
18°
22,5 mm
222 mm
Rear view
M4
(grounding or
mounting thread)
M4
(grounding or
mounting thread)
223 mm
291 mm 107 mm
111.5 mm 111.5 mm
M4 thread - option for table mounting
(screw length max. 14 mm)
Bottom view
Top view
Side view
le name:
date
25.09.18
date
modication
drawn
52-5614 Dimension
SX2 Central module
Index A
FM
name
scale:
1:1 (for DIN A2 size)
52-5614_dimension.dwg
name:
Tel.: +49 (0)341 5897020
Fax: +49 (0)341 5897022
E-Mail: dhd@dhd-audio.de
web: www.dhd.audio
DHD audio GmbH
Haferkornstraße 5
04129 Leipzig
Germany
