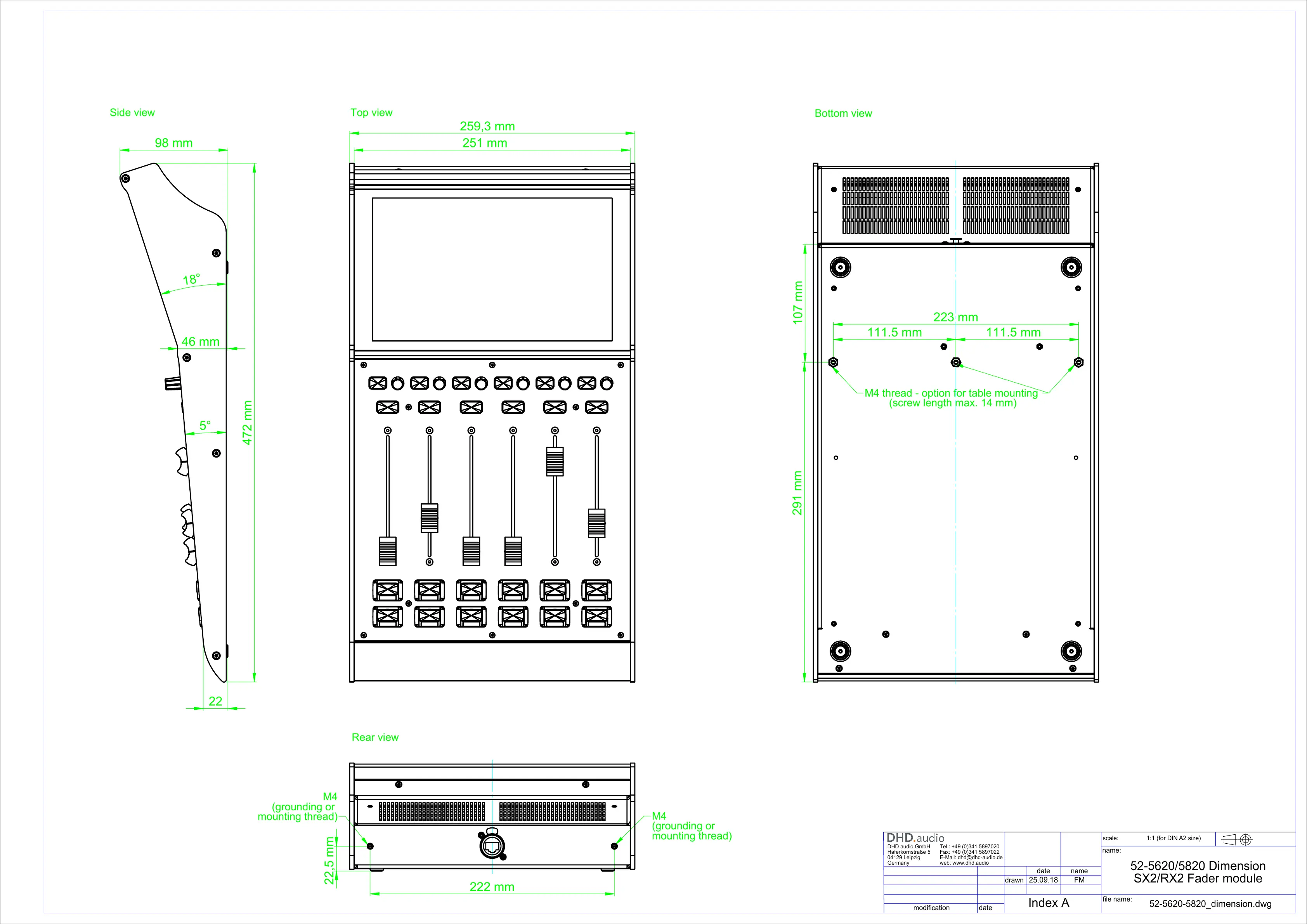

DHD.audio SX2 - SX2;RX2 Fader Module Dimensions

251 mm
259,3 mm
98 mm
18°
46 mm
5°
472 mm
22
Side view
111.5 mm 111.5 mm
223 mm
107 mm
291 mm
M4 thread - option for table mounting
(screw length max. 14 mm)
Bottom view
222 mm
22,5 mm
M4
(grounding or
mounting thread)
M4
(grounding or
mounting thread)
Rear view
Top view
le name:
date
25.09.18
date
modication
drawn
52-5620/5820 Dimension
SX2/RX2 Fader module
Index A
FM
name
scale:
1:1 (for DIN A2 size)
52-5620-5820_dimension.dwg
