6 INSTALLATION DIMENSIONS AND GUIDELINES
6.1 INSTALLATION DIMENSIONS

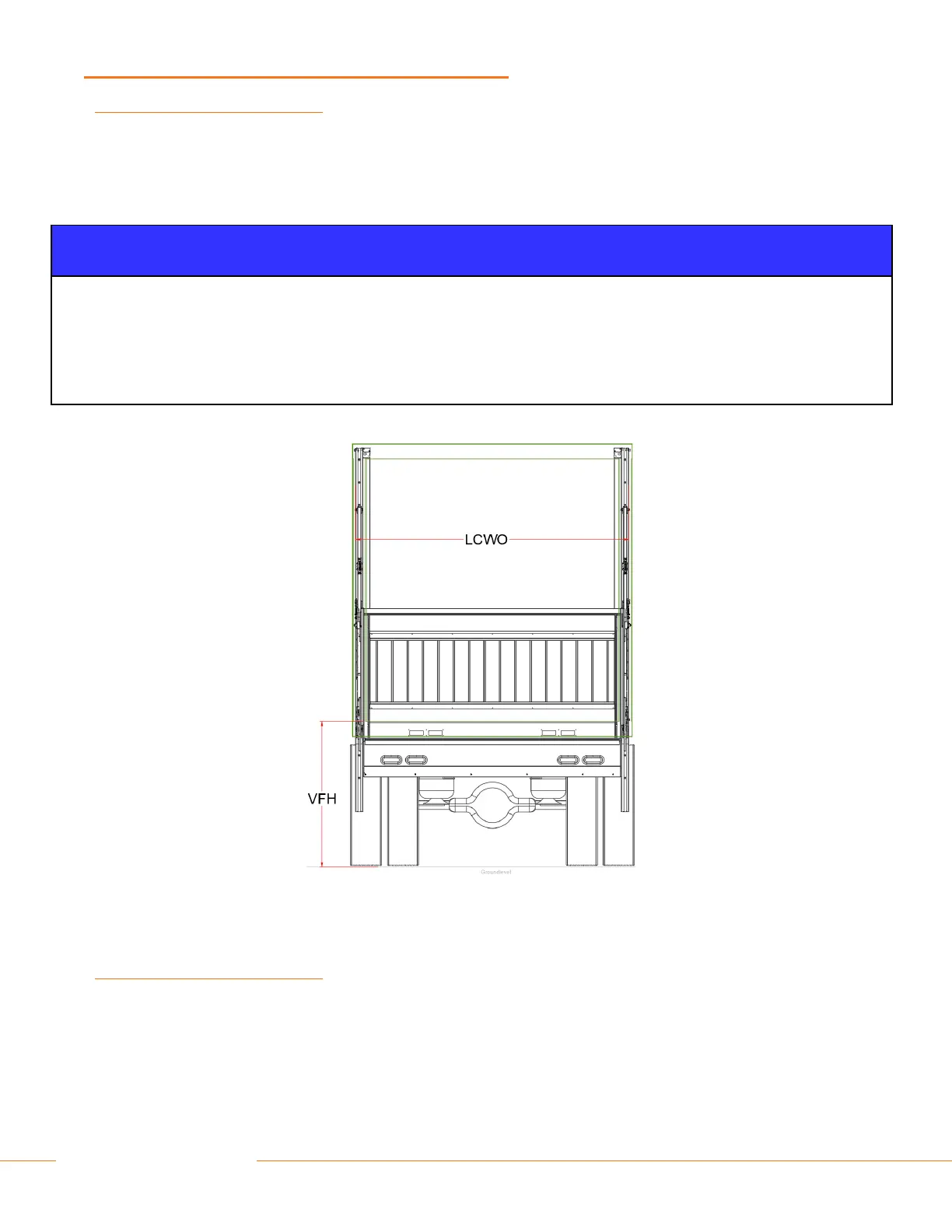

• The lifting height is determined by the column width lcwo and the stroke of the lift cylinder fitting inside the cylinder beam. The
tolerances in lifting height vary from project to project.
• Compare the actual floor height vfh measured on the vehicle with the vfh ordered from DHOLLANDIA. If the actual floor height vfh is
higher, DON’T continue and contact your national DHOLLANDIA distributor for further advice.
• When determining the installation dimensions, ALWAYS make sure to respect the maximum installation parameters vfh.
• ALWAYS make sure you comply with applicable bumper bar regulations.
• The MAX vehicle floor height vfh is measured on an UNLOADED vehicle. In case of a higher vfh, the risk exists that the platform
will not reach the ground.
• The LADEN vehicle floor height vfh is measured on a FULLY LOADED vehicle.
6.2 INSTALLATION RESOURCES
• If in doubt on any installation parameters given, please reach out to your local DHOLLANDIA distributor. See contact info on page 4.
