8 GENERAL REMARKS
8.1 POWER PACK INSTALLATION

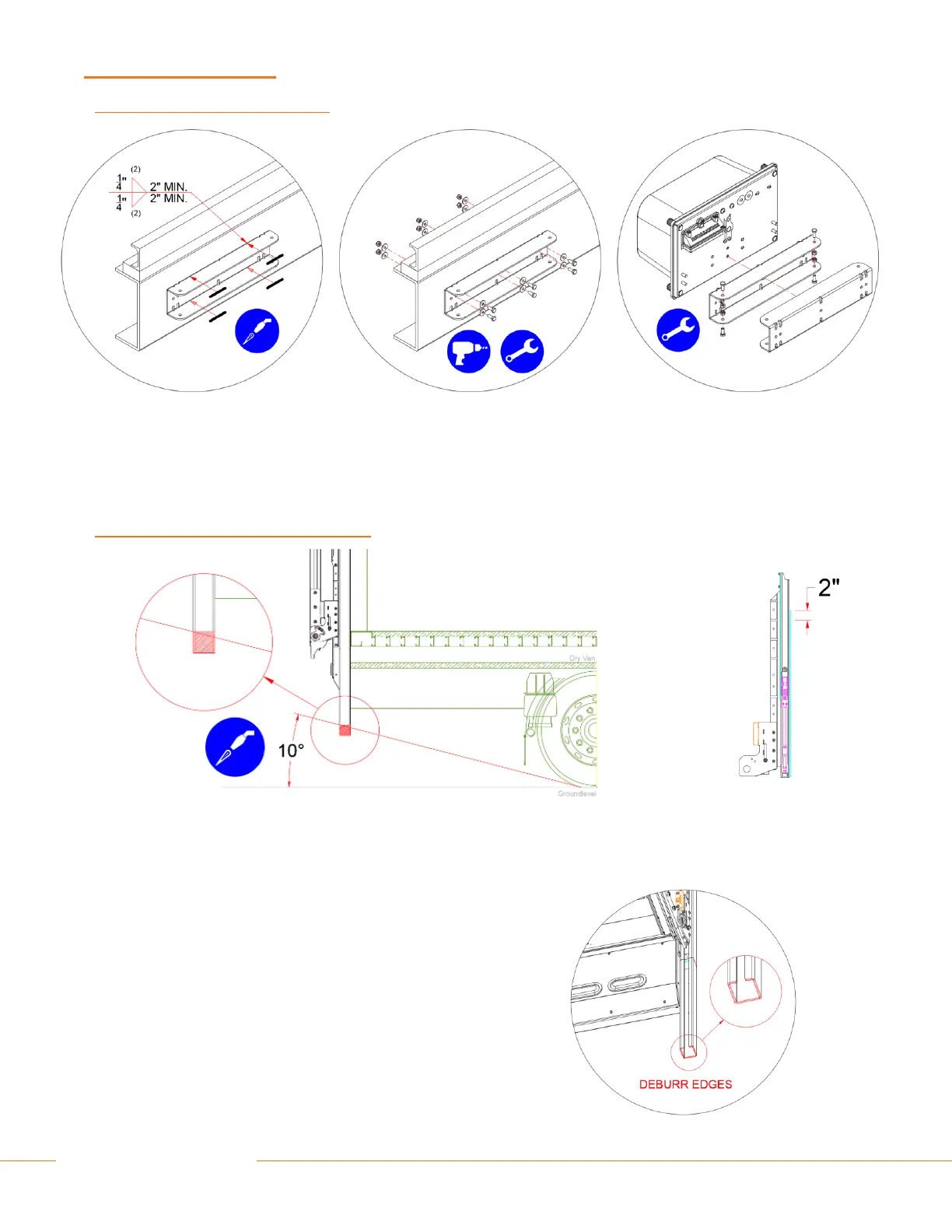

• To mount the power pack to the chassis, weld or bolt the power back braket as shown above.
• ALWAYS mount the power pack on the passenger side of the vehicle, away from the road side.
• Use DIN 7991 M8 bolts (minimum 6x).
• Fasten bolts to the prescribed torque. See 16.2 on page 43.
8.2 TRIMMING OF THE LIFT COLUMNS
• To achieve proper ground clearance, trimming the bottom of the lift columns may be necessary.
• Before cutting the lift columns, ensure a minimum 2” of the slide pads on the lift runners will remain in the lift columns when the
liftgate is lowered to the ground. This includes situations where the ground surrounding the liftgate may be lower in elevation than
the ground surrounding the vehicle.
• After cutting the lift columns, shape and deburr the leading
edge to ensure a smooth sliding surface for the slide pads.
