Page 34

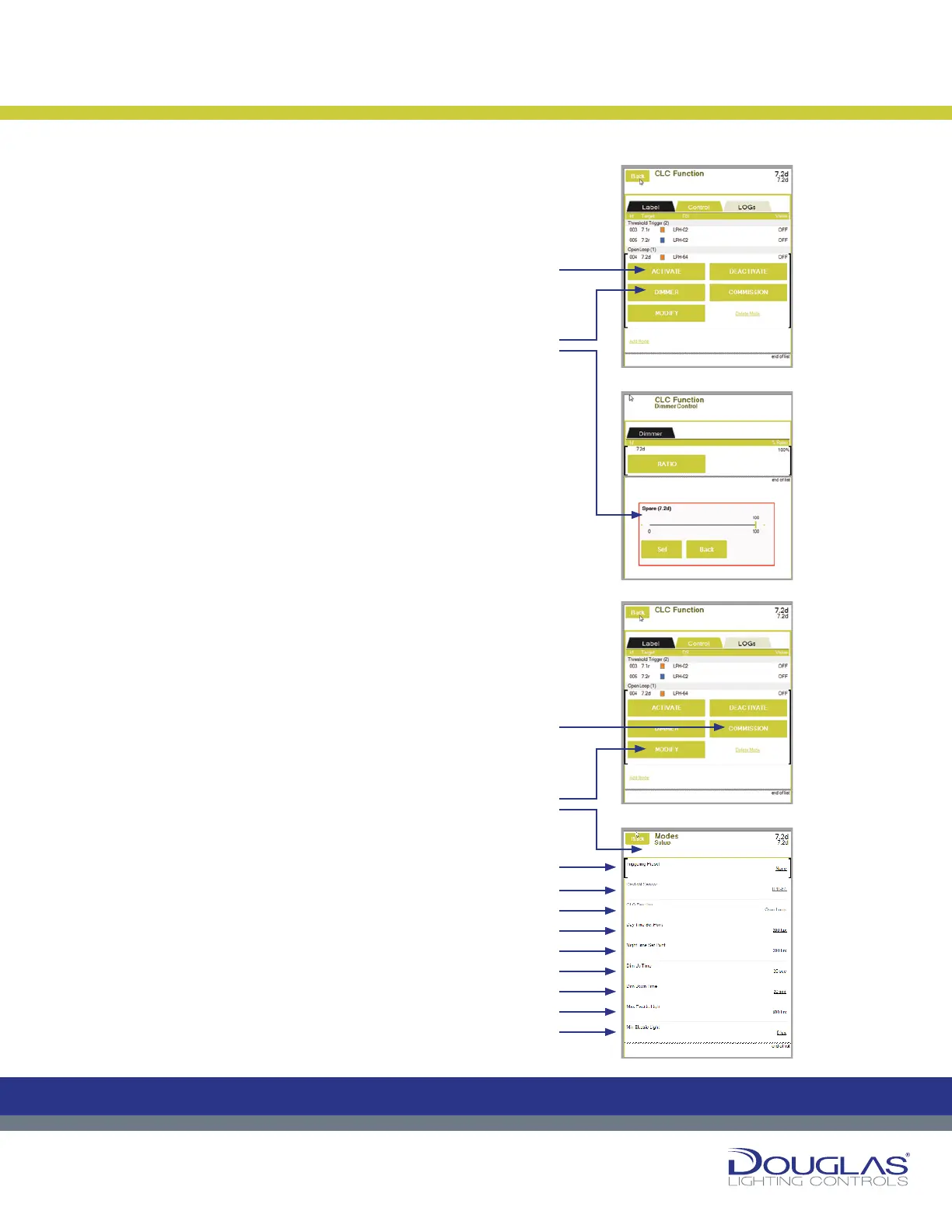

Open Loop

a) Activate or deactivate a selected dimmer group by selecting

the ACTIVATE or DEACTIVATE button.

An orange rectangle is displayed for activated modes and a

blue rectangle for a deactivated preset.

b) Select the DIMMER button to adjust the dimmer out dimming

level Set Point. This is set as a percentage. Use the slider to

adjust the level and select the Set button. In the case when

the there are multiple dimmer outputs controlled by the same

sensor, this value is the dimmer RATIO.

c) Select the COMMISSION button to initiate the Commissioning

process, in which the system tests the full dimming spectrum

and sets up the Open Loop CLC. Commissioning is a multi-

step process and this is typically done as part of the initial

installation. This must be done correctly for the CLC mode

to function properly. If you are initiating a Commission,

refer to the documentation describing the commissioning

procedure.

d) Select the MODIFY button to view or modify the sensor

parameters, as follows:

1. Triggering Preset - display any of the CLC triggering

presets associated with the output.

2. Daylight Sensor - select the associated link to modify

the controlling sensor. Next, select the new sensor.

3. CLC Function - select the associated link to modify the

CLC type. Next, select the Open Loop or Closed Loop

option and select the OK button.

4. Day Time Set Point - select the associated link to

modify the value, which is used in the commissioning

process. First, select the Interior or Exterior option, use

the slider to set the new value, and select the OK button.

5. Night Time Set Point - select the associated link to

modify the value, which is used in the commissioning

process. Use the slider to set the new value and select

the OK button.

6. Dim Up Time - select the associated link to modify the

value, which is the maximum time required for the dimmer

to go from a lower to a higher dimming percentage when

the ambient brightness changes. Use the slider to set

the new value and select the OK button.

7. Dim Down Time - select the associated link to modify

the value, which is the maximum time required for

the dimmer to go from a higher to a lower dimming

percentage when the ambient brightness changes. Use

the slider to set the new value and select the OK button.

8. Max Electric Light - select the associated link to modify

the value, which is the brightness stable light level value

in the area controlled by the CLC. Use the slider to set

the new value and select the OK button.

9. Min Electric Light - select the associated link to modify

the value, which is the dimmest stable light level value in

the area controlled by the CLC. Use the slider to set the

new value and select the OK button.

Constant Lighting Controller

Dialog® Lighting Control System

Open Loop

a) Activate or deactivate a selected dimmer group by selecting the ACTIVATE

or DEACTIVATE button.

An orange rectangle is displayed for activated modes and a blue rectangle

for a deactivated preset.

b) Select the DIMMER button to adjust the dimmer out dimming level Set

Point. This is set as a percentage. Use the slider to adjust the level and

select the Set button. In the case when the there are multiple dimmer

outputs controlled by the same sensor, this value is the dimmer RATIO.

c) Select the COMMISSION button to initiate the Commissioning process,

in which the system tests the full dimming spectrum and sets up the

Open Loop CLC. Commissioning is a multi-step process and this is

typically done as part of the initial installation. This must be done correctly

for the CLC mode to function properly. If you are initiating a Commission,

refer to the documentation describing the commissioning procedure.

d) Select the MODIFY button to view or modify the sensor parameters, as

follows:

1. Triggering Preset

- display any of the CLC triggering presets

associated with the output.

2. Daylight Sensor - select the associated link to modify the controlling

sensor. Next, select the new sensor.

3. CLC Function - select the associated link to modify the CLC type. Next,

select the Open Loop or Closed Loop option and select the OK button.

4. Day Time Set Point - select the associated link to modify the value,

which is used in the commissioning process. First, select the Interior or

Exterior option, use the slider to set the new value, and select the OK

button.

5. Night Time Set Point - select the associated link to modify the value,

which is used in the commissioning process. Use the slider to set the

new value and select the OK button.

6. Dim Up Time - select the associated link to modify the value, which is

the maximum time required for the dimmer to go from a lower to a higher

dimming percentage when the ambient brightness changes. Use the

slider to set the new value and select the OK button.

7. Dim Down Time - select the associated link to modify the value, which

is the maximum time required for the dimmer to go from a higher to a

lower dimming percentage when the ambient brightness changes. Use

the slider to set the new value and select the OK button.

8. Max Electric Light - select the associated link to modify the value,

which is the brightness stable light level value in the area controlled by

the CLC. Use the slider to set the new value and select the OK button.

9. Min Electric Light - select the associated link to modify the value,

which is the dimmest stable light level value in the area controlled by the

CLC. Use the slider to set the new value and select the OK button.

Constant Lighting Controller
