4. Setup (continued)

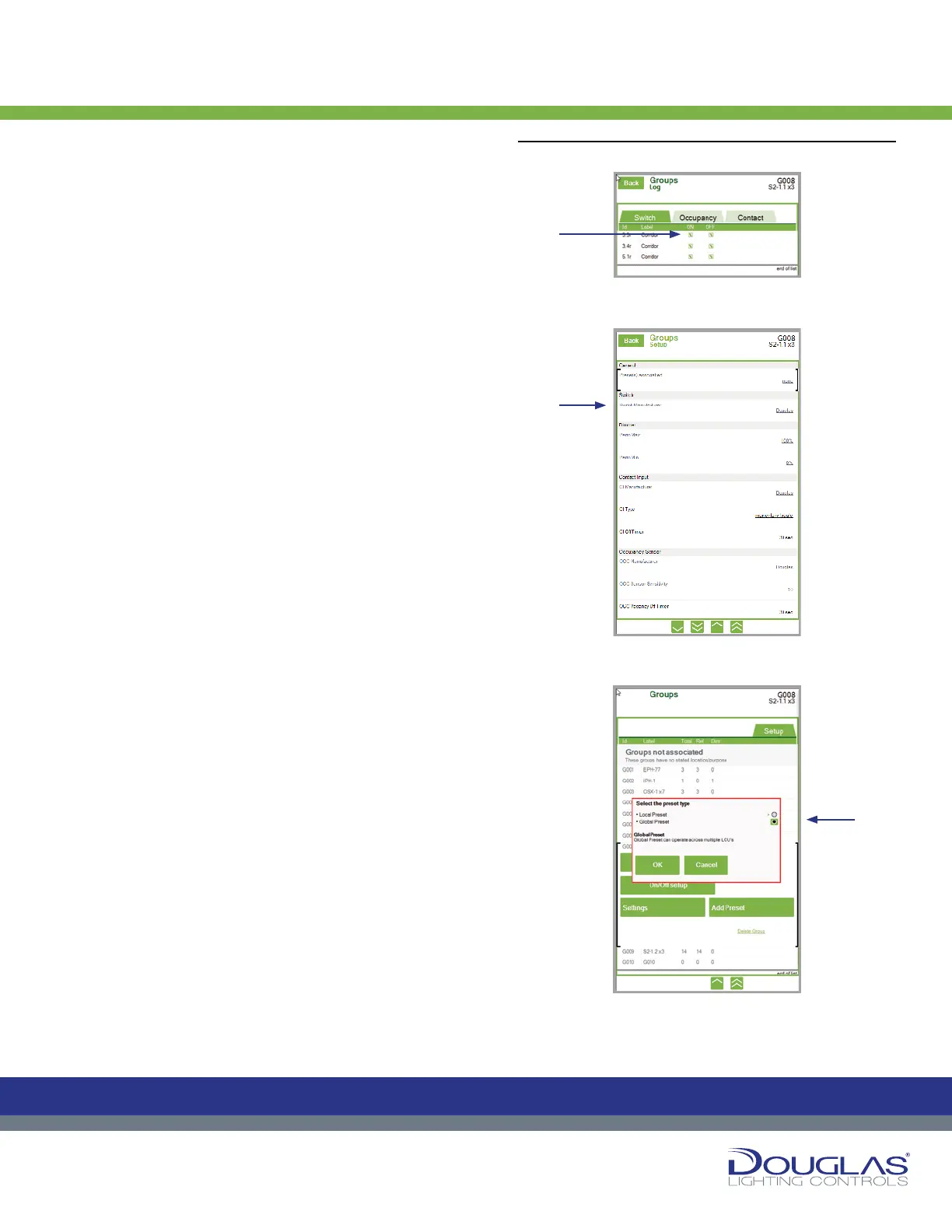

c) To set a group as turned on (only), turned off (only), or
turned on/turned off by its controlling input, select the On/Off
Setup button. Select the corresponding input type—switch,
occupancy sensor, or contact input—and then select the
ON/OFF check box for each output in the group.
d) To set the parameters of the inputs controlling the group,
select the Settings button. Select the link for the setting you
are conguring and enter the new conguration values. The
settings include the following:
Presets Associated - displays the preset values set up for
the group. Switch - select the manufacturer of the switch input
and select on the OK button. The default value is Douglas.
Dimmer - set the maximum and minimum percentage the
group can be dimmed by moving the slider. The maximum
(Perm Max) default value is 100% and the minimum (Perm
Min) default value is 0%.
Contact Input - select the manufacturer and type of the
contact input. The default value for the manufacturer is
Douglas and the default value for the type is Momentary
Toggle. Also, set the delay OFF time by using the slider and
selecting Set. The default value is 30 seconds.
Occupancy Sensor - select the manufacturer of the
occupancy sensor input. The default value is Douglas. Also,
set the sensitivity of the occupancy sensor input and delay
OFF time by selecting Douglas as the OCC Manufacturer
and using the slider and selecting Set. The default values are
10 seconds 30 seconds, respectively. Alternatively, you can
select OCC Vacancy OFF Timer and set the delay OFF time
and clicking the OK button.
e) If the group is to be associated with a Preset set up in the
Presets menu, select the Add Preset button. Select the
Local Preset option (operates within the panels controlled
by this LCU) or Global Preset option (operates over the
entire network of multiple LCUs) and select the OK button.
