AV (Audio/Video)
This TV provides an AV input and AUDIO output using line-level analogue stereo Audio and
composite format Video signals for compatibility with earlier accessory devices (eg. VCRs, CRT
TVs, basic gaming consoles etc).

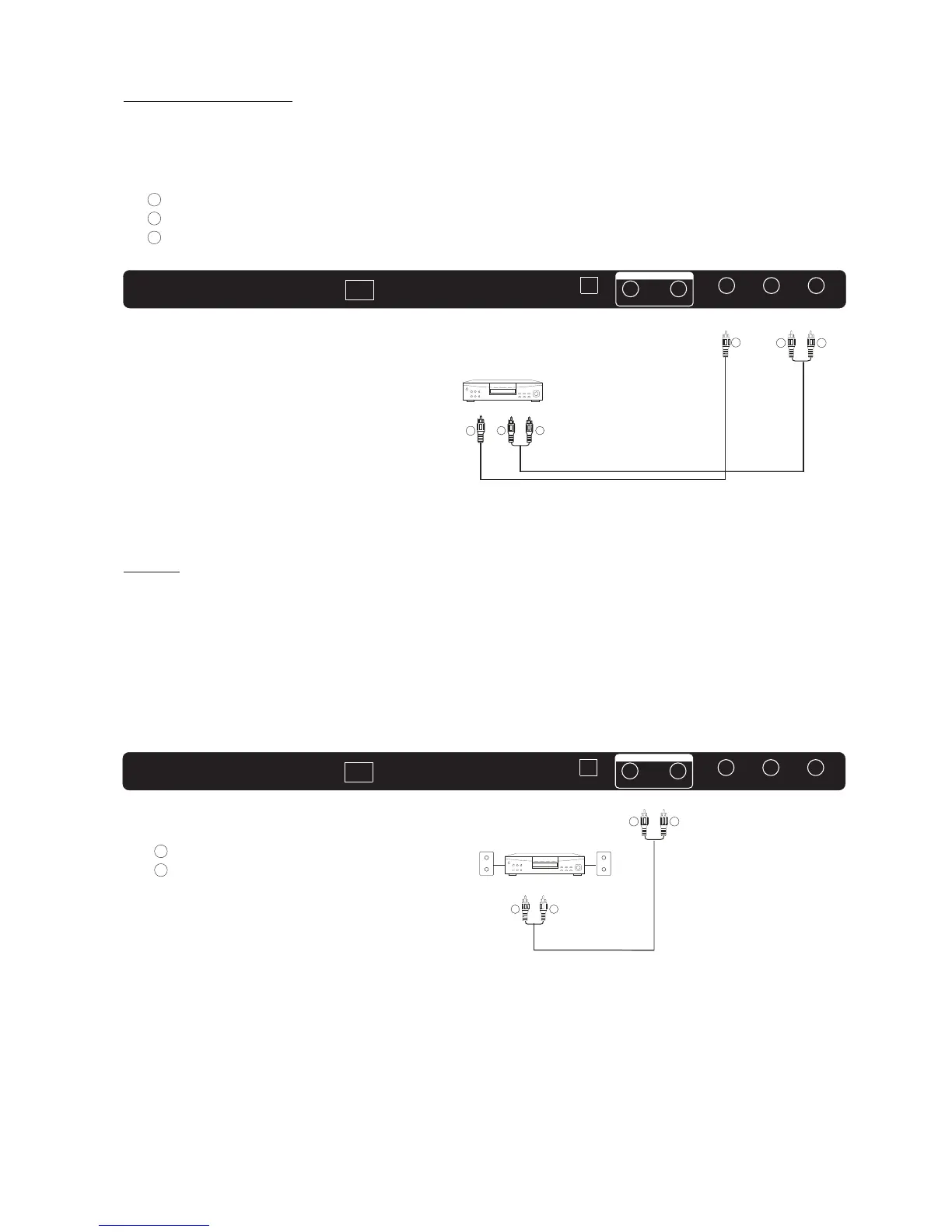

Audio
For installations where you have an existing stereo system and wish to improve your listening
experience, connect a stereo RCA cable between the AUDIO output R/L sockets on this TV and
the appropriate line-level inputs (eg. AUX input) on your amplifier.
Note: Take care when powering up your TV/Amp combination, as they may be a click or pop
sounds on the audio output of the TV during its powering up/down phase that can be amplified
by your sound system. It is highly recommended that the TV is first powered up, then once the
screen is active you power up the amplifier. When powering down the TV/Amp system, turn the
amplifier off first, then switch the TV back to its standby state.
