DIEBOLD NIXDORF RM4V - 4.1.11 Removing;Inserting All in Cassette; Figure 4-7 RM4 V - Removing All in Cassette; Figure 4-8 RM4 V - Inserting All in Cassette

Operation
4.1.11
4.1.11 Removing/Inserting All in cassette
1. Lift the chest horizontal transport (see Section4.1.8).
1
2

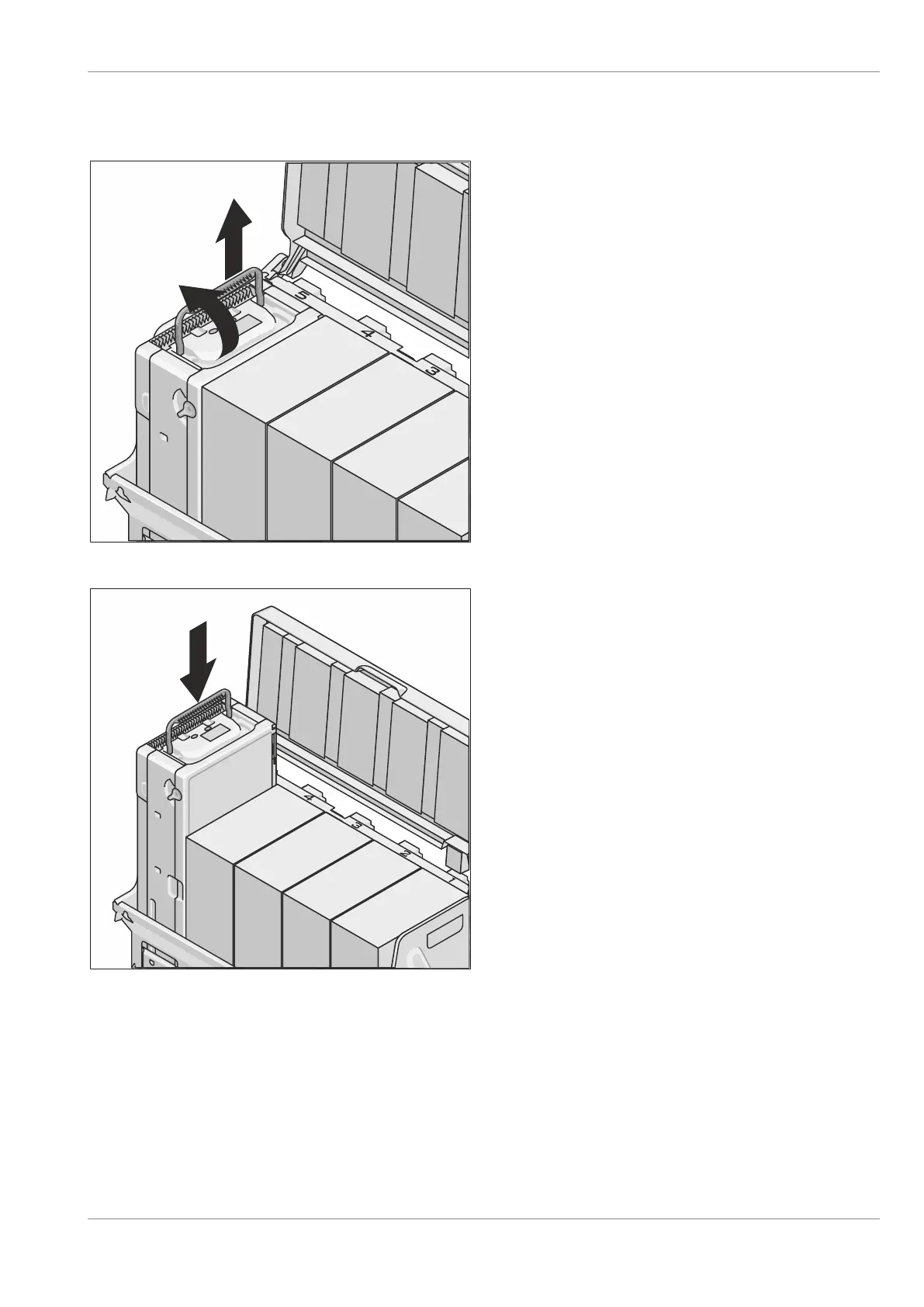

Figure4-7: RM4V - removing All in cassette
2. Lift the cassette handle (1).
3. Lift the cassette out of the media channel
(2).
1
Figure4-8: RM4V - inserting All in cassette
4. Insert the cassette into the media channel
(1).
5. Close the chest horizontal transport (see Section4.1.8).
