Operation
4.2.3.2
4.2.3.2 Opening/Closing bottom compartment
1. Remove the All in cassette from the media channel (see Section4.1.11).
2
1

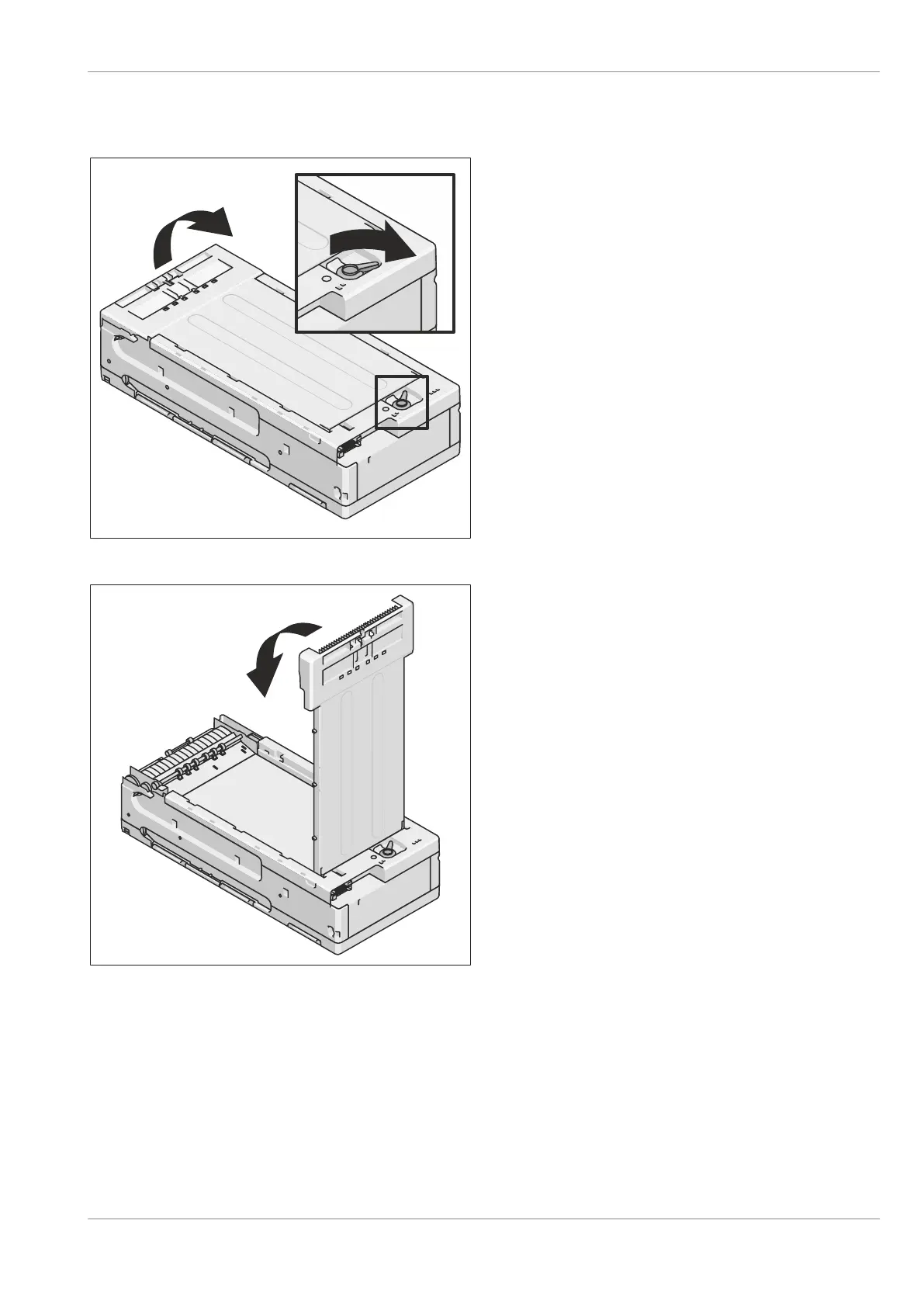

Figure4-18: RM4V-Opening All in cassette back cover
2. Turn the cassette lever (1).
3. Open the cassette back cover (2).
1
Figure4-19: Closing back cover All in cassette
4. Push down the cover (1).
5. Push the cover into the direction of the cas-
sette lever till it’s locked.
6. Insert the All in cassette into the media channel (see Section4.1.11).
Copyright 2018 Diebold Nixdorf
01750308109 A
4-25
