Operation
Locking
1
2
1
2

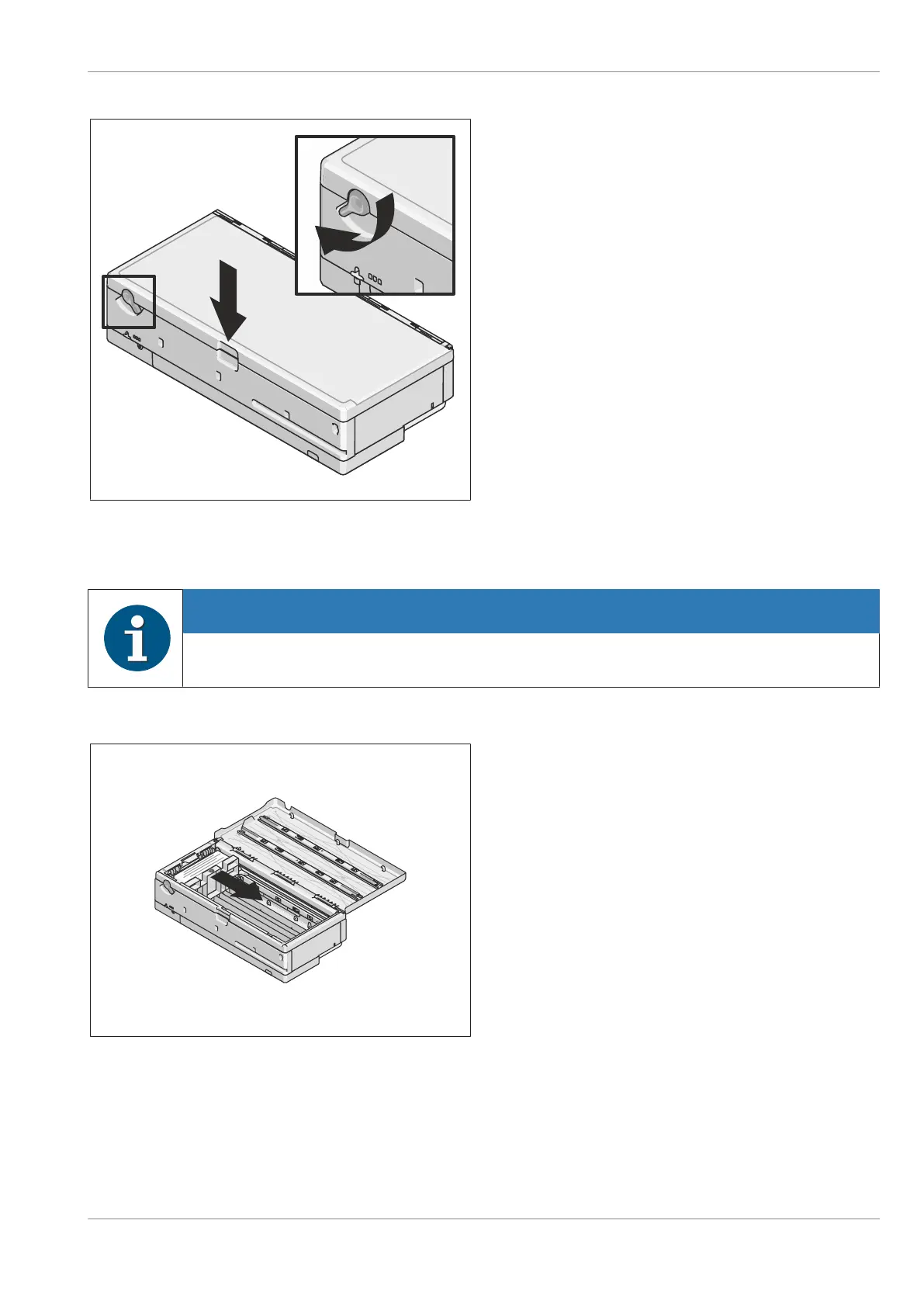

Figure4-11: RM4V - closing recycling cassette
4. Release the lever (1) and push down the
cover (2).
4.2.2.2
4.2.2.2 Inserting/Removing notes
NOTE
Please note the general chapter “preparing banknotes” (Section4.2.1).
1. Open the front cover of the recycling cassette (see Section4.2.2.1).
1
Figure4-12: RM4V recycling cassette_moving contact pres-
sure
2. Move up the pressure carriage (1).
Copyright 2018 Diebold Nixdorf
01750308109 A
4-21
