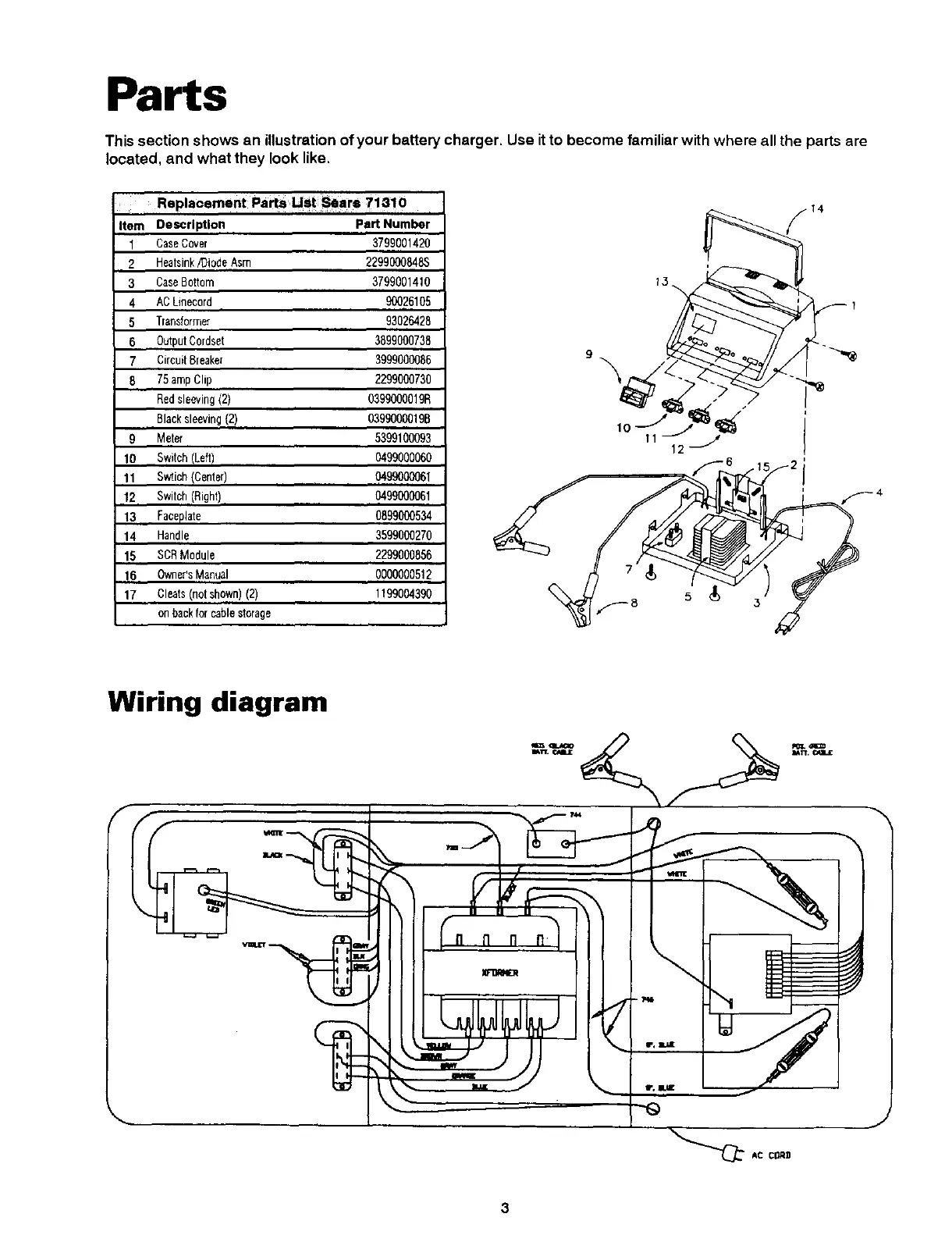

Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts LIst _ar= 71310
Item Description part Number
1 CaseCover 3799001420
2 Heatsink/DiodeAsm 2299000848S
3 CaseBottom 3799001410
4 ACLinecord 99026105
5 Transformer 93026428
6 OutputCordset 3099000738
7 Circuit Breaker 3999000086
8 75amp Clip 2299000730
Redslewing (2) 0399000019R
Blacksleeving(2) 0399000019B
9 Meter 5399100093
10 Switch ILeft/ 0499000060
11 Swtich (Center) , , 0499000061
12 Switch (Right) 0499000061
13 Faceplate 0899000534
14 Handle 3599060270
15 SCRModule 2299000856
16 Owner'sManual 0000000512
17 Cleats(notshown)(2) 1199004390
on backfor cablestorage
9
3
Wiring diagram
m41_, €_lJ[ M17,
• C CIQRD
3
