Digi Connect ME User Manual

Troubleshooting System status LEDs
Digi Connect Family and ConnectPort TS Family
147

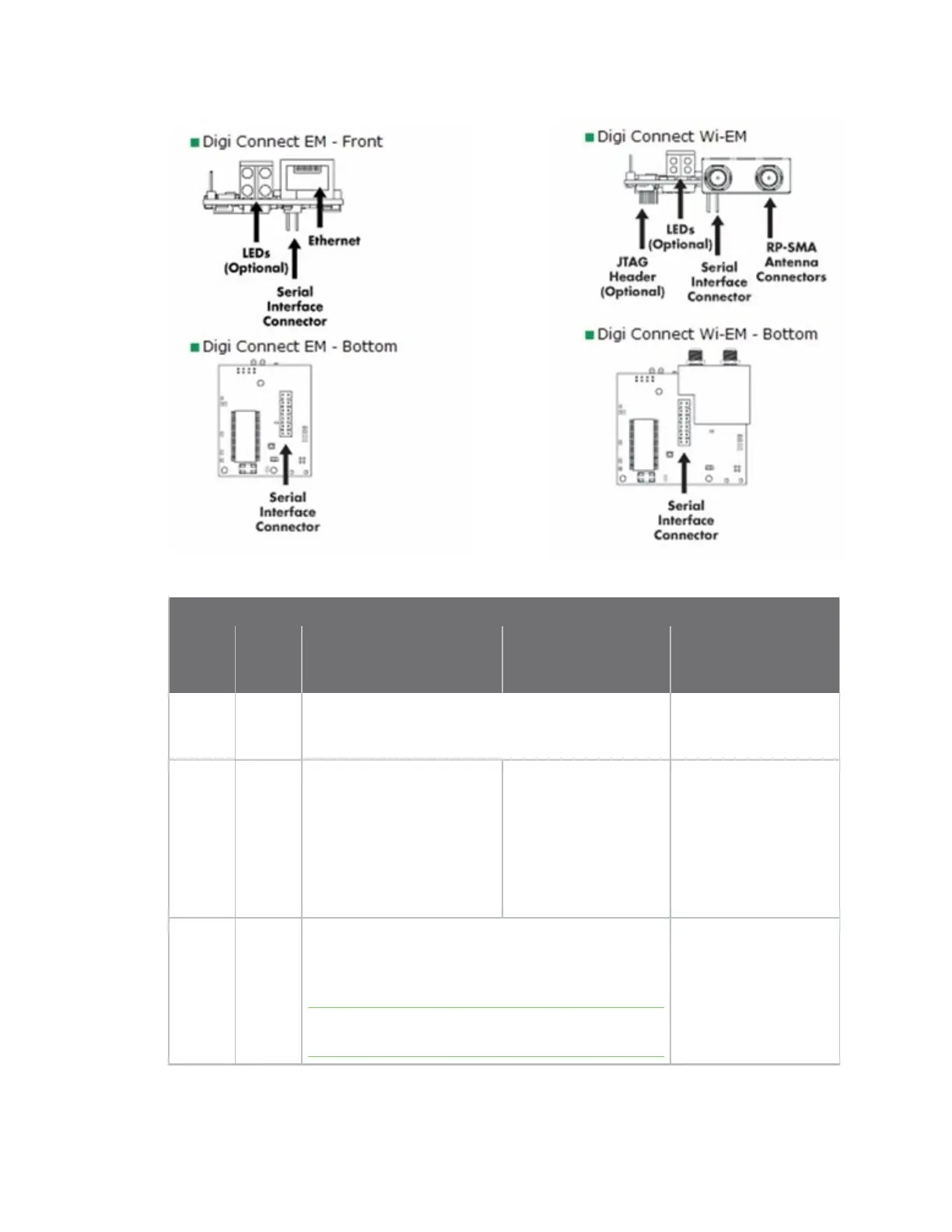

LED Behaviors
LED
Pin
Header
EM
Integration Kit
Digi Connect EM
Integration Kit
Digi Connect Wi-EM Development Kit
Top left
(green)
1 (+)
3(-)
Serial port activity:
Off: The serial channel is idle.
Blinking: Serial data is transmitted or received.
This LED is
software
programmable
Top
right
(green)
5 (+)
7 (-)
Network link status:
Off: No link has been
detected.
On: A link has been
detected.
Network link status:
On: Unit is associated
with an access point.
Blinking slowly: Unit
is in ad hoc mode.
Blinking quickly: Unit
is scanning for a
network.
Same as
Integration Kit
(Network link status)
Bottom
left
(red)
2 (+)
4 (-)
Diagnostics:
Blinking 1-1-1: Starting the operating system.
Blinking 1-5-1: Configuration has been returned to
factory defaults.
Note If other blinking patterns occur, contact Digi
Technical Support.
This LED is software
programmable
