HI, MI, WI 700 service manual - 1 - Installation
1-18 Issue 9 04/2020

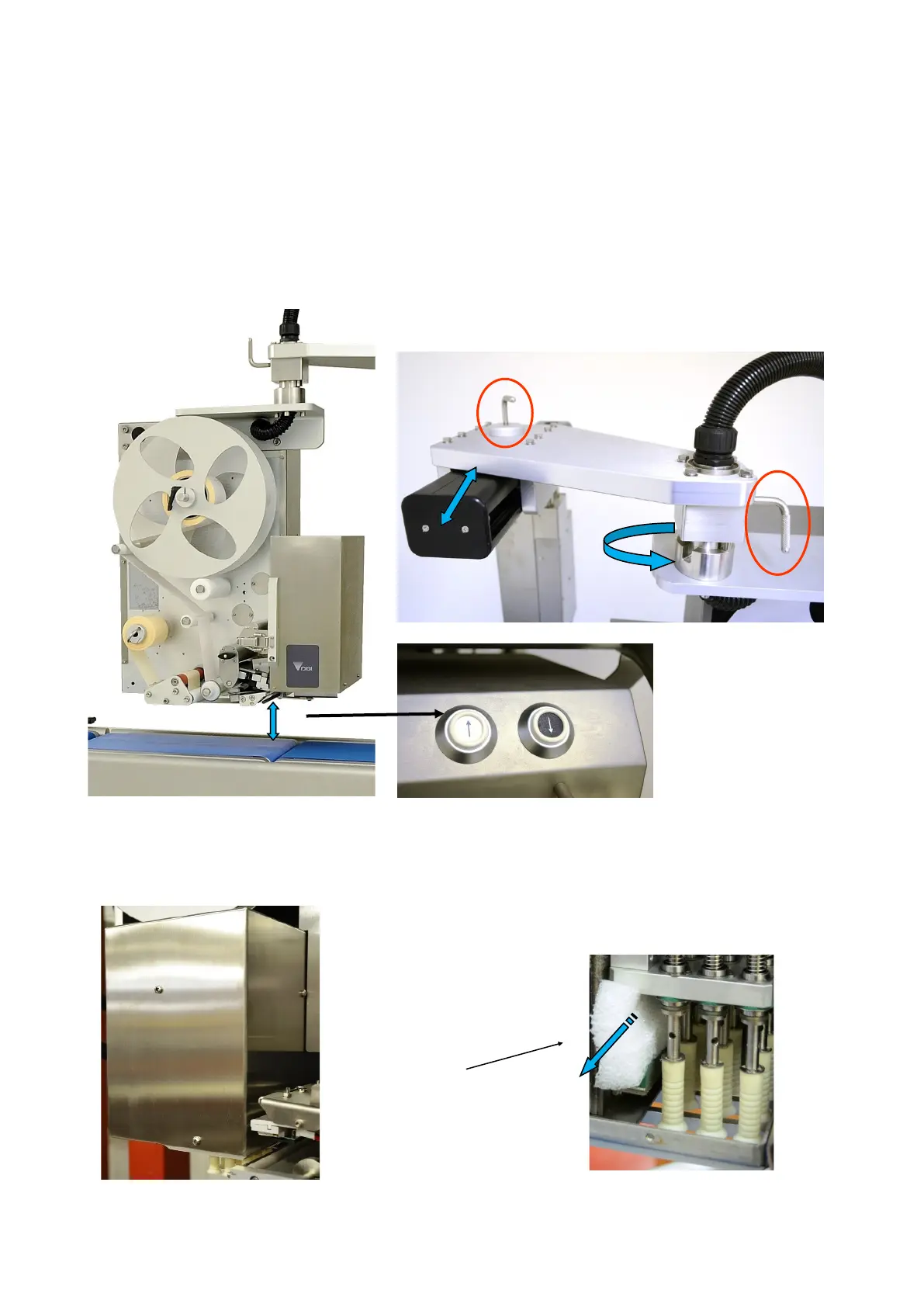

Labeller position adjustment
Ensure that the labeller is positioned such that packs can pass underneath it, with sufficient clearance for
labels to be applied. Press the up / down power lift buttons on the front of the electrical cabinet to move the
labeller height up or down.
For labeller back/forward position & rotation, loosen the locking handle on the top and/or the side of the
horizontal bar, slide the bar forwards or backwards or hold the labeller and rotate to its desired position.
Tighten locking handle
Touch applicator transport packaging - classic labeller
If a classic labeller is fitted
to the machine with a
touch applicator, remove
the applicator outer cover
(3 screws) & remove the
transport packaging from
the touch applicator
assembly
