HI, MI, WI-700 service manual - 4 –servicing
4-60 Issue 9 04/2020

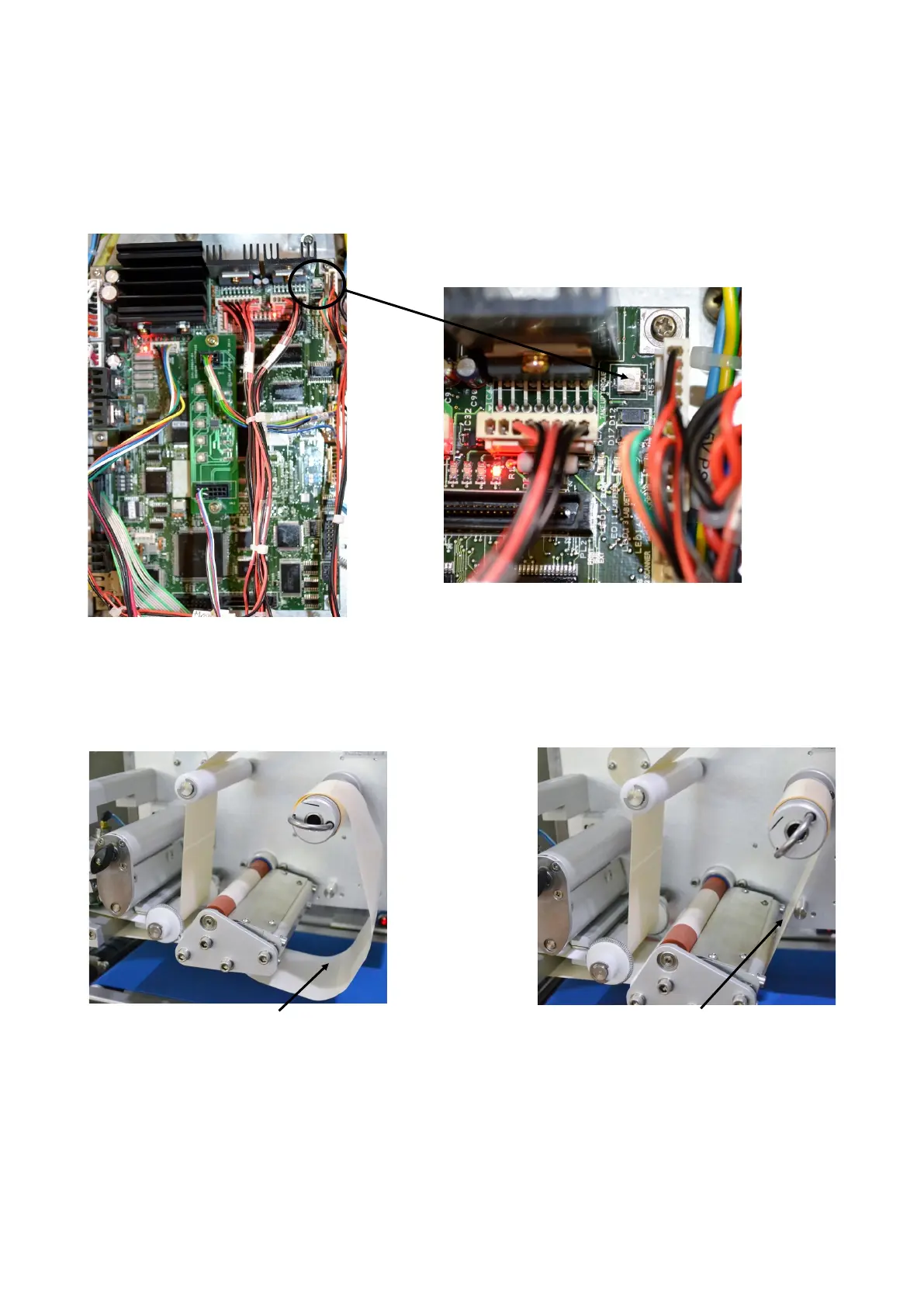

Signature labeller - take-up motor torque setting
An adjustment pot on the labeller board can change the torque the take-up motor achieves
Default setting for motor torque
The default setting for the trim pot on the labeller board is 2/3 towards the maximum
Fully anticlockwise being minimum
Fully clockwise being maximum
If the torque setting is not enough the
backing paper may not remain tight with
the take-up spool turning too slowly
When the take-up spool turns correctly
the backing paper will remain tight
