HI, MI, WI
-
700 ser
vice manual
-
2
-
com
ponent parts
2
-
55
Issue
9 04/2020
Pneumatic connec
tions

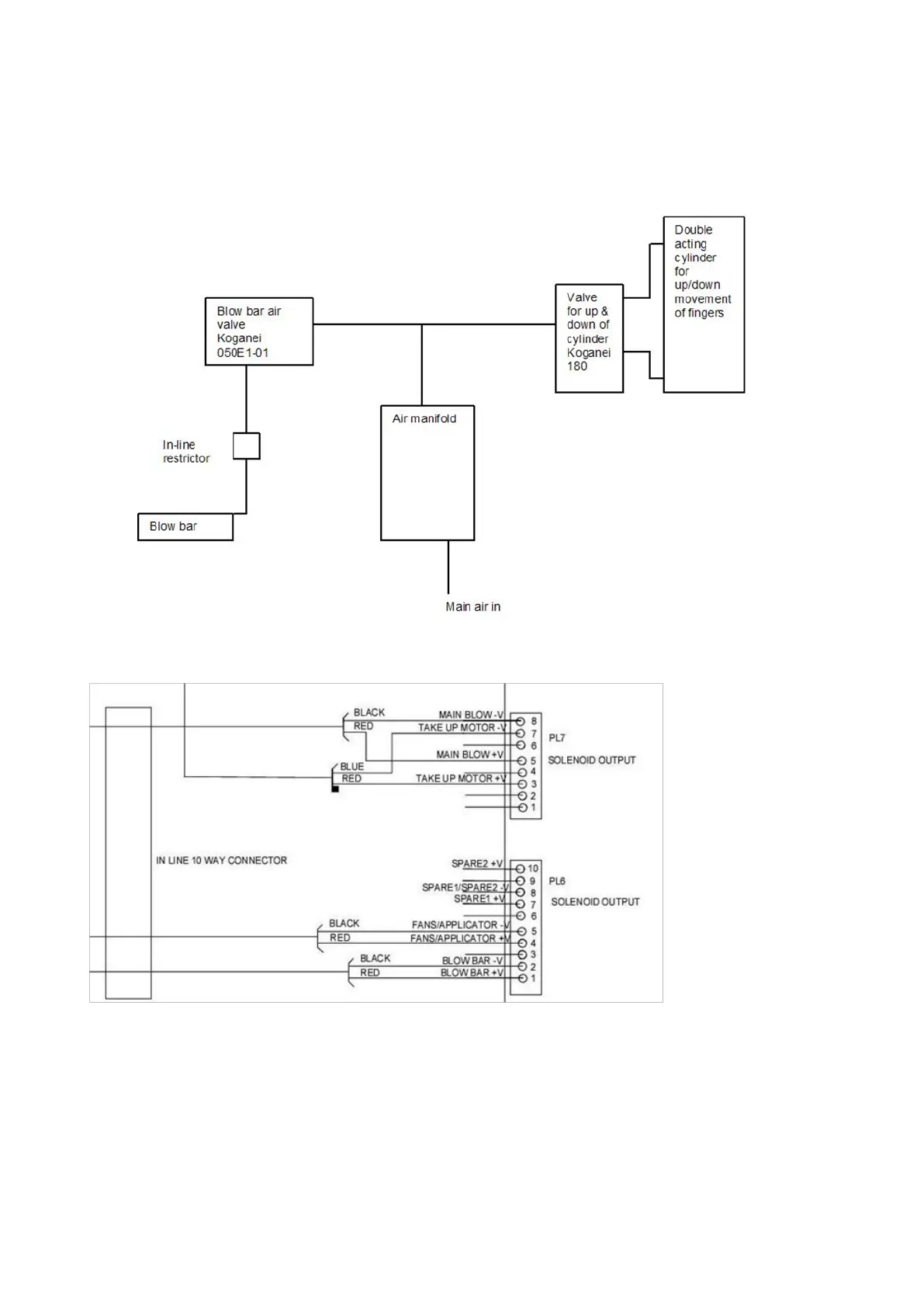

The following is a dia
gram of the air valve co
nnections within the touch
applicator ass
embly.
The solenoid valves e
lectrically connect to the
labeller board at PL6 &
PL7
700 LABELLER
BOARD.
Refer to full electrical
diagram for more de
tail
90
92
Table of Contents
Table of Contents
3
Installation
8
Shipment of Machine
12
Safety
13
Moving the Machine
15
Programming Note
16
Installation Requirements
17
Installation Machine Feet
18
Fitting Labeller to Labeller Arm
18
Connections Inside Electrical Cabinet
19
Outfeed Conveyor Connection
23
Labeller Position Adjustment
25
Touch Applicator Transport Packaging
25
Load Cell Transit Screw
26
Setting Corner Overload Stops
29
Loading Labels - Signature Top Labeller
31
Loading Labels - Classic Labeller
35
Component Parts
37
The Electrical Cabinet
38
PC Main Board - Type LV-67P
40
Hard Drive
43
Battery
44
Power Supply LS75-15-15VDC
45
UPS Board
45
Port Ethernet Switch
47
Relay 5V
48
A/D Power Supply
49
A/D Unit
50
Omron PLC
53
Motor Driver Board
56
Infeed Speed Control
59
Primary Fuse
60
Control Fuse
60
Cooling Fans
61
Software Licence Dongle
61
Pack Sensors
62
Outfeed Conveyor When Base Labeller Is Fitted
66
Load Cell
68
Touch Screen 12.1
70
Touch Screen `15
73
Labeller - Signature
74
Classic Type
75
Thermal Head
76
Platen Roller Option (Signature)
76
Wear Strip & Silicone Tube (Signature)
77
Platen Roller Option (Signature)
78
Thermal Head Heaters (Signature)
79
Labeller Board
80
Labeller Sensor I/F Board
81
Labeller Sensor I/F Board
82
Power Supply 5.35V
82
Power Supply 25V
83
Power Supply 42V
84
Stepper Motor
85
Take-Up Motor
86
Label Gap Sensor
87
Power ON/OFF Switch
88
Blow Bar
90
Pneumatic Connections
91
HS Blow Applicator
93
Base Labeller Belt Applicator
96
Air Cylinder Position on Head Assembly
162
Label Gap Sensor Sensitivity Adjustment
163
Take-Up Motor Torque Setting
168
Multi Jet Air Box
183
HS Blow Applicator Setup
184
Base Labeller Belt Applicator
194
Base Labeller Belt Applicator
195
Labeller - Changing Thermal Head Size
197
Fit Web Centralizer
201
Centralization of Label Reels
203
Ball Plunger Lock Tension
204
Central Knob Resistance Adjustment
206
Side Labelling Applicator
213
End Stop Cushioning
214
Air Pressure / Vacuum
214
Proximity Sensor
216
Software Settings
216
Access to Rear of Labeller
222
Labeller Height Adjustment
224
Classic Labeller Servicing
227
Platen Roller Change
227
Thermal Head Position & Pressure
232
Stepper Motor Belt Tension
236
Electrical Drawings
243
Electrical Cabinet
244
Electrical Cabinet - Canada Specification
246
Maintenance Schedule
256
All Conveyors
258
Scale
259
Labeller
260
Base Label Applicator
263
Labeller Lifting Gear
264
Touch Screen
264
Air Regulator
264
Pack Sensors
264
Safety
265
Outside Electrical Cabinet
266
Fault Finding
267
Operational Problems
267
On Screen Error Messages - Console Software
269
On Screen Error Messages - Worldview Software
270
Labeller Problems
271
Conveyors
276
Pack Sensors
277
Scale Not Working
278
Fault Finding Checks on A/D Board
278
Labeller Board Led's
279
How to PING the Labeller to Check Communication
280
Conveyor
285
Labeller-Signature Type Labeller-Classic Type
285
Finger Touch Applicator-For Signature Labeller Belt Applicator for Base Labeller Air Box Applicator-For Signature Labeller
285
Finger Touch Applicator-For Classic Labeller Side Applicator - for Signature Labeller HS Blow Applicator Air Regulator
285
HI-700 / HI-700W Basic Machine Specification
295
MI-700 Basic Machine Specification
296
WI-700 Basic Machine Specification
297
HI-700 Dimensions - Single Top Labeller
298
HI-700 Dimensions - Top & Base Labeller Plus Infill Conveyor after Scale
300
HI-700W Dimensions
301
WI-700 Dimensions
304
WI-700 Dimensions
305
