4.4 Programming of Free Format
M o d e l S M - 5 3 00 O p e r a t i o n M a n u a l | 149

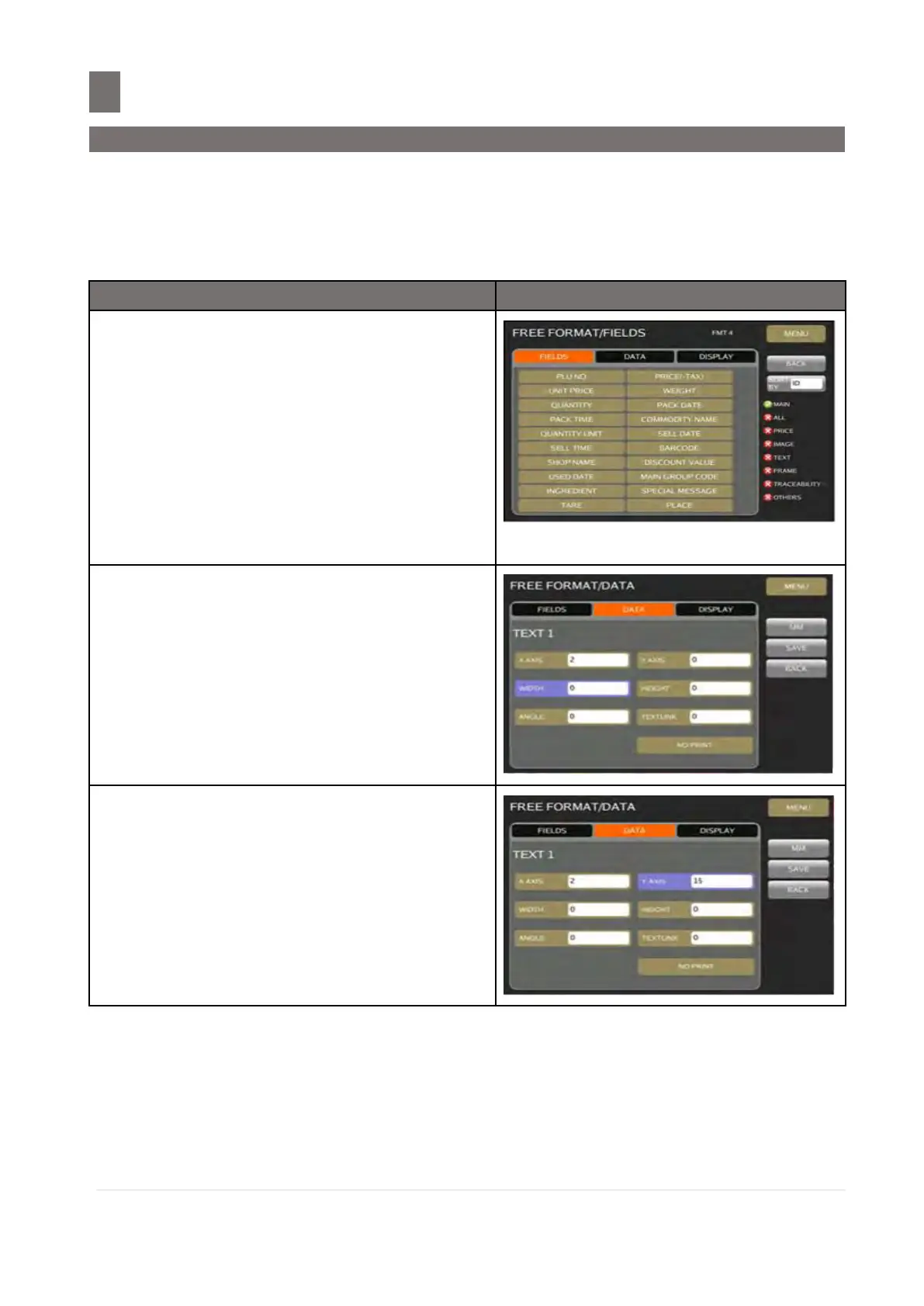

4.4.1.5 Type 5 Data Setting
The Type 5 data setting is the text. The position of the text is decided by X, Y values. The
print area is decided by setting of Height and Width. Up to 16 texts can be set per format on
item label format and 5 texts on Total Label format
Example: Procedure to set Text.
In Item Free Format mode, under [FIELDS]
folder, select the item data. (e.g. Text 1)
Note:
1. Touch [ARROW DOWN] or [ARROW
UP] for more selection.
2. Touch [SORT BY NAME] or [SORT BY
ID] for more selection
3. To save data, touch [DISPLAY] folder
and touch [SAVE] key.
4. Touch Option Button to be short cut to
shown desired FIELDS.
Touch [X AXIS] key and enter the value by
keypad. (e.g. 2)
Touch [Y AXIS] key and enter the value by
keypad. (e.g. 15)
To Next Page
