3
th

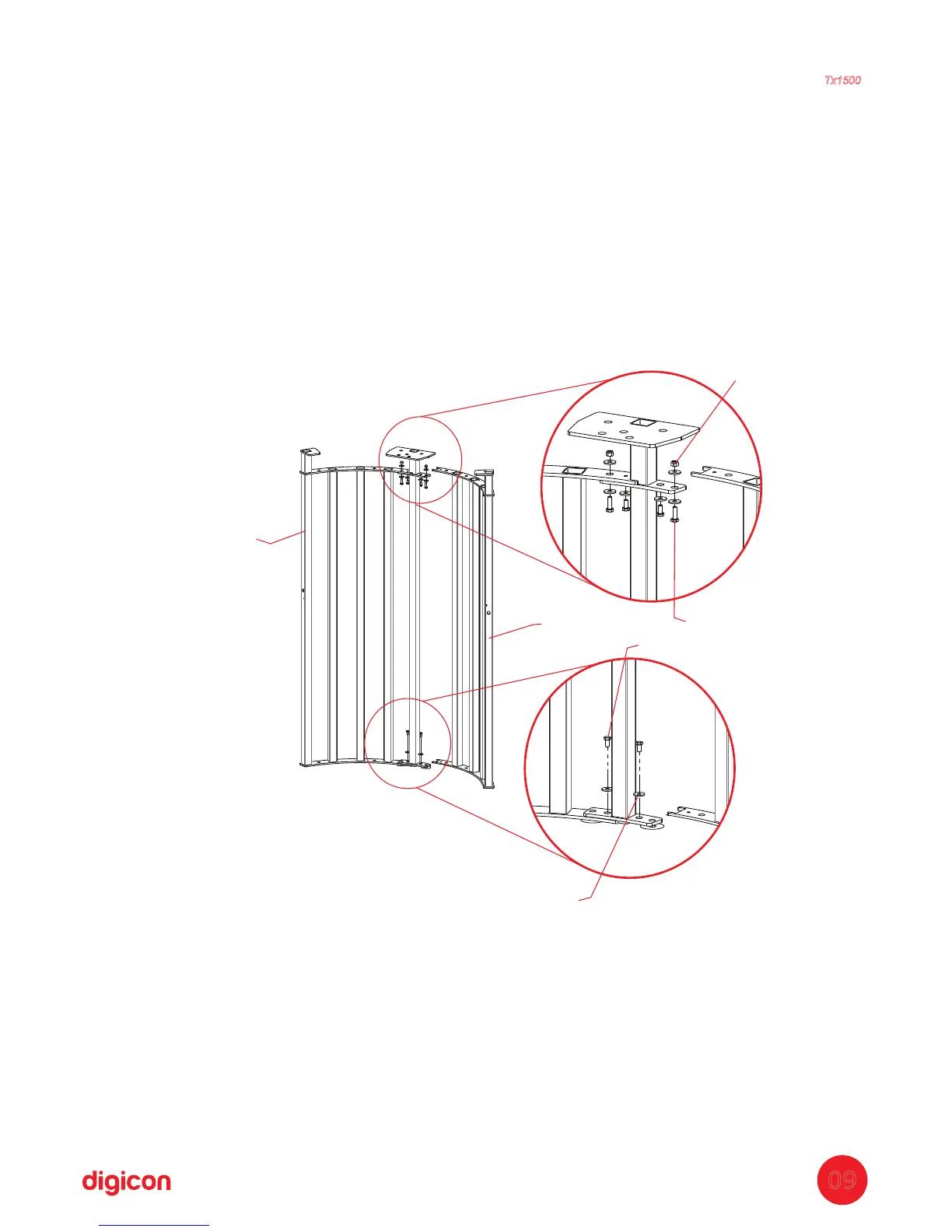

Step: Assembly of sides with rods or glass sides
Sides with rods:
a. Fit the sides (P5) and (P6) so to form an arch;
b. Screw the sides using washer (P7) and screw (P8); repeat on the four fixing
points (two on the upper part, two on the lower part);
c. Place the screw (P26) with washers (P7) on both sides and on the nuts (P18) to
finish the holes on the arch's upper part.
Quantity of parts used in this stage:
P5
= 1x - 5 side rods
P6 = 1x- 4 side rods
P7 = 8x - D=30,5 x 10,5 x 3mmWasher
P8 = 4x - M10 x 20Hexagon head screw
P18 = 2x - M10Nut
P26
= 2x - M10 x 30Hexagon head screw
This assembly will result in the set (P23) – Assembling the arch's sides
P5
P18
P26
P8
P7
P6
Torniquete
Tx1500
09
