Chapter 2: 96i I/O Hardware Overview 5
chapter 2
96i I/O Hardware Overview
This chapter describes the front and rear panel features of the 96i I/O.
The 96i I/O Front Panel
Power Switch and LED Ring
This button turns the 96i I/O on and off.
The LED ring around the power button will light
green to indicate that the unit has powered up
successfully and is connected to an active
Pro Tools|HD system. If the LED ring is orange,
the unit has power, but the computer it is con-
nected to is shut down.
Sample Rate LEDs
These LEDs display the current Pro Tools sample
rate: 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz.
(The 96i I/O will go offline whenever the cur-
rent Pro Tools sample rate is 176.4 kHz or
192 kHz.)
See the Pro Tools|HD Getting Started Guide for complete system installation and configuration instruc-
tions.
If you are adding the 96i I/O to an existing system, see the Expanded Systems Guide.

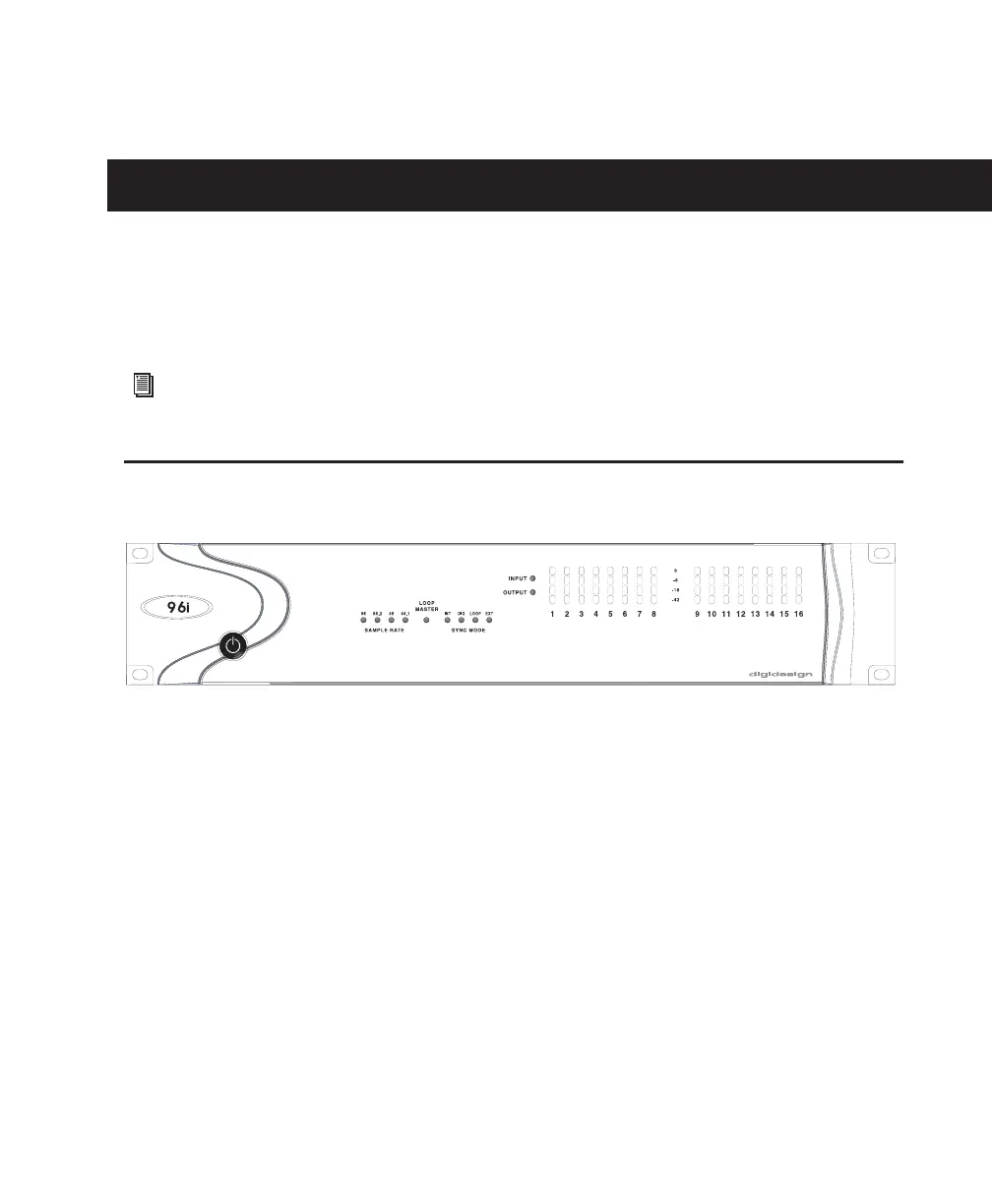

Figure 1. 96i I/O front panel
