Chapter
7: Connecting Y
our Studio
59

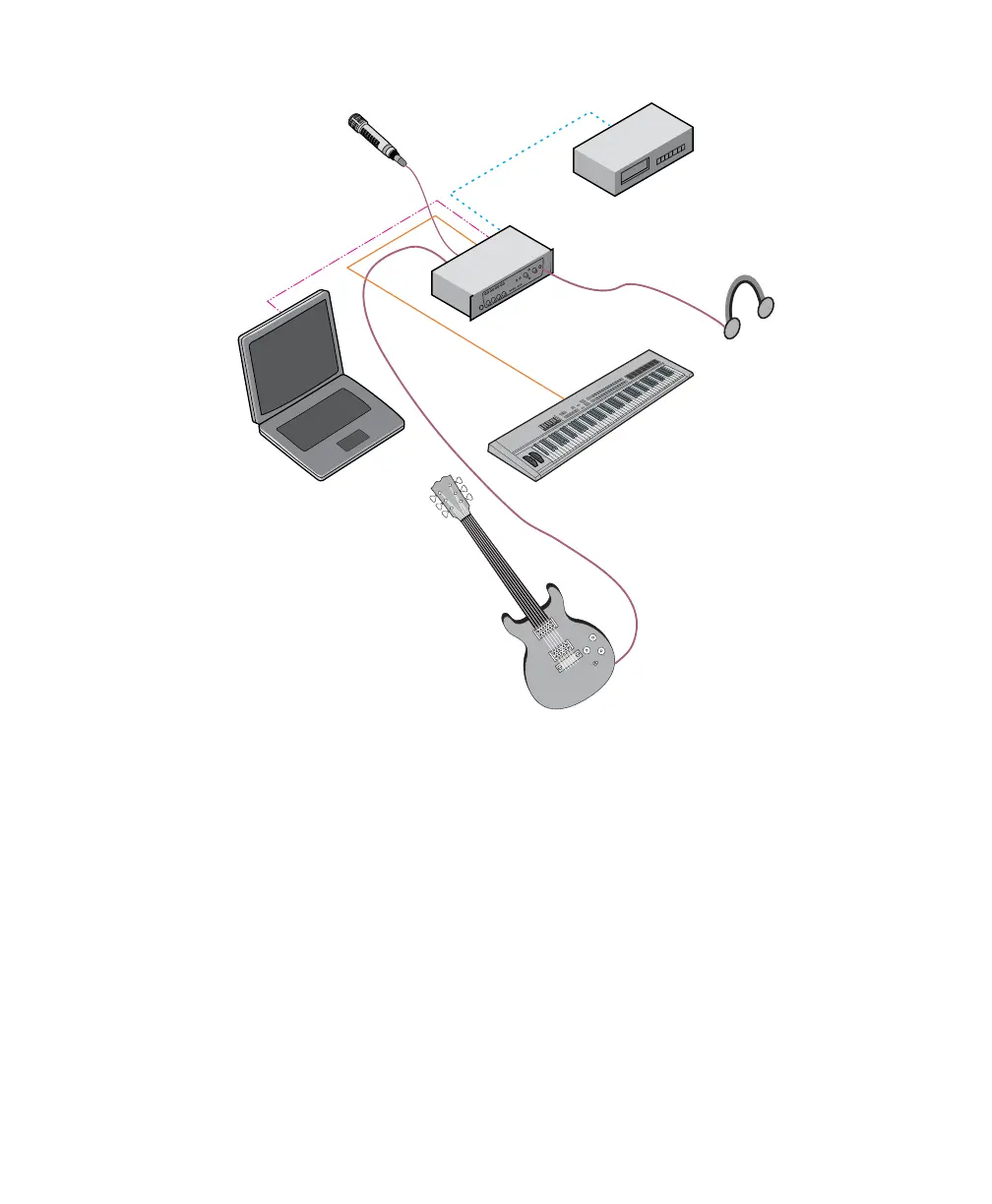

Figure 6.
Digi 002 Rack micro studio configuration running Pro
T
ools on a laptop computer
microphone
Digi
002 Rack
headphones
DA
T
Fi
rewire cable
S/PDIF digital I/o
laptop
ke
yboard
instrument
MIDI cable
66
68
Table of Contents
Default Chapter
5
Table of Contents
5
Chapter 1. Welcome to Digi 002 and Digi 002 Rack
9
Digi 002 and Digi 002 Rack Packages
9
Digi 002 and Digi 002 Rack Features
9
Pro Tools LE Capabilities
11
System Requirements
11
Digidesign Registration
13
About the Pro Tools Guides
13
About Www.digidesign.com
14
Chapter 2. Windows Configuration
15
Installation Overview
15
Testing Digi 002
15
Windows System Settings
16
Connecting Digi 002 or Digi 002 Rack to the Computer
18
Connecting Firewire Drives
18
Installing Pro Tools LE
19
Optional Software on the Pro Tools Installer CD-ROM
20
Launching Pro Tools LE
22
Configuring Pro Tools LE
23
Hard Drive Configuration and Maintenance
26
Removing Pro Tools on Windows XP
27
Chapter 3. Macintosh Configuration
29
Installation Overview
29
Testing Digi 002
29
Apple System Settings for Mac os X
30
Installing Pro Tools LE
30
Optional Software on the Pro Tools Installer CD-ROM
31
Connecting Digi 002 or Digi 002 Rack to the Computer
32
Connecting Firewire Drives
32
Launching Pro Tools LE
33
Configuring Pro Tools LE
34
Hard Drive Configuration and Maintenance
38
Removing Pro Tools on Mac os X
38
Chapter 4. Digi 002 Top Panel
39
Digi 002 Operating Modes
39
The Digi 002 Top Panel
40
Fader Section
42
Console/Channel View Section
45
Transport and Navigation Controls
48
MIC/Line/Instrument Input Controls
50
Monitor Section
50
Keyboard Modifier Switches
51
Status Indicators and Display Controls
52
Chapter 5. The Digi 002 Rack Front Panel
55
MIC/Line/Instrument Input Controls
56
Monitor Controls
56
Status Indicators
57
Chapter 6. Digi 002 and Digi 002 Rack Back Panels
59
Analog Inputs
61
Analog Outputs
62
Chapter 7. Connecting Your Studio
65
Connecting Digi 002 or Digi 002 Rack to a Computer
65
Monitoring Audio
68
Connecting Audio Sources to Digi 002 or Digi 002 Rack
69
Using External Effects Devices
71
Monitoring and Recording from Alternate Sources
72
Mirroring the Main Outputs
73
Connecting a Recorder for Mixdowns
74
MIDI Connections
75
Chapter 8. Working with Pro Tools LE
77
Session Basics
77
Setting a Tempo
79
Transport Controls
82
Tracks
83
Regions Lists
84
Navigating in a Session
85
Memory Locations
86
Importing Audio
87
Basic Recording
89
Recording MIDI
92
Quickpunch Recording
94
Editing
95
Mixing
98
Plug-Ins
100
MIX Automation
101
Final Mixdown
102
Chapter 9. Using Digi 002 as a Stand-Alone Mixer
103
Overview
104
Entering Stand-Alone Mode
106
Digital Audio Connections in Stand-Alone Mode
106
Views in Stand-Alone Mode
108
Working with Effects
114
Working with Sends
116
Storing Snapshots
118
Appendix A. Windows System Optimizations
119
Troubleshooting
119
Advanced Settings
119
Appendix B. Digidesign ASIO Driver (Windows Only)
121
Introduction
121
Compatible Software
121
Installing the ASIO Driver
122
Removing the ASIO Driver
122
Configuring ASIO Driver Settings
122
Appendix C. Digidesign Wavedriver (Windows Only)
125
Introduction
125
Compatibility
125
Installing the Wavedriver
126
Removing the Wavedriver
126
Configuring Wavedriver for Quicktime Player (Required for Using Itunes)
126
Configuring Wavedriver for Windows Media Player and Other Third-Party Wavedriver Programs
127
Adding Third Party Applications to the Wavedriver Opt-In List
127
Appendix D. Digidesign Coreaudio Driver (Macintosh Only)
129
Introduction
129
What Are the Limitations of the Digidesign Coreaudio Driver
130
Compatibility
130
Installing the Digidesign Coreaudio Driver
130
Removing the Coreaudio Driver
131
Configuring the Digidesign Coreaudio Driver
131
Appendix E. Configuring MIDI Studio Setup (Windows Only)
137
MIDI Studio Setup
137
Patch Name Support
139
Appendix F. Configuring AMS (Mac os X Only)
141
Audio MIDI Setup
141
Patch Name Support
144
Appendix G. Digi 002 Stand-Alone Block Diagram
145
Index
149
