Digikeijs DR 4088RB Series

DR4088RB-CS / OPTO 2021-07-06
P 13
www.digikeijs.com
® R-Bus, B-Bus are trademarks which are registered in the name of Modelleisenbahn GmbH. XpressNet and RS-Bus is a trademark registered in the name of Lenz
Power supply

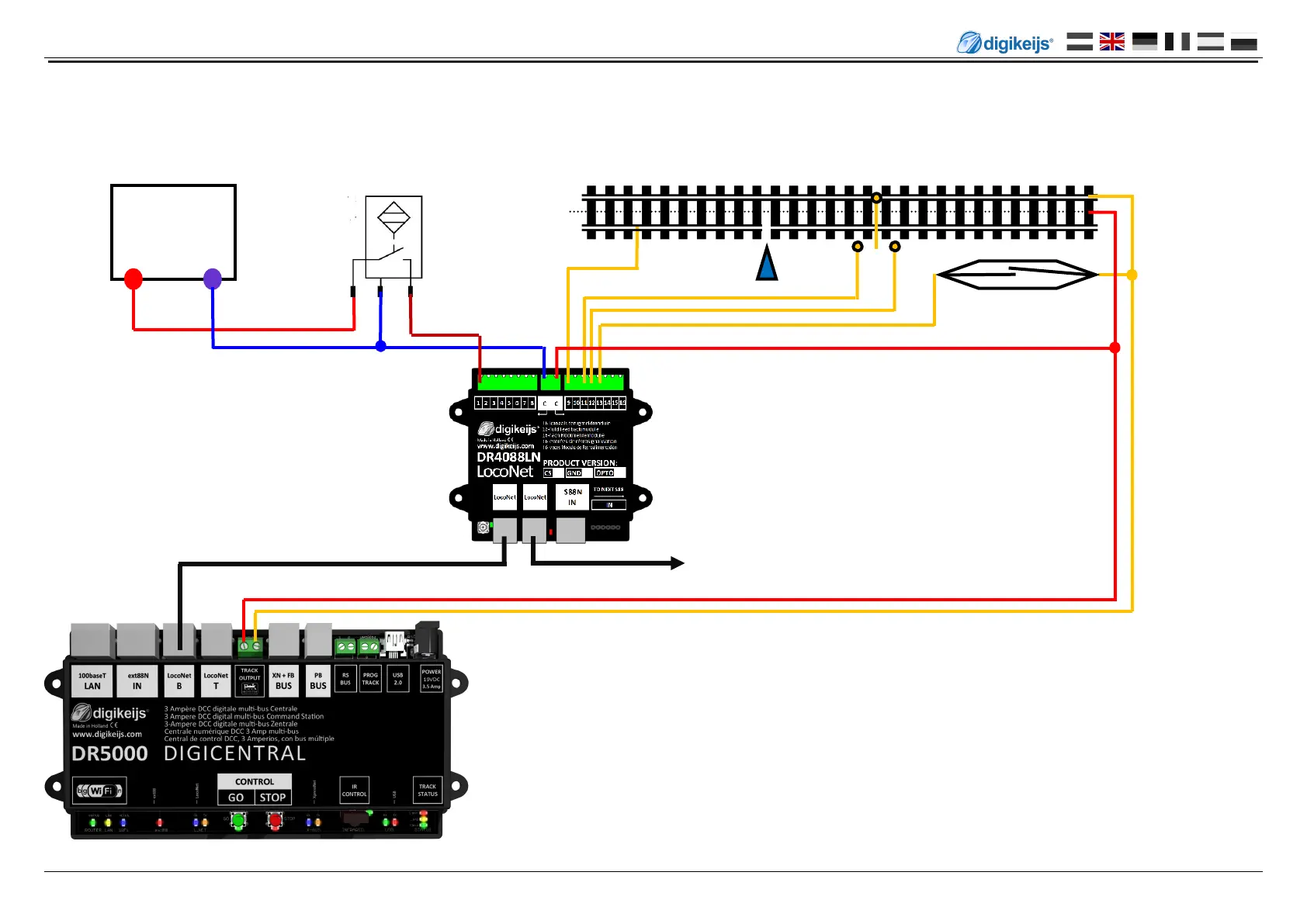

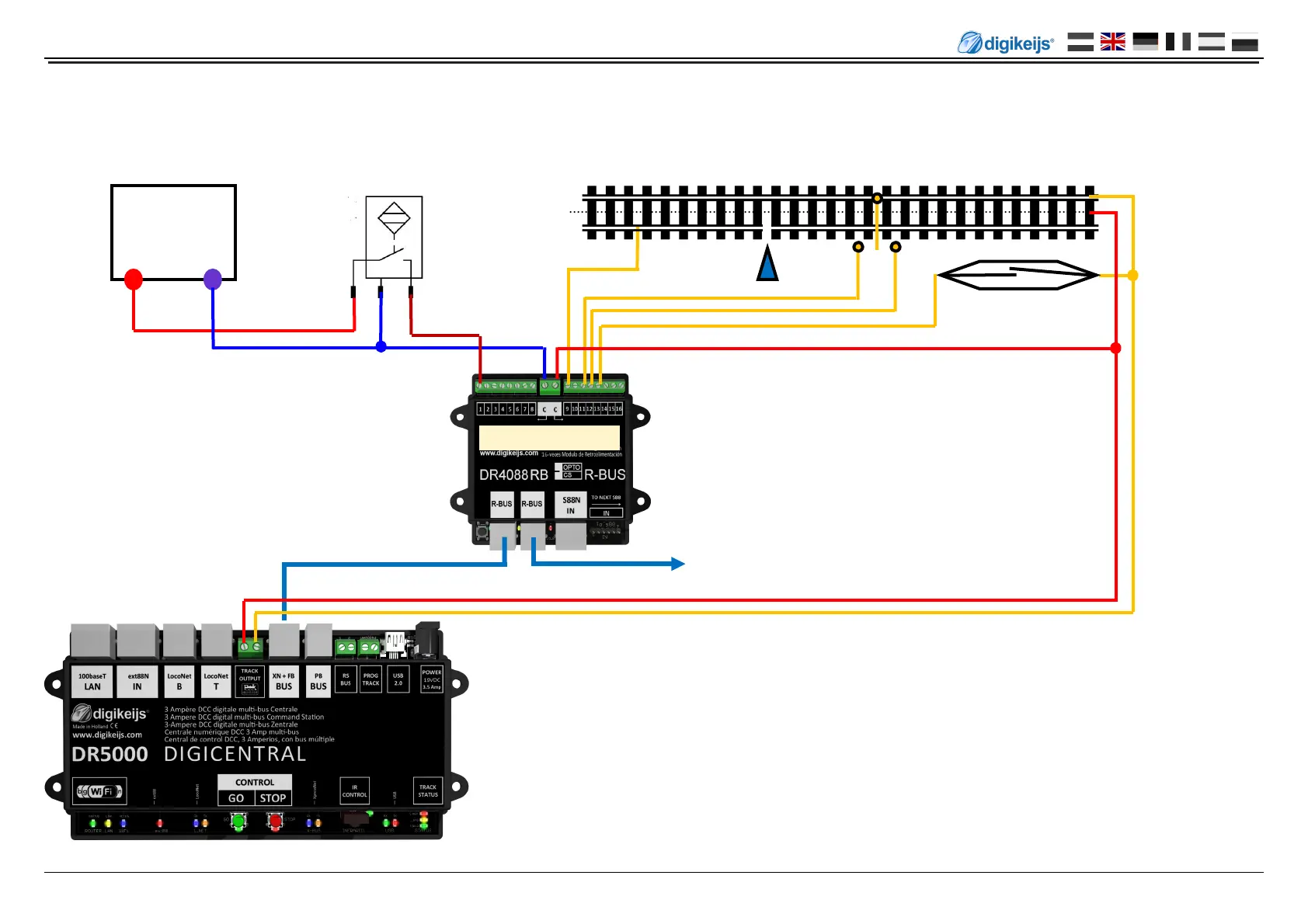

4.2 Feedback modules DR4088RB-OPTO; Hall sensors, 3-wire track
Light barrier, Hall sensors or
the like
(posive switching PNP)
5V-20V
DC/AC
Feedback "Track mass“
switch track reed contact
DR4088RB-OPTO
More DR4088RB-xx
feedback unit
Moduladresse 1-2
