3.0 Programming
First, something fundamental about the R-Bus®:
 The R-Bus® is always divided into two lines. The rst string begins with module address 1 and the second string with module address 11.
 A maximum of 160 feedback modules can be added to the R-Bus®.
 The R-Bus® requires that a module consists of 8 feedback modules.
 However, the DR4088RB contains 16 feedback modules.
 The 1st DR4088RB is assigned the module addresses 1 and 2.
 The 2nd DR4088RB is assigned module addresses 3 and 4.
 etc.
3.1 Programming DR4088RB without further DR4088 at the S88N port
It is important that the DR4088RB-xx must receive the module address once (i.e. 1,3,5,7, etc.) so that the DR4018RB-xx knows which module address it
starts with. In addion, the DR4088RB-xx must be informed that it consists of 2 x 8 feedbacks.
3.1.1 Programming with the DR5000

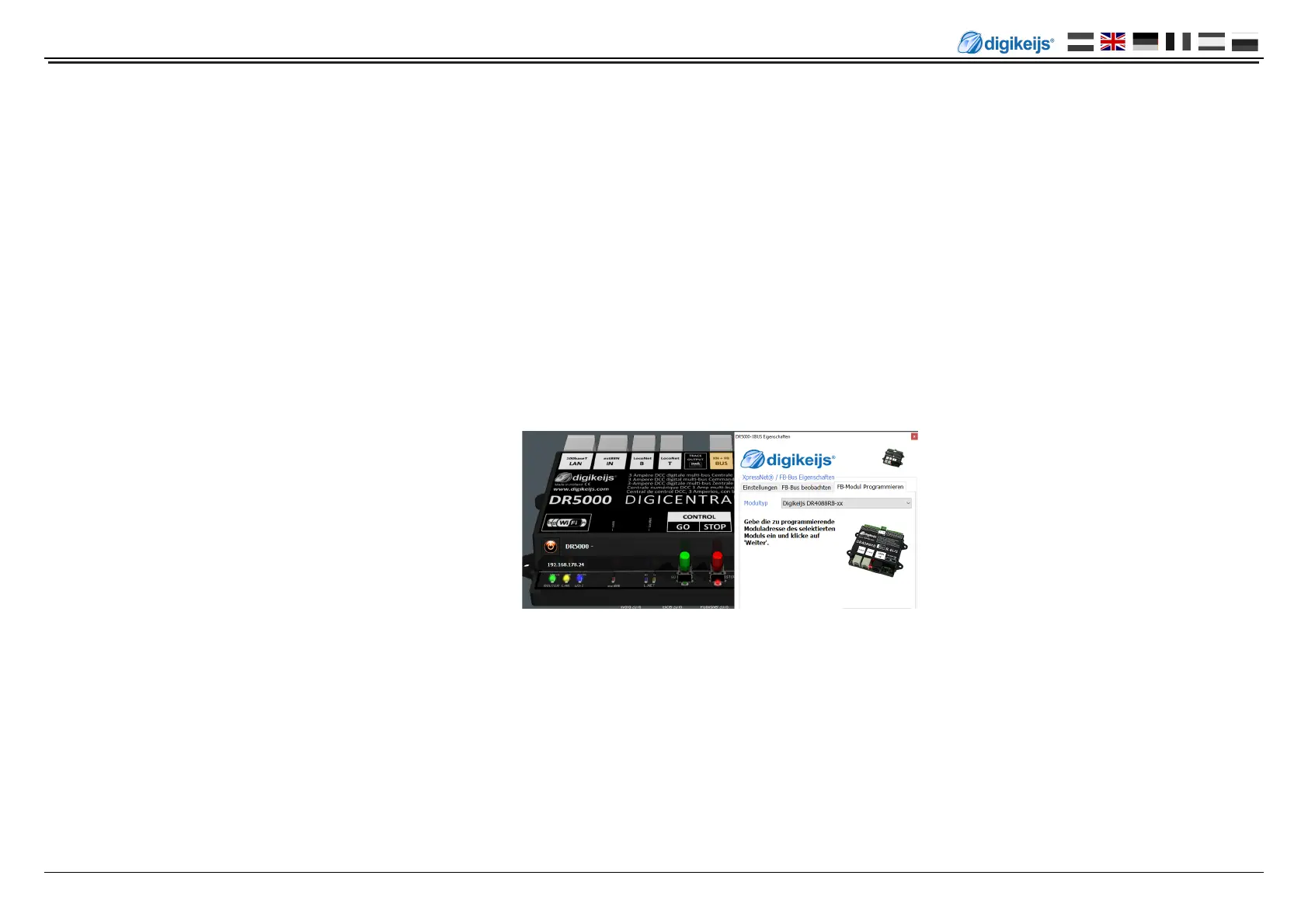

1. Open the DR5000 Tool
2. Properes Call XN-FB Bus
3. FB Call Programming Module
4. Now just follow the instrucons in the wizard.
Please refer to the instrucons above for programming the number of modules.
Example:
DR4088RB-xx —> DR4088RB-xx
Modul adress 1 Modul adresse 3
Number of modules = 2 Number of modules = 2
DR4088RB-xx —> DR4088RB-xx —> DR4088RB-xx DR4088RB-xx DR4088RB-xx
Modul address 1 Modul address 3 Modul address 5 Modul address 7 Modul address 9
Number of modules = 2 Number of modules = 2 Number of modules = 2 Number of modules = 2 Number of modules = 2
