IPEX5000 Series Quick Install Guide
10

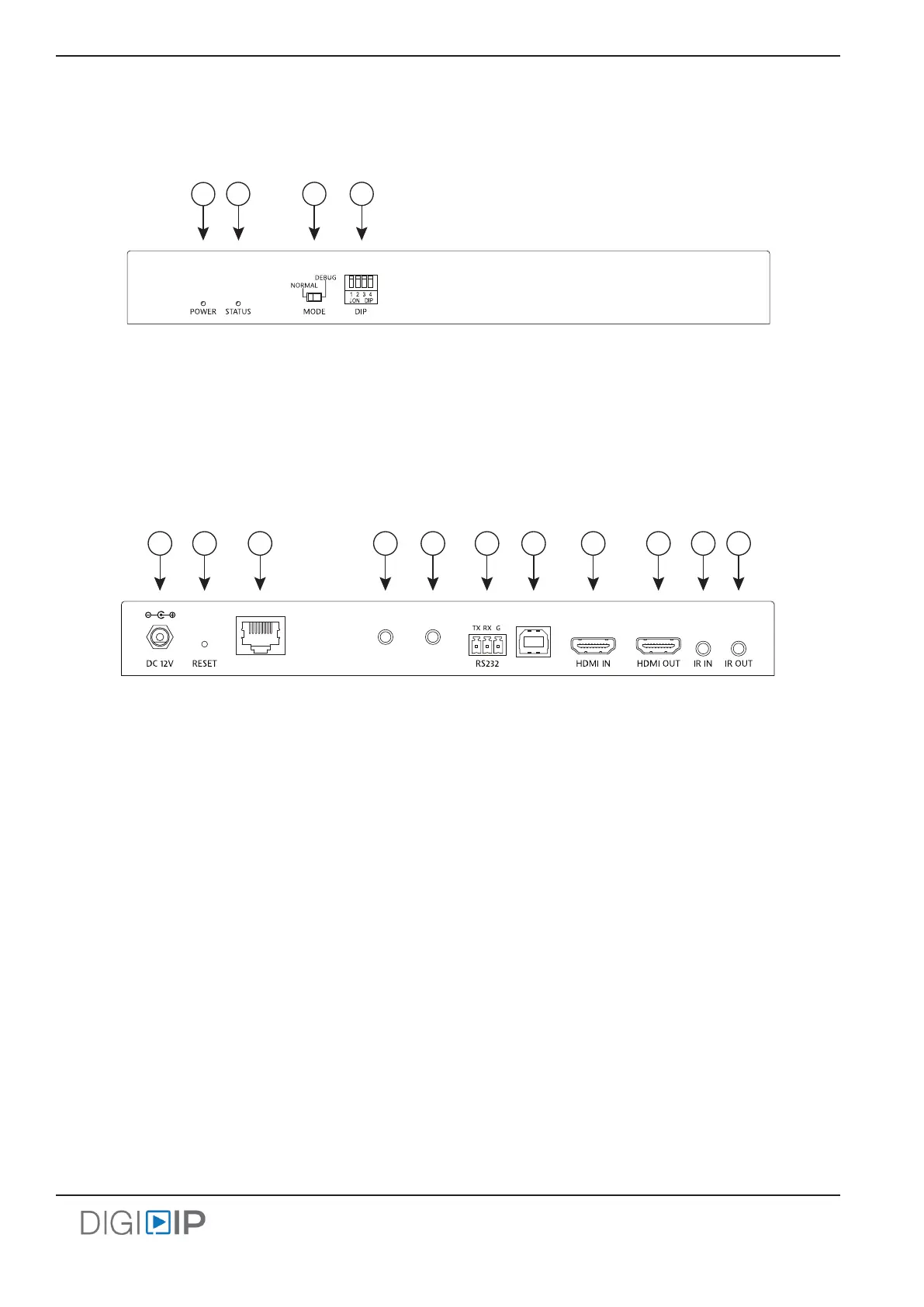

IPEX5001-D Front Panel
IPEX5001-D
1
2 3 4
1. Power indicator
2. Status indicator
3. RS232 Funcon Switch
4. DIP Switch for ID Modes
IPEX5001-D Rear Panel
A. 12V DC power input
B. RESET buon
C. LAN / Dante connecon with PoE support
D. Analog audio input
E. Analog audio output
F. RS232 connecon
G. USB Host connecon
H. HDMI input
I. HDMI output
J. IR input
K. IR output
IN
ANALOG AUDIO
OUT
USB HOST
LAN / Dante
A B C D E F G H I J K
