DigitaLinx IPEX5001-D - IPEX5002 Front Panel; IPEX5002 Rear Panel

IPEX5000 Series Quick Install Guide
11

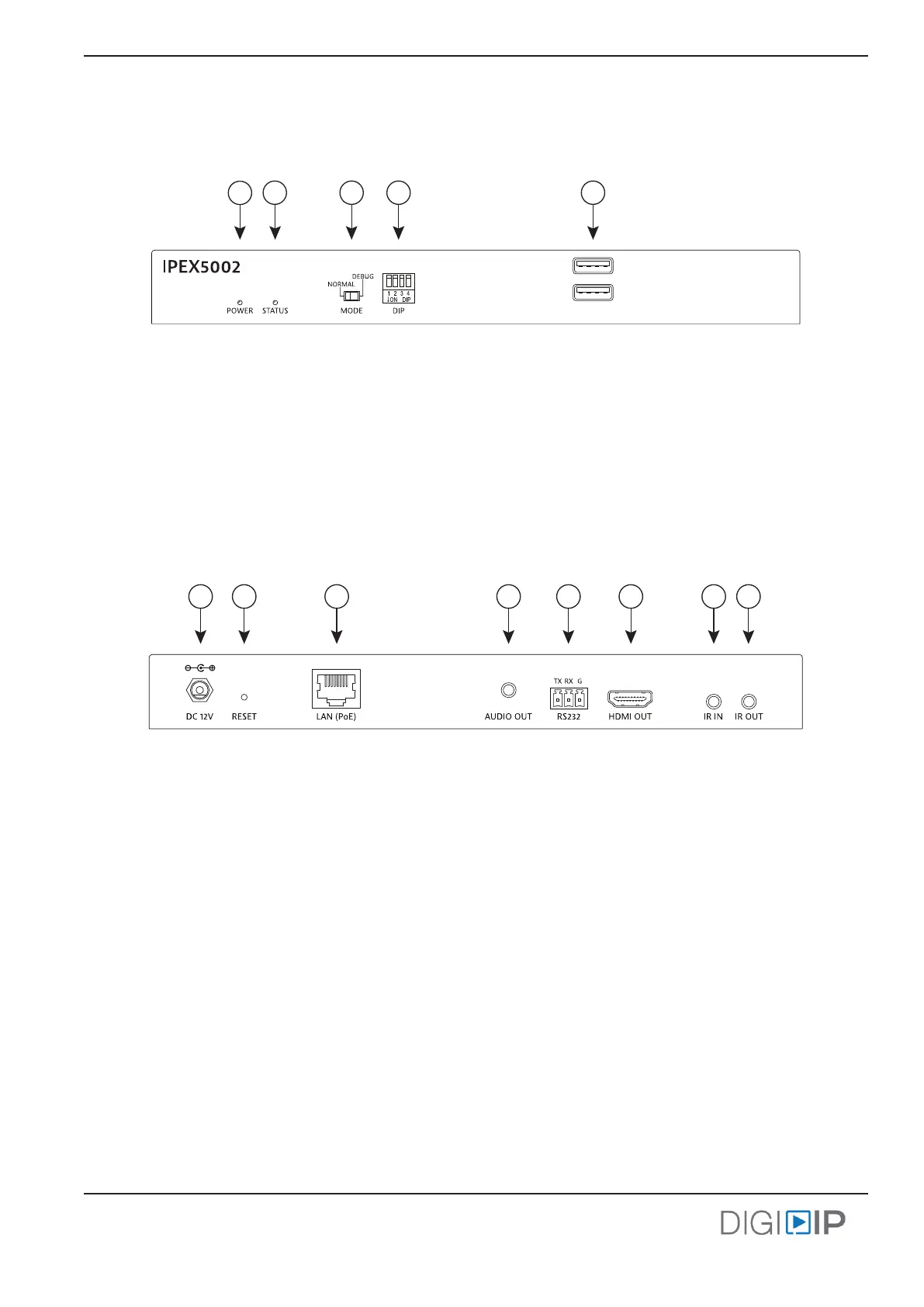

IPEX5002 Front Panel
USB DEVICE
1
2 3 4 5
1. Power indicator
2. Status indicator
3. RS232 Funcon Switch
4. DIP Switch for ID Modes
5. USB ports for keyboard or mouse
IPEX5002 Rear Panel
A. 12V DC power input
B. RESET buon
C. LAN connecon with PoE support
D. Analog audio output
E. RS232 connecon
F. HDMI output
G. IR input
H. IR output
A B C D E F G H
