MAKING CONNECTIONS/APPLYING POWER
To connect the Mosaic pedal to your rig:
1. Turn down the amplifier’s master volume control.
2. Make all audio connections to the Mosaic as shown below.
3. Connect the included Harman power supply to the POWER input connector and connect the other
end to an available AC outlet.
4. Strum your guitar and gradually increase your amplifier’s master volume control until the desired
level is achieved.

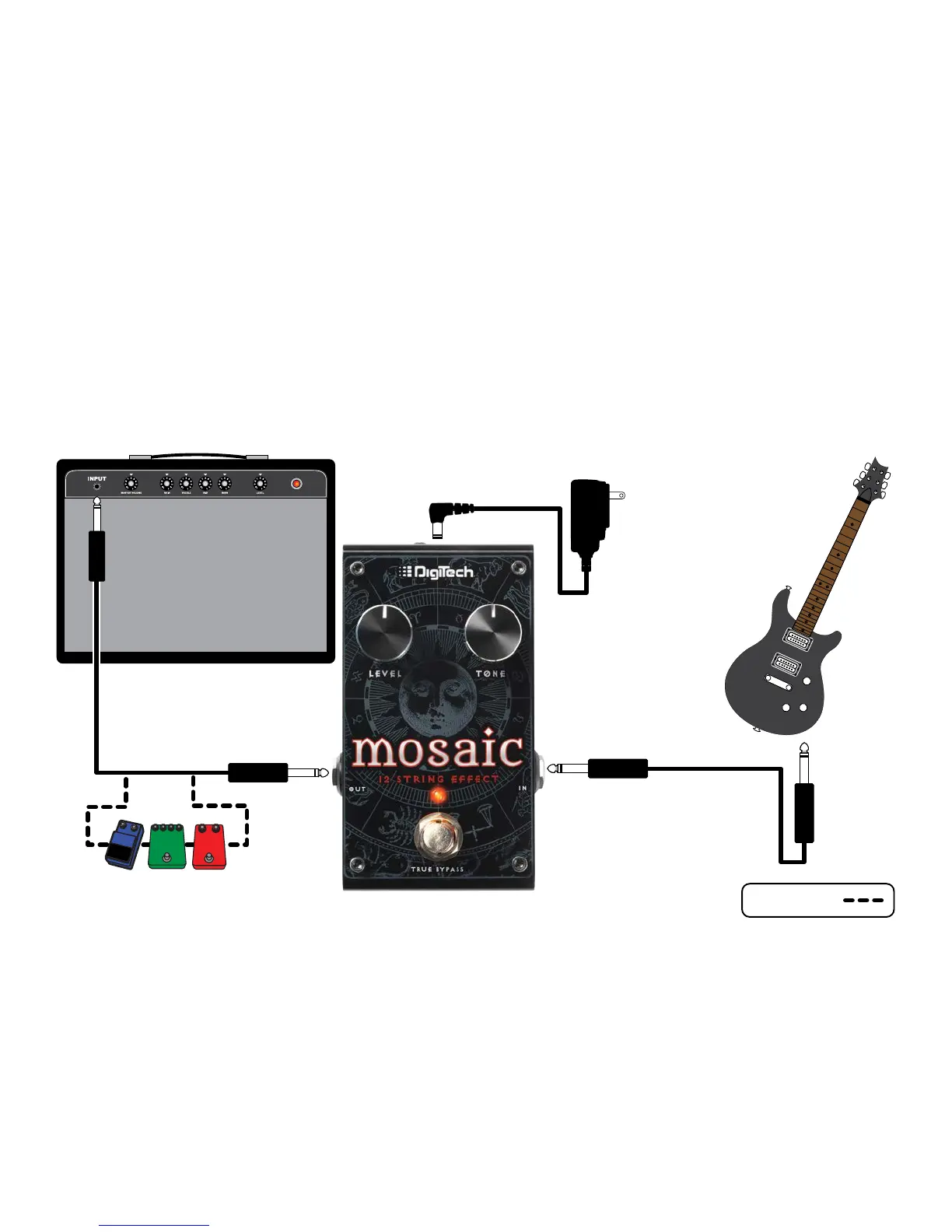

CONNECTION DIAGRAM
HARMAN PS0913DC
POWER SUPPLY
IN
IN
OUT
OUT
OPTIONAL
OTHER PEDALS
INOUT
Use unbalanced TS instrument cables only.
NOTE: The Mosaic should be the first pedal in your effects chain. Placing any effect in front of it may
impact its pitch shifting performance.
