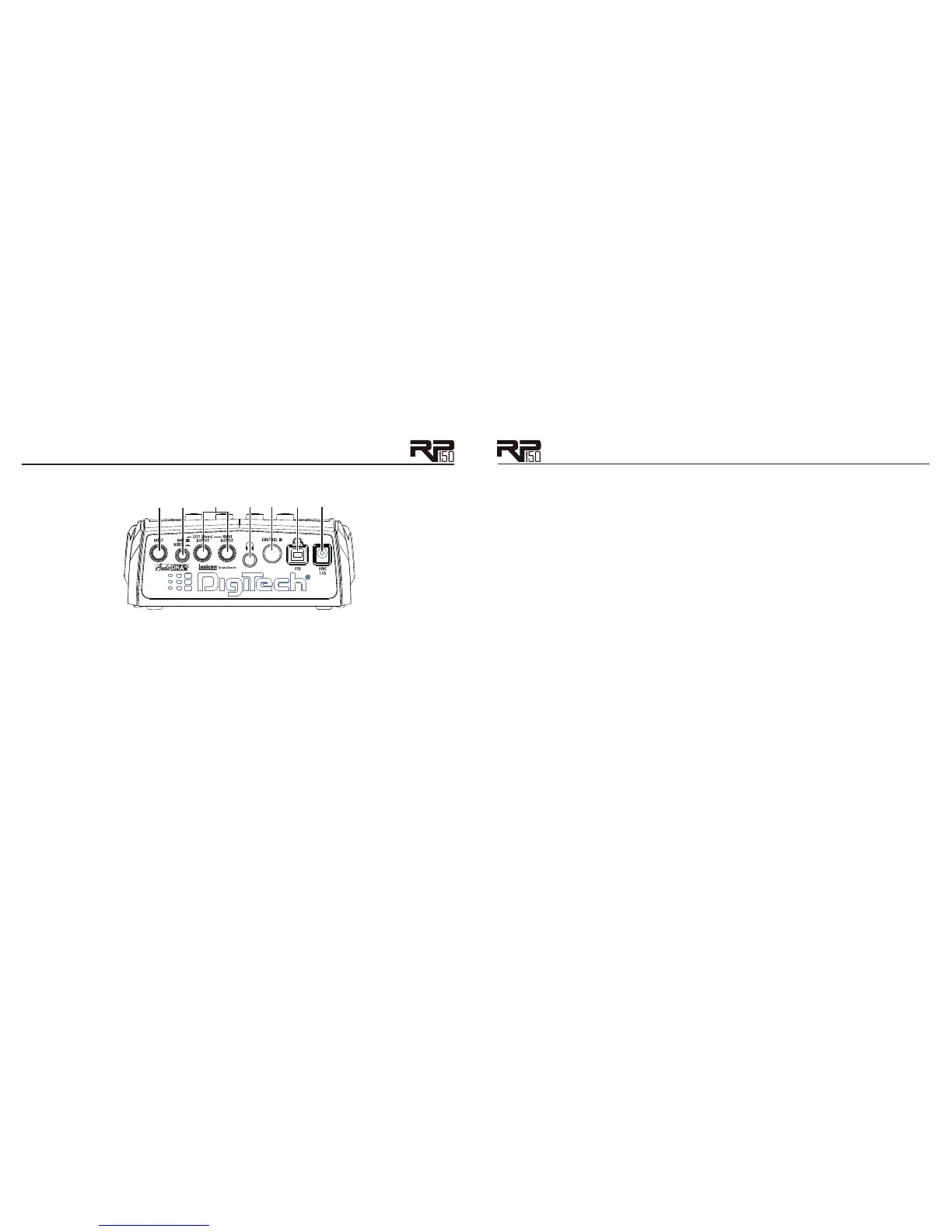

1. Input
Connect your instrument to this high-impedance TS input.
2. Amp / Mixer
This button optimizes the RP150’s outputs for use when plugged into a guitar amp or a mixer/
recording device. When set to Mixer (“In” position), the outputs are optimized for connecting
to a mixer, recording device or headphones. When set to Amp (“Out” position), the outputs are
optimized for running directly in to the input of a guitar amp.
3. Left (Mono) and Right Outputs
Connect the Left (Mono) output to the input of a single amplifier (or mixer input) for mono
operation. Connect the Left and Right outputs to the inputs of 2 amplifiers (or 2 mixer channels)
for stereo operation.
4. Headphones
Connect a pair of stereo headphones to this 1/8" jack. For proper frequency response, the Amp/
Mixer switch should be set to Mixer (“in” position) when using headphones. Headphones with an
impedence of 100 Ohms or less are recommended.
Note: The Headphones output can have either a mono or stereo signal, depending on what 1/4"
outputs are connected. If neither (or both) 1/4" outputs are connected, the Headphones output
will be in stereo. If a cable is connected to the Left (Mono) 1/4" output only, the Headphones
output will be in mono.
5. Control In
You can connect a passive volume or continuous control pedal to this 1/4" jack to control the a
Wah and/or the Whammy
TM
when either or both of those effects are turned on. When neither
Wah nor Whammy is turned on, the pedal controls the RP150’s volume by default.
6. USB Port
The USB port is for connecting the RP150 to a computer and serves two purposes: (1) for use
with the downloadable X-Edit™ Editor/Librarian software, and (2) for streaming audio to and
from the computer. Audio streaming is limited to 2 channels up and 2 channels down from the
computer at 44.1kHz, 16 bit and 24 bit. A utility panel in the Editor/Librarian controls the direct/
playback mix with any recording software the RP150 is connected to.
Note: You can download the X-Edit Editor/Librarian software and USB drivers at www.digitech.
com.
7. Power Input
Connect only the DigiTech
®
PS0913B power supply to this jack.
