The SPLIT1 and SPLIT2 Output Modes are designed for when you want to keep the guitar processing

isolated from mic, line, drums, and audio playback during live performance. The

SPLIT1 Output mode

routes guitar signal to the 1/4” outputs while the mic, line input sources, drums, and audio playback from

the computer are routed out the XLR outputs.

SPLIT2 is the same as SPLIT1 but the guitar signal with

Speaker Compensation is also routed out the XLR outputs.

SPLIT1 - Stereo guitar processing is routed to the 1/4” outputs without Speaker Compensation. Audio

playback from the computer, mic, and line sources are routed to the XLR outputs.

SPLIT2 - Stereo guitar processing is routed to the 1/4” outputs without Speaker Compensation. Stereo

guitar processing, audio playback from the computer, mic, and line sources are routed to the

XLR outputs with Speaker Compensation.

NOTE: Speaker Compensation may affect Mic and Line signals depending on which Output

Mode is selected.

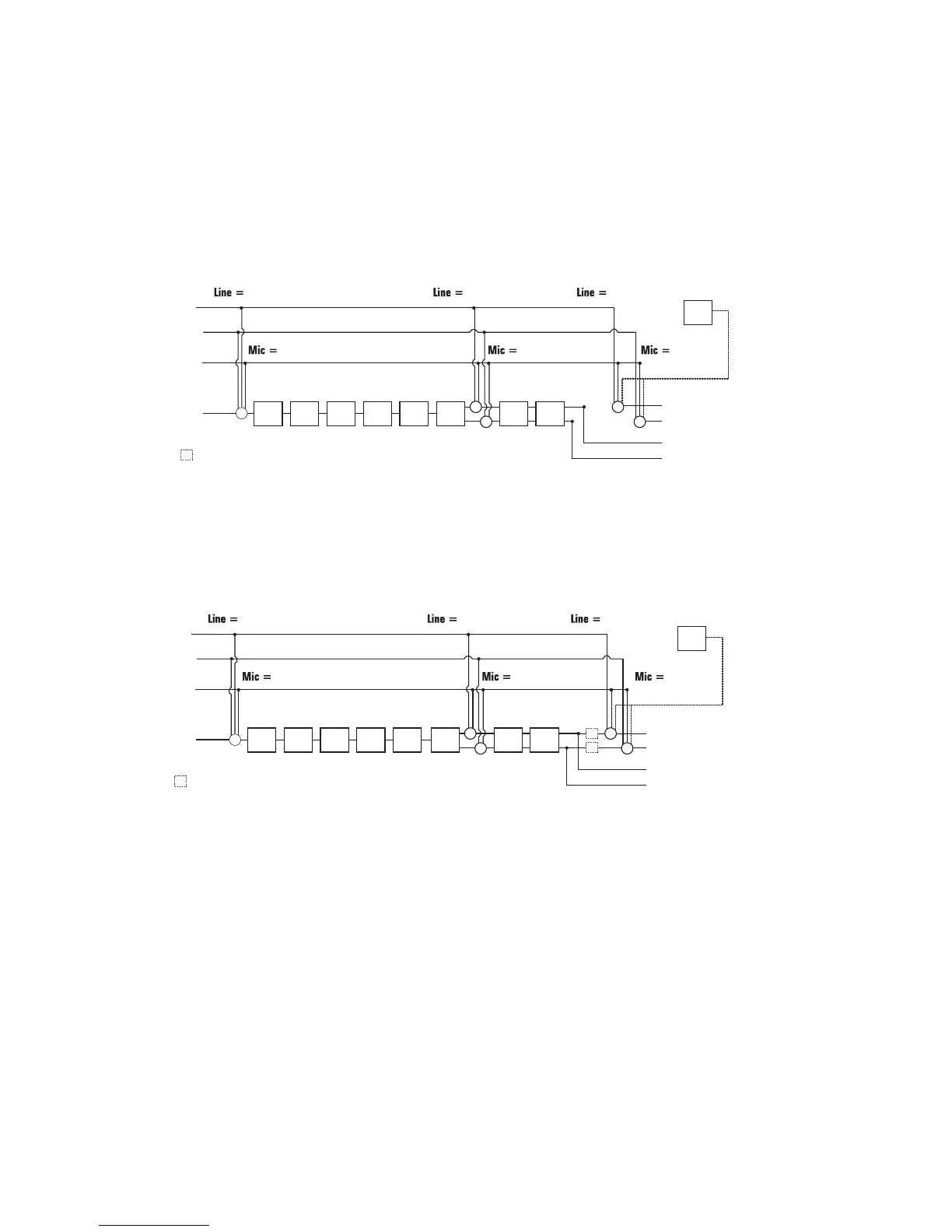

Mic Input
