5

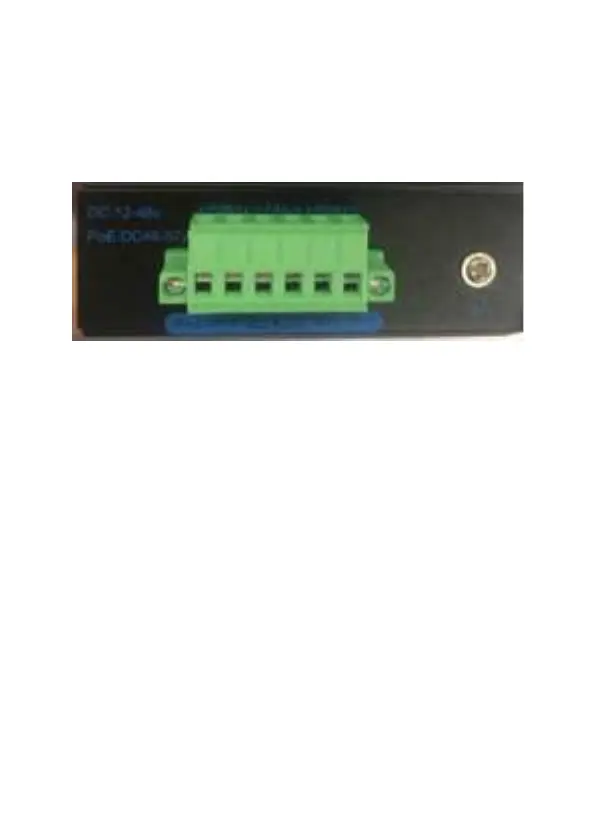

Upper Panel
The upper panel has a standard 6-Pin industrial power input
terminal for double redundant power backup and accepts DC
power input.
Power input
This unit provides a 6-pin terminal block. It can be operated
using 48-57 V DC power source. Always make sure your input
voltage is within this supported voltage range.
To connect power:
This unit supports two power inputs. Follow the printed
polarity for +P1-, +P2- and ground. Connect positive wires to
V+, connect negative wires to V-, and connect a neutral wire
to the ground mark.
+P1- is for power input one connection (PWR1).
+P2- is for power input two connection (PWR2).
