1. Overview
Industrial Ethernet switch with 4-Port 10/100Mbps RJ45 +1 Port
100Mbps base-FX, the Product meet CE, RoHS standards. Switch has
the operating temperature of -40°C ~ 80°C, has the super firmness can
adapt to all kinds of harsh environment, can also be conveniently
placed in the compact space of the control box. The installation
characteristics of the guide rail, wide temperature operation, IP40
protection class housing and LED indicator light, make the switch a
plug and play industrial grade device, providing a reliable and
convenient solution for users to network their Ethernet devices.
2. Switch Panel

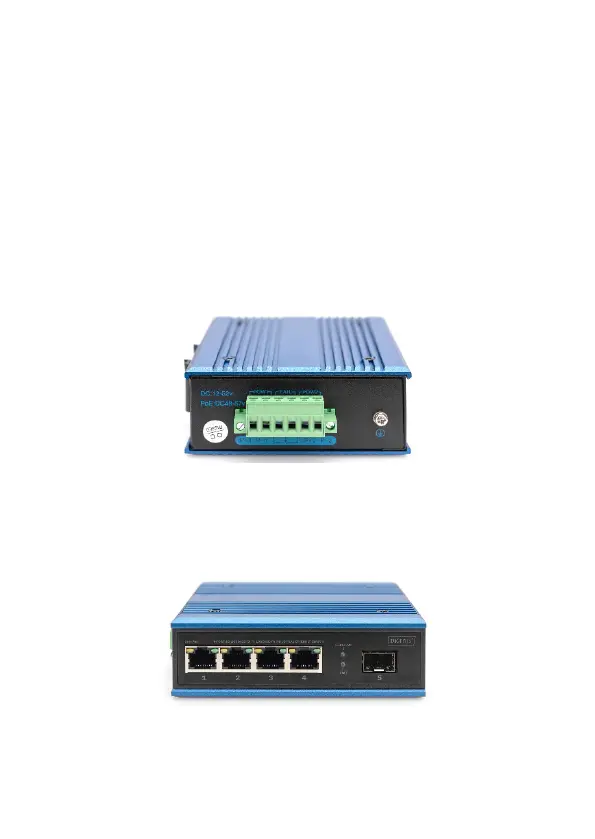

Side panel: P1 and P2 are the number of connecting terminals, P+1 and
P-1 are respectively to the positive and negative poles to be connected;
Earthing screw, used for Earthing equipment.
Front panel: The orange light on the port is the LINK light, which is on
when the connection is established and the data transmission is
flashing.
