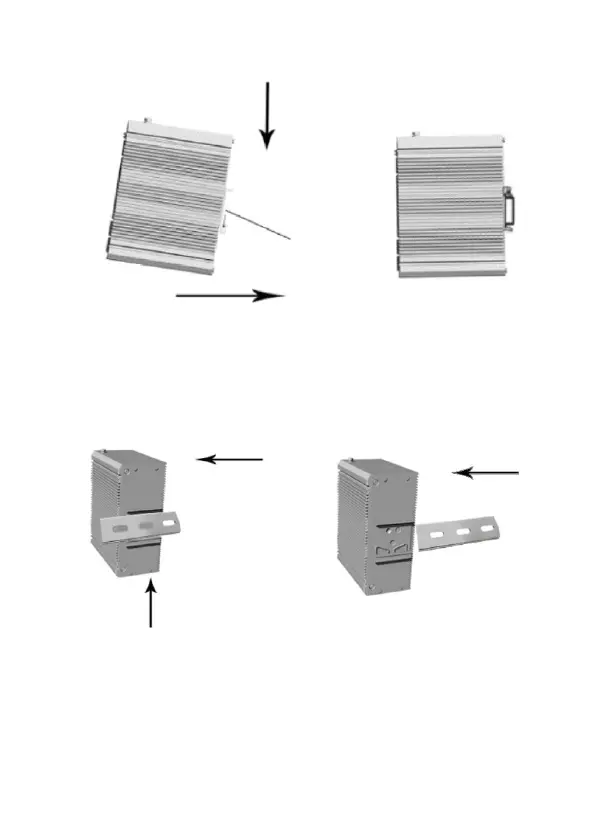

Figure 4-1 Schematic diagram of industrial machine guide rail
installation
Note: Aluminum alloy DIN-Rail hooks have been fixed to the rear panel
of the Switch.
Figure 4-2 Schematic diagram of industrial machine guide rail
disassembly
DIN-Rail
