4. Switch Panel

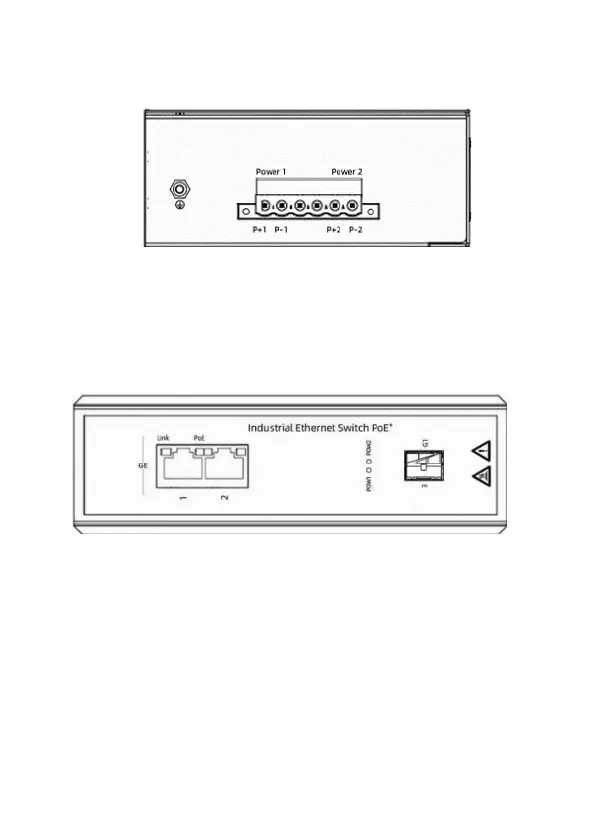

DN-652120 Side panel: P1 and P2 are the number of
connecting terminals, P+1 and P-1 are respectively to the
positive and negative poles to be connected; Earthing screw,
used for earthing equipment.
DN-652120 Front panel: The yellow light on the port is the
LINK light, which is on when the connection is established,
and the data transmission is flashing. The green light is PoE
light, which is only on when the switch port is supplying
power to the PD devices. Power indicator light is on when
connecting with Power.
