7
SFP ports (SFP1, SFP2):
The interface card provides an interface so that you can insert a
transceiver module (SFP) into the interface and connect it to the
interface of another switch with cables. Each has a corresponding
Link/Act LED.

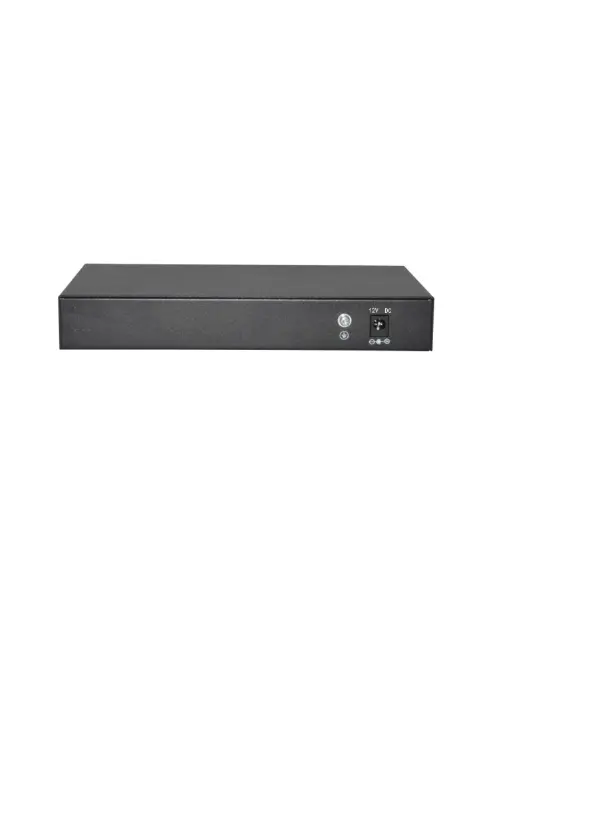

Rear Panel
The rear panel of the Switch contains one Grounding Terminal
and DC power adapter
Grounding Terminal:
Located on the right side of the power supply connector, use wire
grounding to lightning protection.
DC Power Connector:
Powered by the external power adaptor, 12V/1A spark-proof
external power supply.
