DIGITUS POE Web Smart Ethernet Switch
9

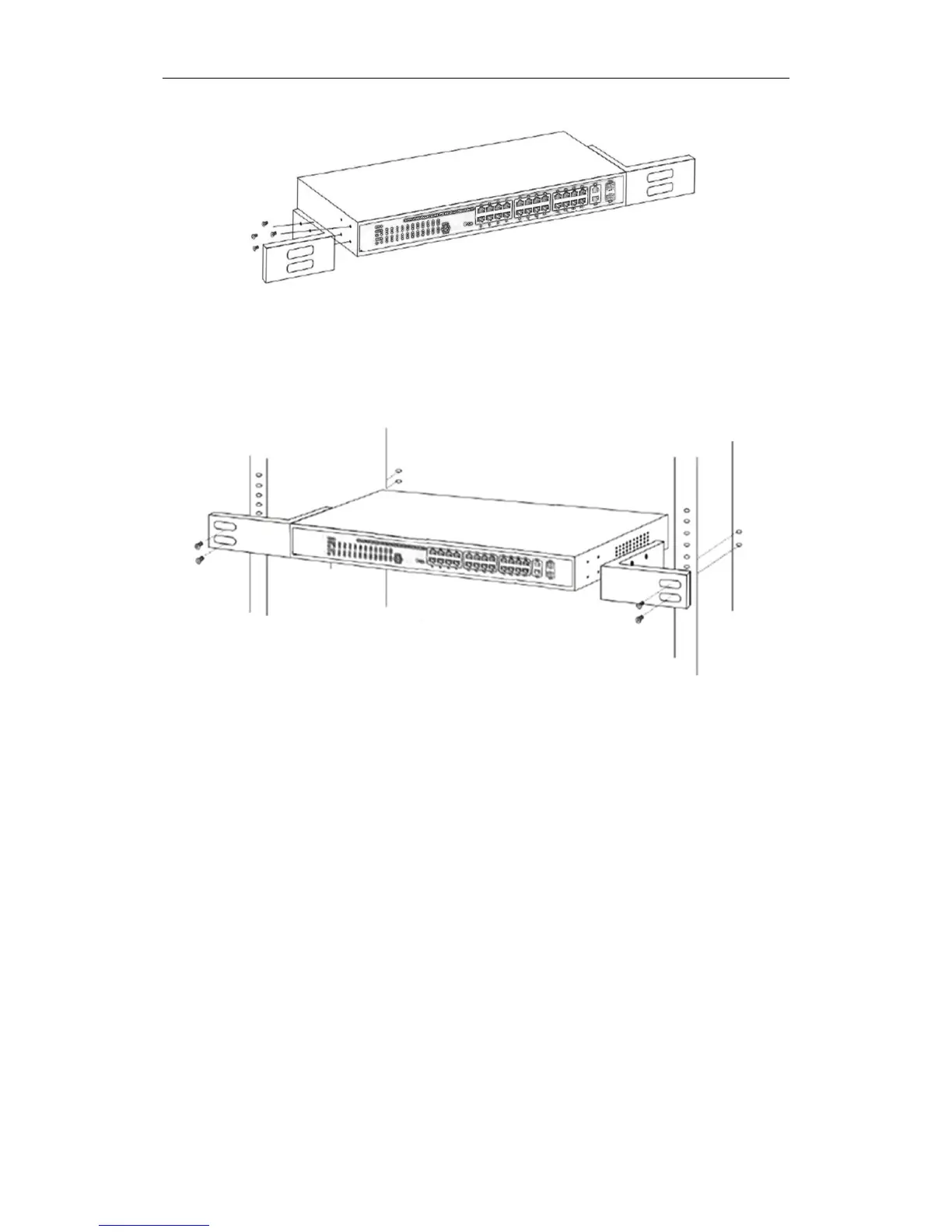

Figure 5 - Bracket Installation
2．Use the screws provided with the equipment rack to mount the Switch on the rack and
tighten it.
Figure 6 - Rack Installation
2.1.3 Power on the Switch
The Switch is powered on by the AC 100 ~ 240V 50 / 60Hz internal high-performance power
supply. Please follow the next tips to connect:
AC Electrical Outlet:
It is recommended to use single-phase three-wire receptacle with neutral outlet or
multifunctional computer professional receptacle. Please make sure to connect the metal
ground connector to the grounding source on the outlet.
AC Power Cord Connection:
Connect the AC power connector in the back panel of the Switch to external receptacle with
the included power cord, and check the power indicator is ON or not. When it is ON, it
indicates the power connection is OK.
