1.3.6 LED Indicator Specification
The LED indicators of the Switch contain one Power, 26 LINK/ACT, 24 PoE status and 2
Speed. The LED Indicators will allow you to monitor, diagnose and troubleshoot any
potential problem with the Switch, connection or attached devices.

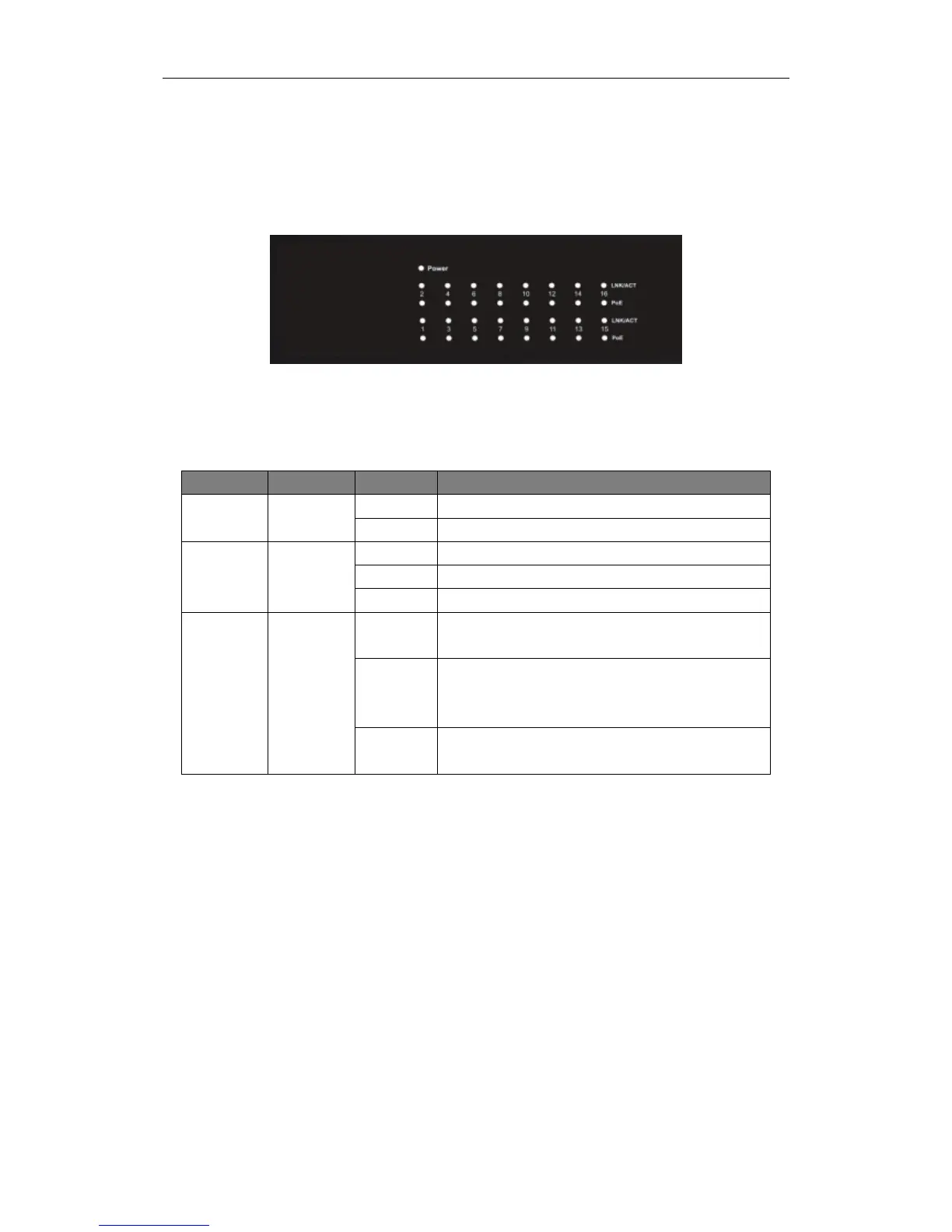

Figure 3 - LED Indicators
The following chart shows the LED indicators of the Switch along with explanation of each
indicator.
LED COLOR STATUS STATUS DESCRIPTION
Power Green
On Power On
Off Power Off
LINK/ACT
(1~16)
Green
On A device is connected to the port
Off A device is disconnected to the port
Flashing Sending or receiving data
POE Orange
On
A Powered Device is connected to the port,
which supply power successfully.
Off
No Powered Device connected to the port, or
no power is supplied according to the power
limits of the port.
Flashing
The POE power circuit may be in short or the
power current may be overloaded.
1.4 Environment
Operating Temperature: 0℃~40℃
Storage Temperature: -10℃~70℃
Operating Humidity: 10%~90% non-condensing
Storage humidity: 5%~90% non-condensing
1.5 Package Contents
One POE Web Smart Ethernet Switch
Four rubber feet, two mounting ears and eights screws
One AC power cord
One User Manual
