DIGITUS POE Web Smart Ethernet Switch
23
In tag base mode, adding or removing tag doesn’t affect the source port connected with the
web.

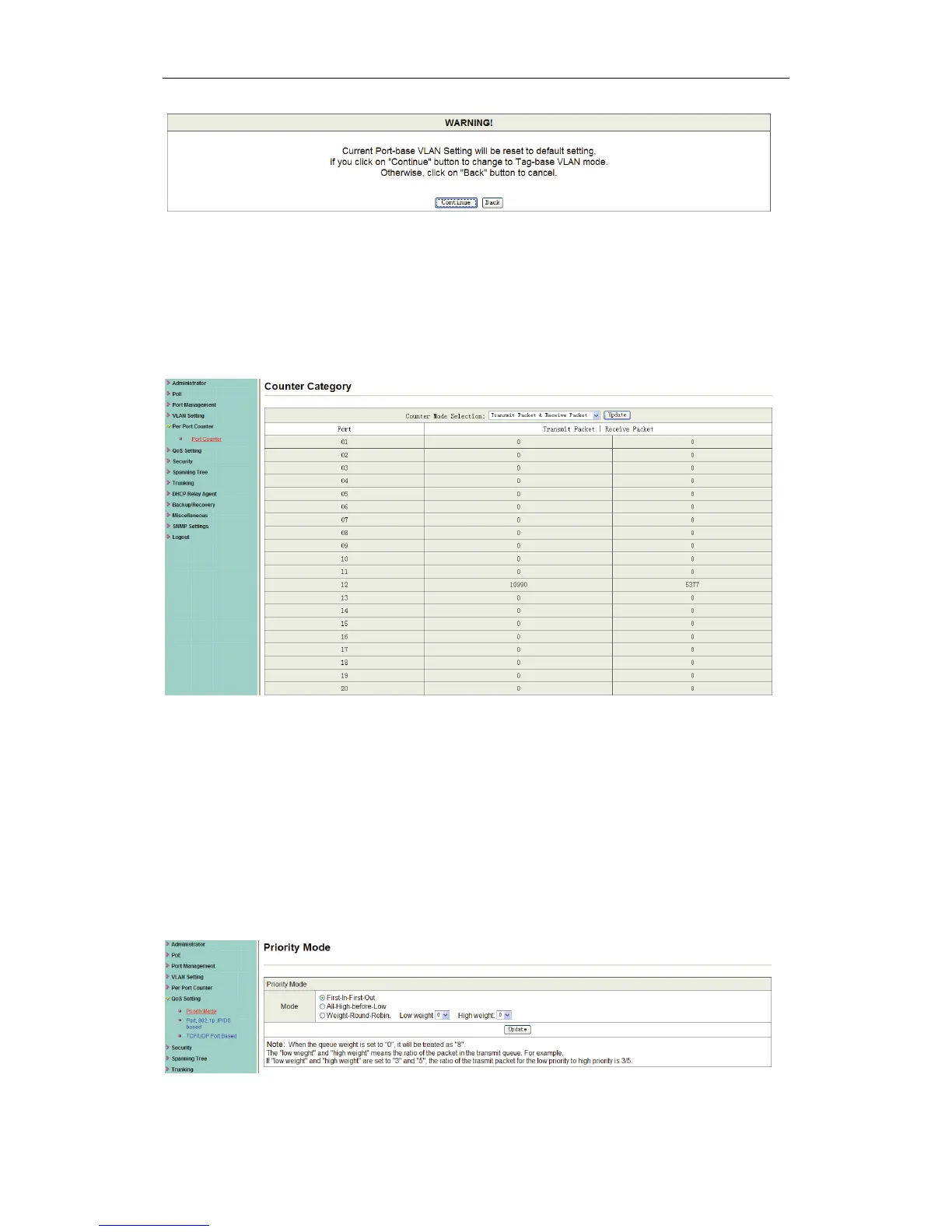

4.5 Per Port Counter
This page provides port counter for each port. There are 4 groups of statistics in total.
(2
4-port version view)
4.6 QoS Setting
4.6.1 Priority mode
This page allows the user to set the scheduling mode for the TX packets priority. When the
queue weight is set to "0", it will be treated as "8".The "low weight" and "high weight" means
the ratio of the packet in the transmit queue. For example,If "low weight" and "high weight"
are set to "3" and "5", the ratio of the transmit packet for the low priority to high priority is 3/5.
