Digitus DS-55100-1 User Manual

5
③ HDMI signal indicator led: it lights on all the time when
HDMI signal input, flashes when no signal input
④ Reset button
⑤ DC 5V power input
⑥ HDMI signal output
⑦ EDID switch
⑧ HDMI signal input

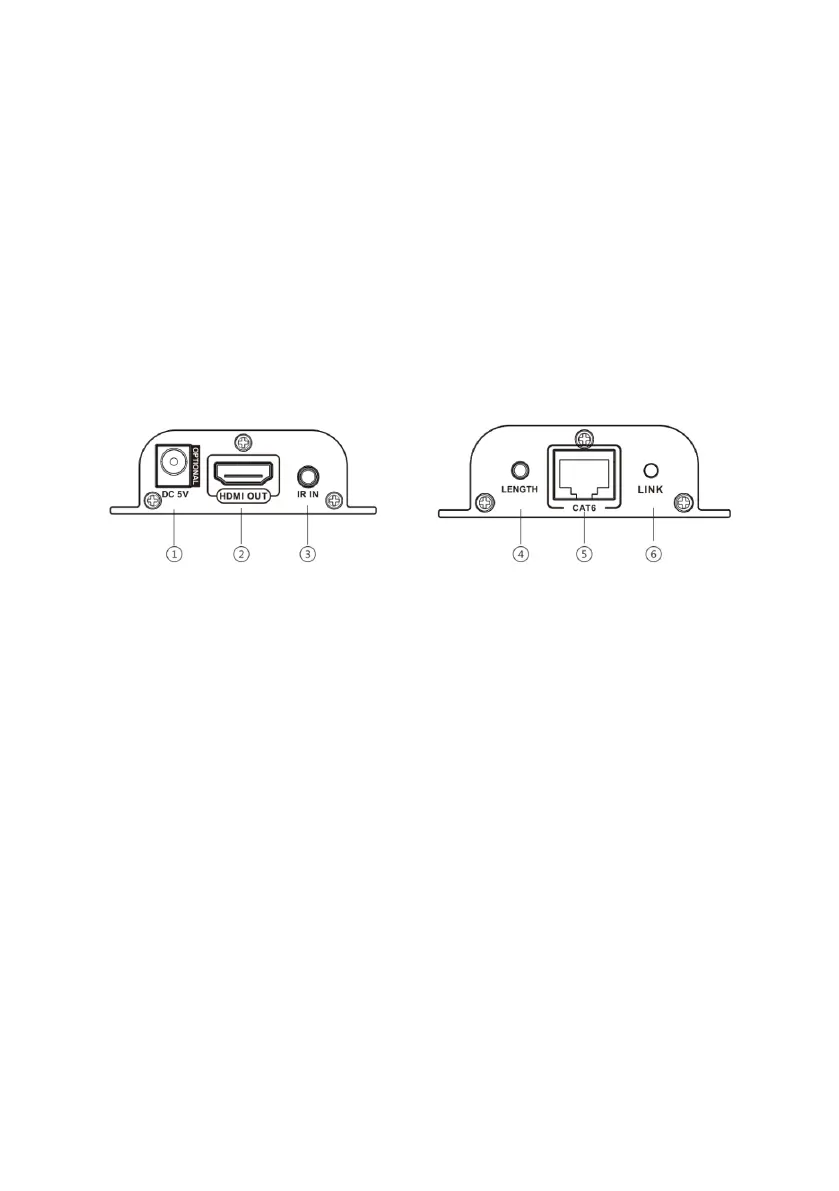

Receiver unit (RX)
① DC 5V power input
② HDMI signal output
③ IR signal input to connect with IR receiver extension cable
④ LENGTH: for adjusting to the length of network cable
⑤ RJ45 signal input
⑥ RJ45 indicator led: it lights on all the time when HDMI
signal transmission, flashes when no signal transmission

Digitus DS-55100-1 Specifications

General

HDMI in	1
DC-in jack	Yes
Number of HDMI outputs	2
Connectivity technology	Wired
Type	AV transmitter & receiver
Material	Metal
Color depth	8 bit
Product color	Black
Maximum resolution	1920 x 1080 pixels
Maximum refresh rate	60 Hz
Cable types supported	Cat6, Cat6a, Cat7
Supported video modes	1080p
Maximum transfer distance	50 m
Package depth	200 mm
Package width	150 mm
Package height	80 mm
Package weight	1150 g
Package volume	2400 cm³
Country of origin	China
UK Trade Tariff code	85176200
Master (outer) case width	315 mm
Master (outer) case height	420 mm
Master (outer) case length	425 mm
Master (outer) case volume	56227 cm³
Master (outer) case weight	11500 g

Weight and Dimensions

Receiver dimensions (WxDxH)	67 x 72 x 23 mm
