Digitus DS-55202 User Manual

7
3
USB
7
TV
4
Transmitter TX
8
keyboard/ mouse
NOTE: Point to multi-point connection via switch is supported
too, but under point to multi-point configuration, it is strongly
recommended to operate KVM function on one receiver only at
the same time.

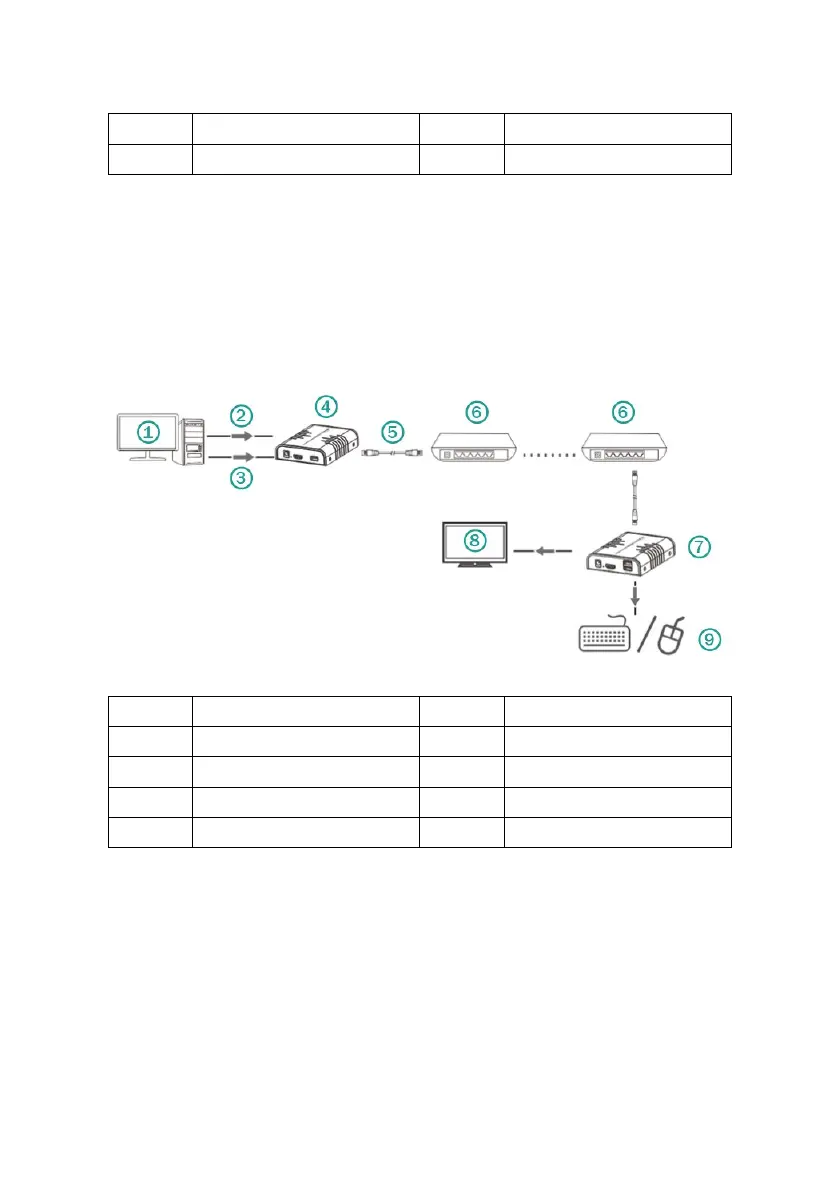

6.2 Over IP Connection Diagram
1
PC
6
Switch
2
HDMI
7
Receiver RX
3
USB
8
TV
4
Transmitter TX
9
keyboard/ mouse
5
cable
NOTE: Transmission distance depends on type of network cable,
CAT5: 80m, CAT5E: 100m, CAT6: 120m.

Digitus DS-55202 Specifications

General

Brand	Digitus
Model	DS-55202
Category	Extender
Language	English
