Digitus DS-55202 - Connection

6
⑤ Power input (DC5V)
⑥ HDMI signal input
⑦ USB port: to connect with PC

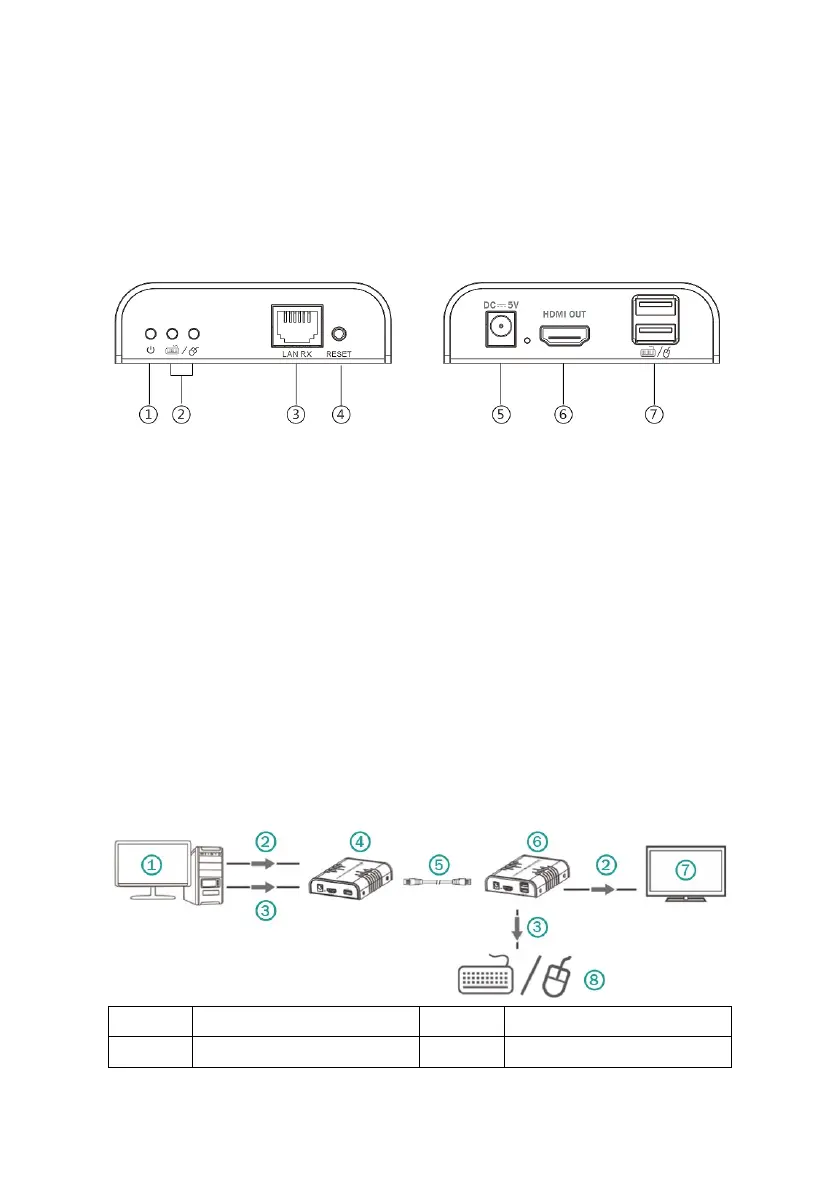

Receiver unit (RX)
① Power indicator
② USB connection indicator
③ LAN signal input
④ Reset button
⑤ Power input (DC5V)
⑥ HDMI signal output
⑦ USB port: to connect with keyboard/mouse
6. Connection
6.1 General Connection Diagram
Transmission distance can be up to 120 meters for 1080p over
one CAT6
1
PC
5
cable
2
HDMI
6
Receiver RX
