4. HOW TO MEASURE VALVES
It is very important to supply dimensions as described below as well as pressure, temperature and medium information,
to request or purchase the exact valve as per your needs.

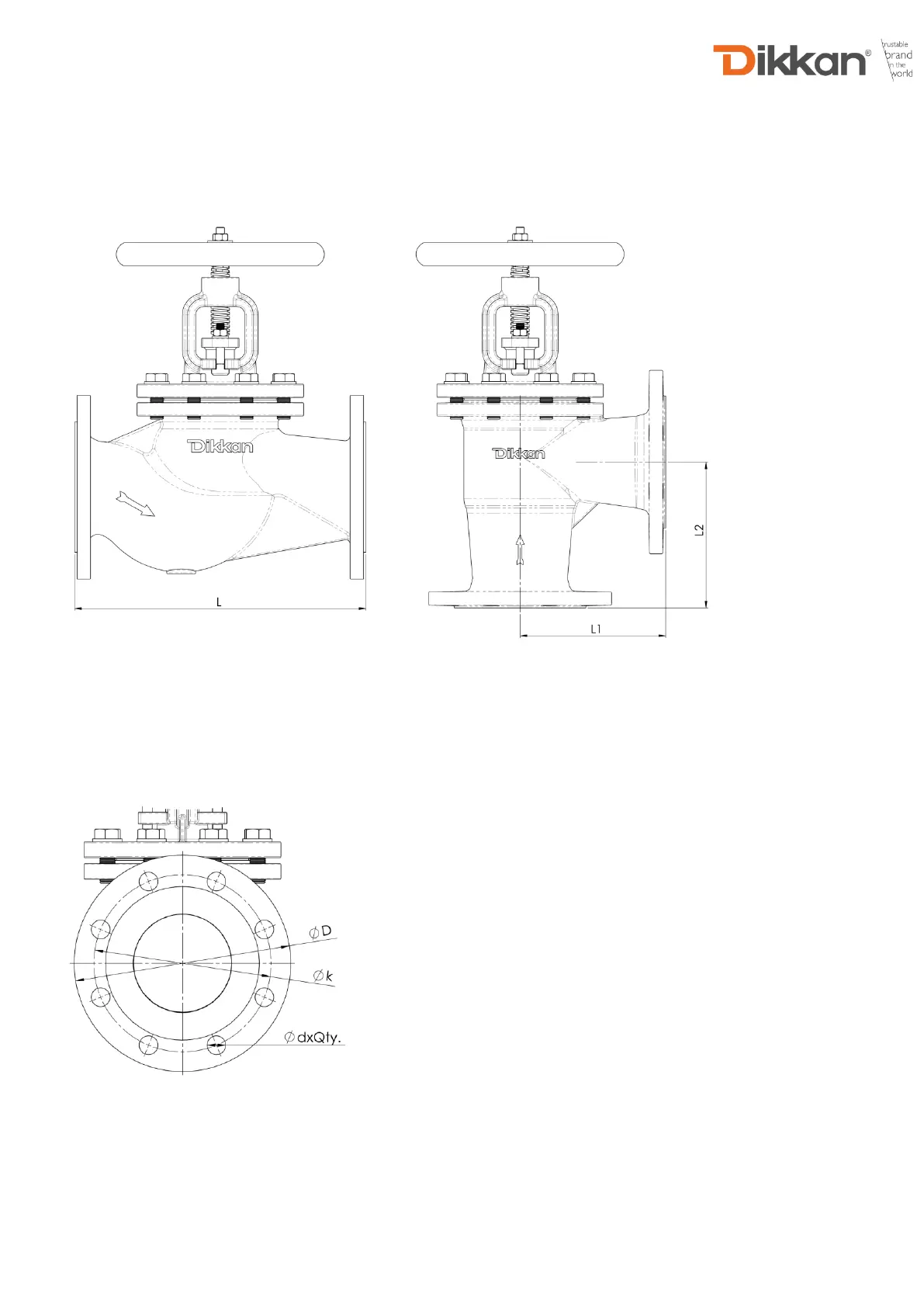

ØD: Outside Flange Diameter
Øk: Hole Circle Diameter
ØdxQty.: Diameter of Bolt Holes x Number of Bolt
Holes
L: Face to Face Length
L1 / L2: Face to Center Length
(Raised face is included in
length)
