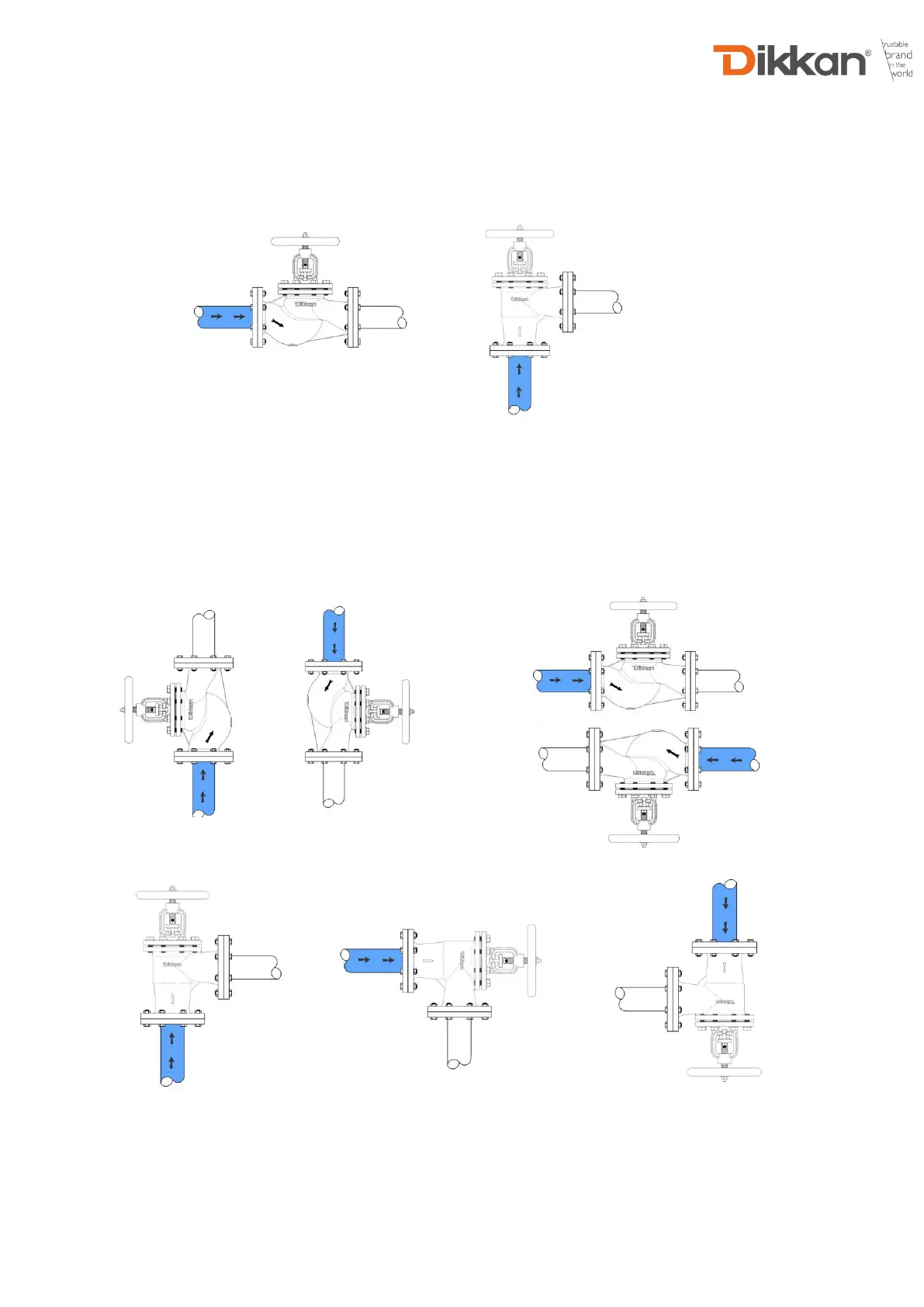

7.1 Installation Position
SDNR Type;
SDNR type valves without spring can only be installed in horizontal pipes in a vertical position
Stop Type;
Stop type globe valves can be installed in any position. However, the best installation position is with the stem pointing
vertically upwards.
