Advanced Force Gauge User’s Manual
32

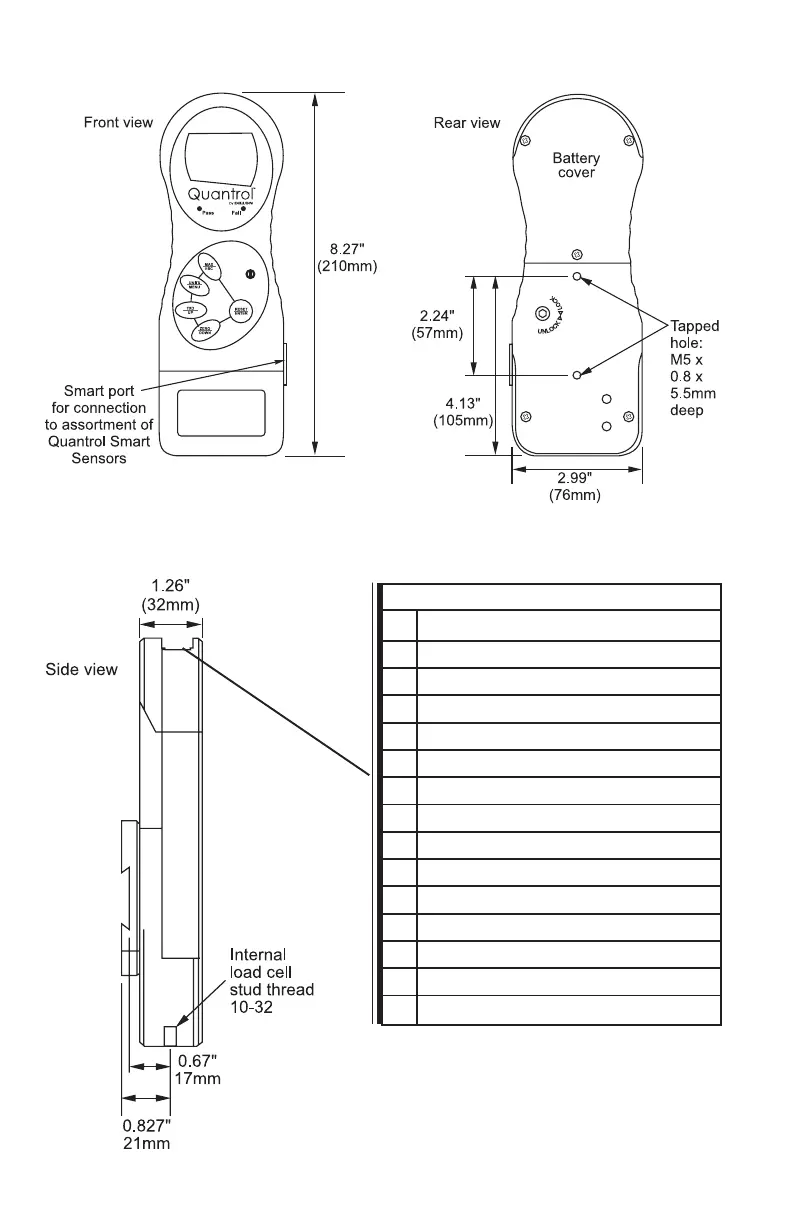

AFG Mk 3 D Connector Pin Out:
1* Analog Output
2 RS232 Transmit
3 RS232 Receive
4 Mitutoyo Clock Output
5 Mitutoyo Ready Output
6 + 5 Volts
7* FREEZE Reading Input
8 Stand Reverse UP
9* Footswitch 2 Input/SMART -ve out
10 Ground
11 Mitutoyo Request Input
12 Mitutoyo DATA Output
13* Footswitch 1 input
14* PLC Output
15 Stand reverse DOWN
* Shown with
dovetail mounting
bracket (supplied
with Dillon Test
Stand)
*
Allocation for the pins on the Male 15-pin
D-type communication connector.
* Uses ground (pin 10) to complete
circuit.
