Disassembly of the worktop must only be done by a qualified service technician.
In case it is necessary to repair or replace the inside components, the technician
should follow the instructions below :

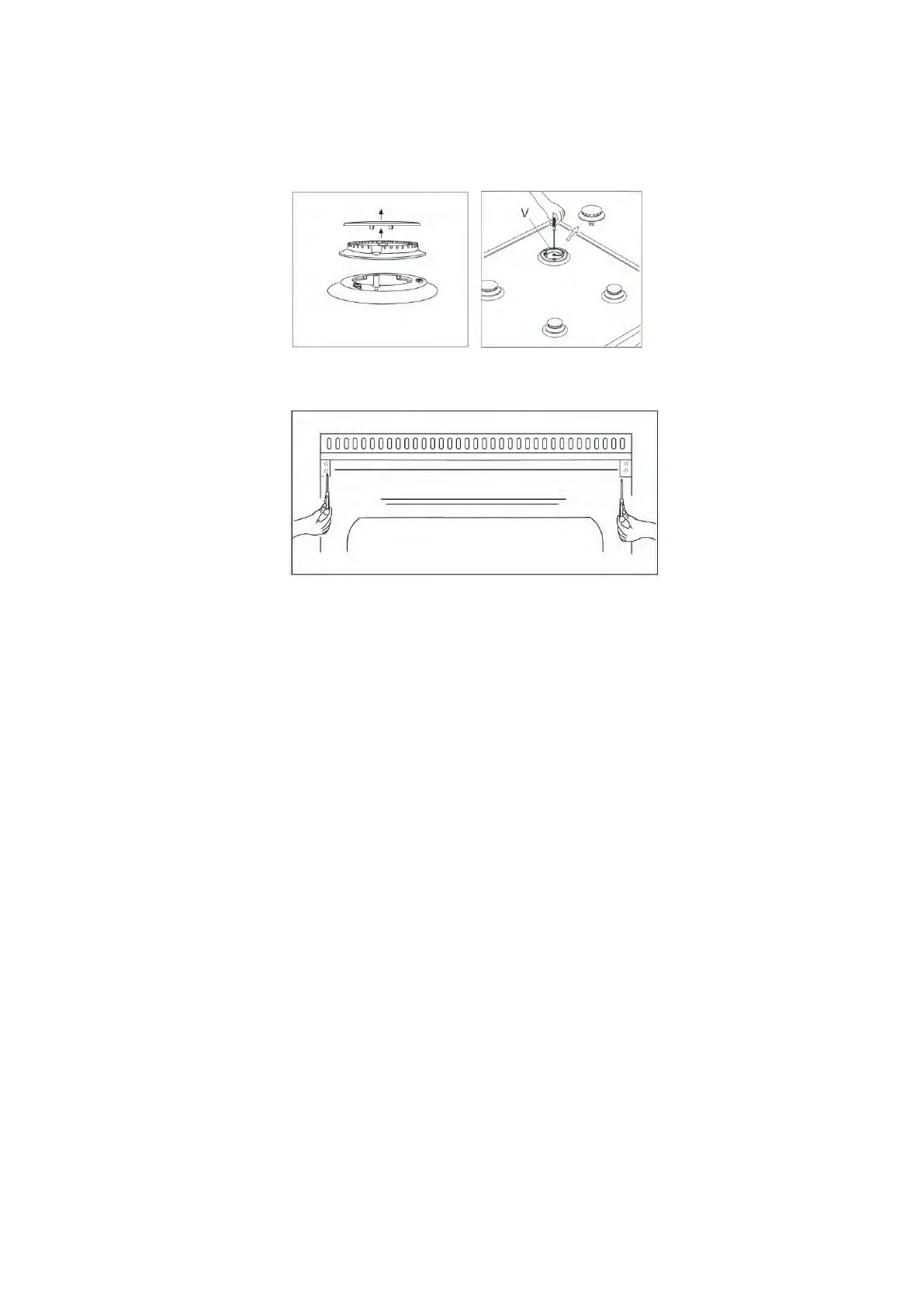

Remove the trivets, remove the burner caps and rings, unscrew visible screws and
nozzles.
Disassemble the worktop by unscrewing the rear screws. In this way it is possible to lift
the worktop and to reach the inside components.
Page 31
