Dimplex B075E User Manual

16

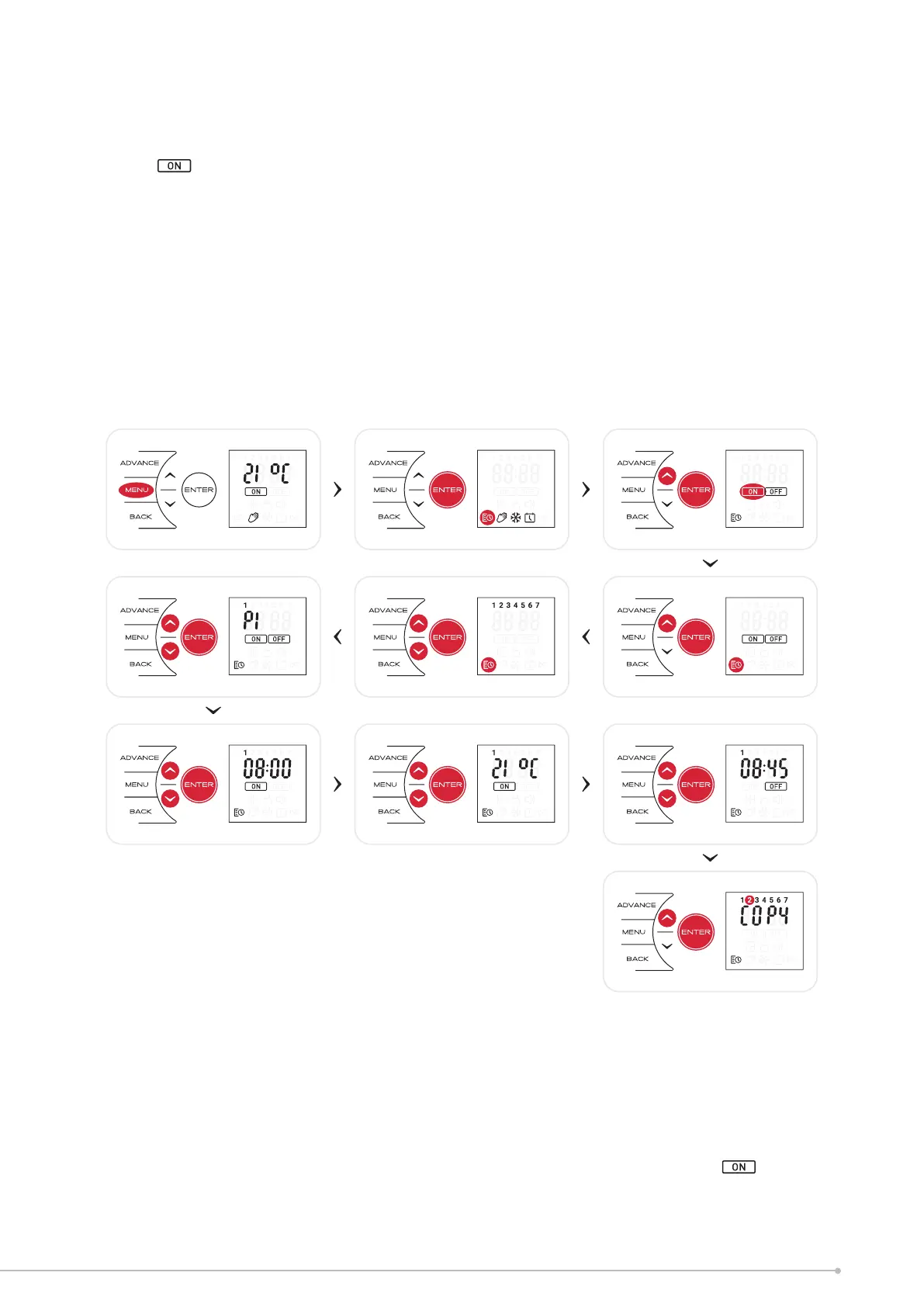

1. P1 will be displayed on screen
2. Press Enter to select P1, to navigate to P2, P3 or P4 press Up and press Enter to select
3.
will be highlighted, press Enter to set the on Time
4. Press Down or Up to adjust the on Hour time, press Enter to Con rm
5. Press Down or Up to adjust the on Minute time, press Enter to Con rm
6. Press Down or Up to adjust the Temperature setting, press Enter to Con rm
7. Press Down or Up to adjust the off Hour time, press Enter to Con rm
8. Press Down or Up to adjust the off Minute time, press Enter to Con rm
Press Enter to modify Programme P2, follow steps 1-8, Press Up to skip to P3
Press Enter to modify Programme P3, follow steps 1-8, Press Up to Skip to P4
Press Enter to modify Programme P4, follow steps 1-8
Once P1-P4 heating programmes have been set, COPY
will  ash on the screen. To copy newly programmed P1-P4
heating programmes to other days press the Enter button.
COPY will be displayed on screen and the next day in sequence
will  ash at the top of the screen, To copy to the next day in the
sequence, press Up button, to deselect the next day in sequence press Enter button.
The days of the week that are selected will be displayed at the top of the screen.
The days that have been deselected will not be visible (see Diagrams).
Press Enter to con rm, backlight will  ash and return to the User Timer screen. With
highlighted press the Enter Button to activate User Timer, the backlight will  ash and the
screen will return to the home screen.
