Dimplex DF3033ST Service Manual

6

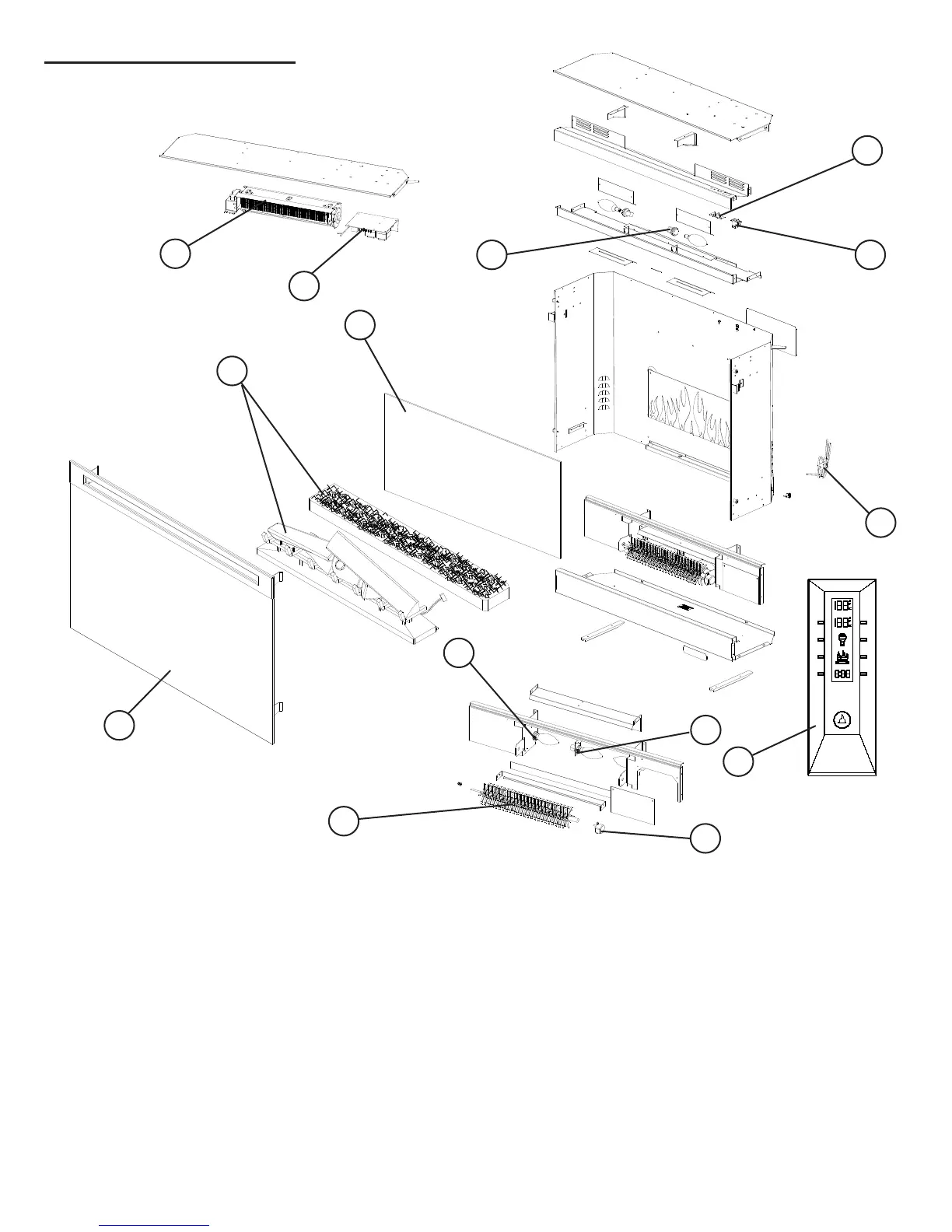

Exploded Parts Diagram
Replacement Parts List
30” Urethane Log Set1. . . . . . . . . . . . . . . . . 0439070100RP
DFG3033 - Media Tray ...............0440410100RP
Flicker Motor 2. . . . . . . . . . . . . . . . . . . . . . . 3000240200KIT
Heater Assembly (with cutout) 3. .........2000330200RP
On/Off Switch 4. ......................2800070200RP
Power Cord 5. . . . . . . . . . . . . . . . . . . . . . . . 4100040300RP
Upper Light Harness6. .................2500400500RP
Lower Light Harness (outer pair)7. . . . . . . . 2500400300RP
Lower Light Socket (center)8. . . . . . . . . . . . 2500150300RP
Partially Reective Glass9. . . . . . . . . . . . . . 5900910100RP
Front Glass with trim10. .................1015270159RP
DCF44GS - Front Glass with trim .......6905870200RP
Remote Switchboard11. ................3000300300RP
Flicker Rod 12. .......................5901250100RP
Remote Control 13.
DF3033ST Mod 0-D, DCF44GS Mod 0-B, DFG3033 Mod 0-A
433MHz - Silver Dimplex Logo .......3000350100RP
DF3033ST Mod E, DCF44GS Mod C, DFG3033 Mod B
2.4GHz - Red Dimplex Logo .........3001070100RP
Remote Control Receiver 14.
DF3033ST Mod 0-D, DCF44GS Mod 0-B, DFG3033 Mod 0-A
433MHz Silver Dimplex Logo . . . . . . . . 3000300200RP
DF3033ST Mod E, DCF44GS Mod C, DFG3033 Mod B
2.4GHz - Red Dimplex Logo . . . . . . . . . 3000880100RP
Wire Harness - Receiver to Logset15. ......2500380200RP
Glass Rock Media16. ...................1400070100RP
9
6
1
2
3
4
5
10
13
7
14
11
14
8
