Fireplace Installation
Option #3
① Wire a dedicated, properly
15 Amp rating. Allow up to eight
(8) feet (2.4 m) of service cable
for connecting power supply to
CAUTION:
cable with ground wire (three
(3) wires total) for the incoming
to meet local and national
electrical codes for rated
power consumption.
② Remove the outer jacket and
strip the individual conductor from
the end.
③ Loosen the screw securing
the junction box cover and
remove the cover.
④ Take the cables out from the
junction box, loosen the two wire
twist nuts and remove the cord
set (Figure 2).
⑤ Route the power supply wire
through the knockout on supplied
alternative junction box cover
and secure with a wire clamp (not
supplied) (Figure 3).
⑥ Connect the black wire (live)
from the unit to the black wire
from power supply (Figure 3).

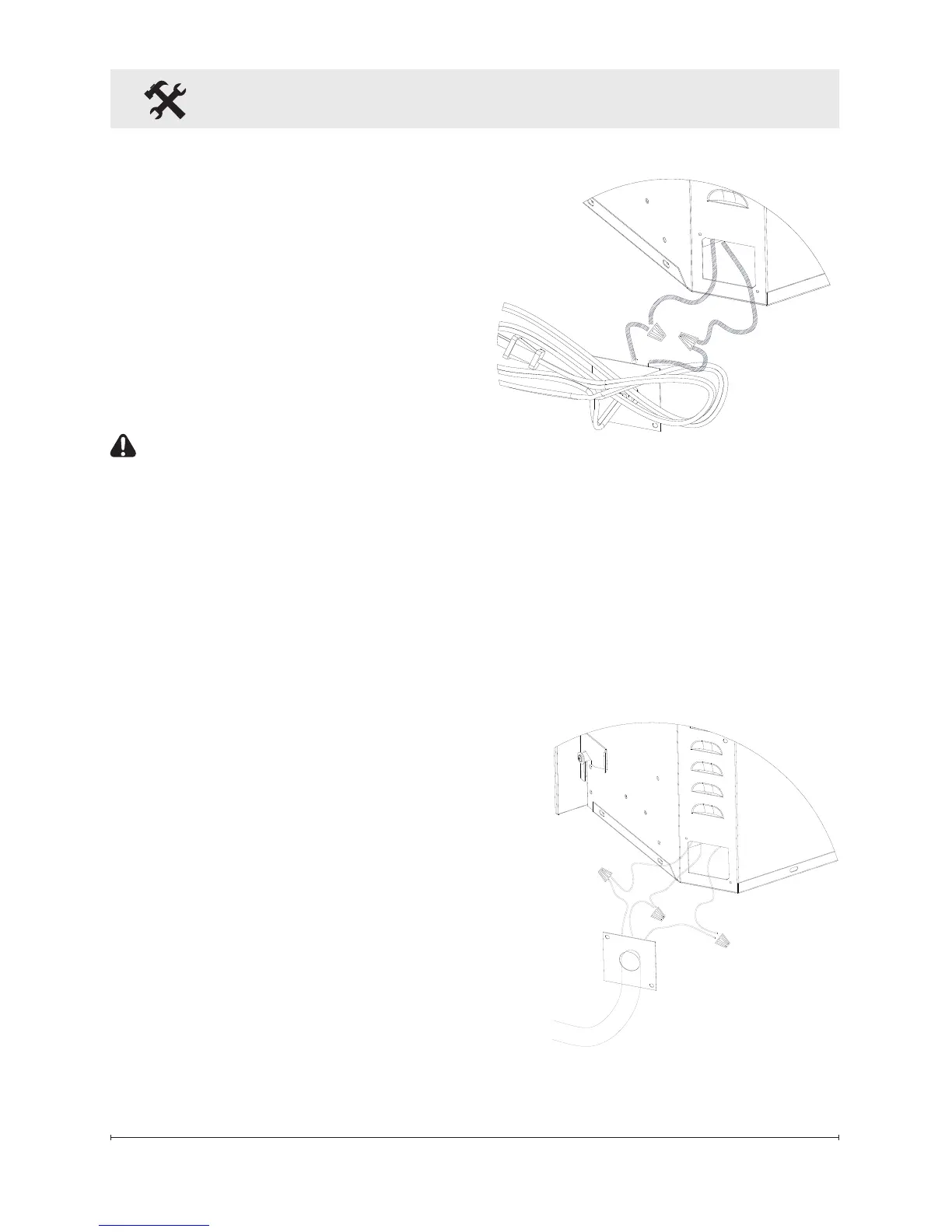

Figure 2
Figure 3
